Why Railway Bogie Structures Can Carry Extreme Loads Without Collapsing

A fully loaded freight train can weigh hundreds or even thousands of tons. Yet beneath every wagon, a relatively compact steel structure continues to absorb vibration, distribute impact, and survive years of continuous operation without collapsing. At first glance, that seems almost impossible. Many people assume railway bogies survive simply because the steel is “thick enough.” In reality, thickness alone would never solve the problem. A railway vehicle experiences constant dynamic loading — acceleration, braking, track irregularities, wheel impacts, curves, and repeated stress cycles that occur millions of times throughout its service life. So why doesn’t the structure underneath eventually break apart? The answer lies in how railway bogie structures are engineered to manage force, fatigue, and load distribution over time.

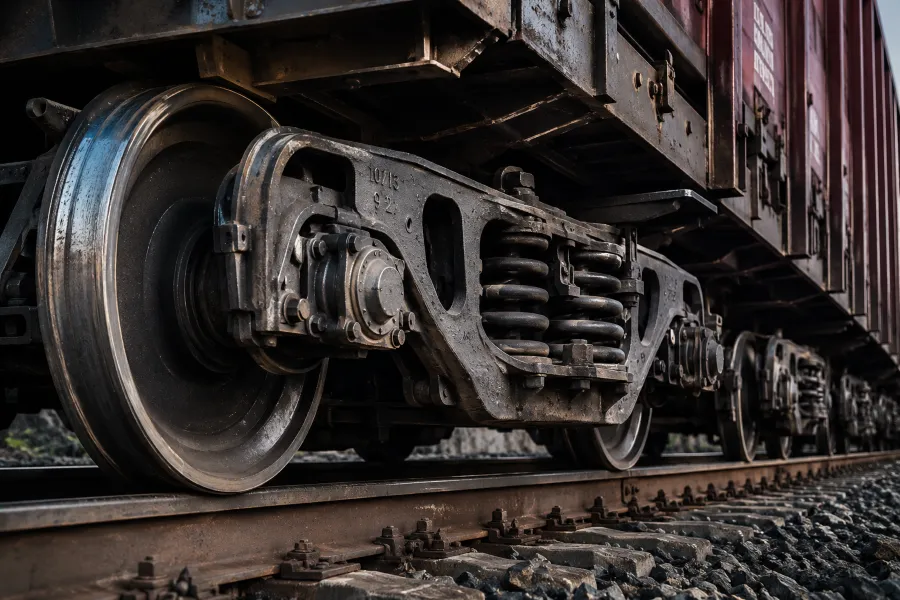

The Railway Bogie Is More Than Just a Steel Frame

A railway bogie is often described as the “foundation” of a rail vehicle, but from an engineering perspective, it behaves more like a complete mechanical support system.

If we simplify its function, the bogie can almost be compared to the lower body of a human being:

• The bolster acts like a backbone, transferring and balancing weight.
• The side frames function like legs, supporting vertical loads.
• The suspension springs behave like muscles and shock absorbers, reducing impact from the track.
• The wheelsets carry the entire vehicle while continuously guiding movement along the rails.

Each component shares stress in a controlled way. That balance is what prevents localized overload and structural failure.

Without this distribution system, even extremely thick steel could eventually crack under repeated dynamic stress.

How Railway Bogie Structures Distribute Heavy Loads

The most important task of a railway bogie structure is not simply “holding weight.” Its real job is distributing force safely.

When a freight wagon is fully loaded, the vertical force does not travel directly into one point. Instead, the load moves through multiple engineered paths:

Car body → bolster → side frame → axle box → wheelset → rail.

This gradual transfer reduces stress concentration inside the structure.

At the same time, the bogie must also handle:

• Lateral forces during cornering
• Longitudinal forces during braking and acceleration
• Impact loads caused by rail joints and uneven track
• Continuous vibration from wheel-rail contact

This is why railway bogie design depends heavily on structural geometry rather than simple material thickness.

In many cases, engineers intentionally shape cast steel side frames to spread stress over wider areas. Rounded transitions, reinforced sections, and balanced load paths all help reduce fatigue damage over time.

Why Fatigue Resistance Matters More Than Pure Strength

One of the biggest misconceptions in heavy industry is the idea that stronger steel automatically creates a stronger structure.

For railway bogies, fatigue resistance is often more important than maximum static strength.

A bogie may survive an extremely heavy load once. The real challenge is surviving millions of repeated loading cycles without microscopic cracks growing into major failures.

This is where engineering precision becomes critical.

Even small defects can become dangerous after years of vibration:

• Internal casting porosity
• Stress concentration zones
• Poor machining accuracy
• Uneven heat treatment
• Surface imperfections

Railway bogie structures are therefore designed not only for load capacity, but also for long-term fatigue life.

That is why railway standards place enormous importance on inspection procedures, including:

• Ultrasonic testing
• Magnetic particle inspection
• Dimensional verification
• Mechanical property testing

In railway engineering, durability is rarely about surviving one extreme moment. It is about surviving ordinary stress repeatedly for decades.

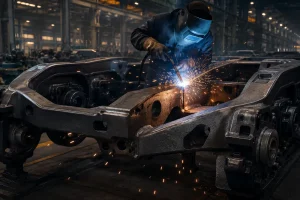

The Role of Cast Steel and Forged Components in Railway Bogies

Modern railway bogies combine both cast and forged components because each manufacturing method offers different mechanical advantages.

Large structural parts such as side frames and bolsters are commonly produced through cast steel processes. Casting allows engineers to create complex geometries capable of distributing force efficiently across the structure.

Meanwhile, heavily stressed rotating components — especially railway wheels and axles — are often forged to improve grain flow and mechanical integrity.

The manufacturing process itself plays a major role in final performance.

For example, railway bogie components typically require:

• Controlled chemical composition
• Heat treatment for balanced hardness and toughness
• Precision machining of critical surfaces
• Strict dimensional tolerances
• Non-destructive testing before delivery

Without these processes, even a well-designed bogie structure could suffer premature fatigue failure.

In other words, railway safety begins long before the train reaches the tracks. It starts inside the foundry, forge shop, and machining workshop.

Why Railway Suspension Systems Are Critical to Structural Survival

Another reason railway bogie structures survive enormous loads is that the load is never allowed to act as a pure rigid force.

The suspension system continuously absorbs and redistributes energy.

When wheels encounter uneven rail surfaces, springs and damping components reduce the direct transmission of impact into the frame. This helps protect both the bogie structure and the rail infrastructure itself.

Without suspension systems, repeated shock loading would dramatically shorten the service life of:

• Side frames
• Bolsters
• Axle boxes
• Wheel bearings
• Rail tracks

In heavy-haul railway applications, suspension performance becomes even more important because axle loads can increase significantly.

The goal is not eliminating force — that is impossible.

The goal is controlling how force moves through the system.

Engineering Precision Is What Keeps Freight Trains Safe

From the outside, a railway bogie may appear to be just a heavy steel assembly underneath a train.

In reality, it is a carefully engineered load-management system designed to survive constant stress, vibration, and fatigue over decades of service.

The reason railway bogie structures do not collapse under extreme loads is not because the steel is indestructible. It is because engineers carefully control how forces are distributed, absorbed, and repeated throughout the entire structure.

Every radius, every weld transition, every machining tolerance, and every heat treatment process contributes to long-term reliability.

That is what keeps modern freight transportation moving safely every day.
