Rail Vehicle Bogie Parts

Railway bogie components are important structural parts. These components support wheel sets, distribute loads, and ensure stable vehicle performance under dynamic operating conditions. These components are widely used in freight wagons, locomotives, and high-speed EMU systems, All railway bogies require high on strength, fatigue resistance, and dimensional accuracy.

Luoyang Fonyo Heavy Industries Co., Ltd. manufactures railway bogie structural components in cast, forged, and welded configurations, depending on different vehicle type and engineering requirements.

Technical Overview of Railway Bogie Components

CategoryFreight Wagon Bogie ComponentsHigh-Speed EMU Bogie Structures
Structural ConceptCast steel frame systemWelded fabricated frame system
Design PriorityLoad capacity & durabilityLightweight & dynamic stability
Main ComponentsSide frame, bolster, axle box housingBogie frame, motor mounting structure
Manufacturing MethodSteel casting + machiningWelding fabrication + CNC machining
Material TypeCast steel / low-alloy steelHigh-strength steel plate
Precision LevelMedium precision requirementsHigh precision & tight tolerances
ApplicationFreight wagons, heavy haul railwaysEMU & high-speed passenger trains

Freight Wagon Bogie

Freight wagon bogies are typically based on cast steel structures, including side frames and bolsters. These components are designed for heavy load capacity, impact resistance, and long service life under medium-speed operation. The structure is rigid and prioritizes durability over weight reduction.

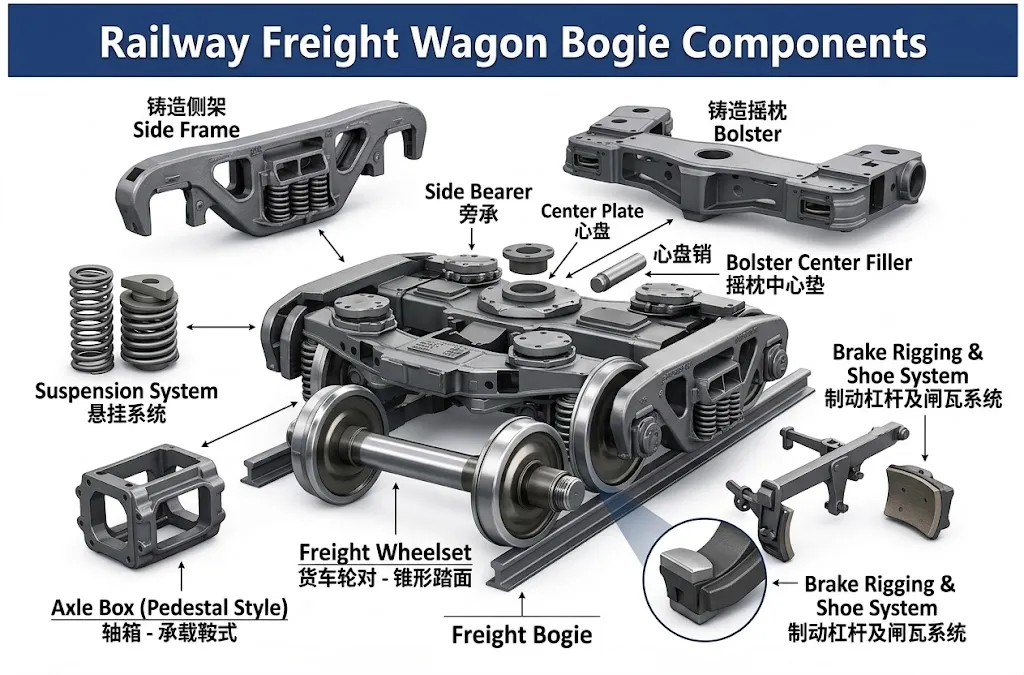

Technical diagram of a three-piece railway freight wagon bogie showing side frame, bolster, and suspension springs.
A comprehensive breakdown of a heavy-duty railway freight wagon bogie, featuring the classic three-piece casting design (side frames and bolster), pedestal-style axle boxes, and specialized freight wheelsets with tapered treads for enhanced stability under high load capacities.

High-Speed EMU Bogie

High-speed EMU bogies use a different structural concept based on welded steel fabrication. These frames are designed to be lighter and more rigid, so that they can improve dynamic stability at high speeds. They also integrate precision-machined interfaces for traction systems, suspension units, and braking components, requiring tighter tolerances and higher manufacturing accuracy.

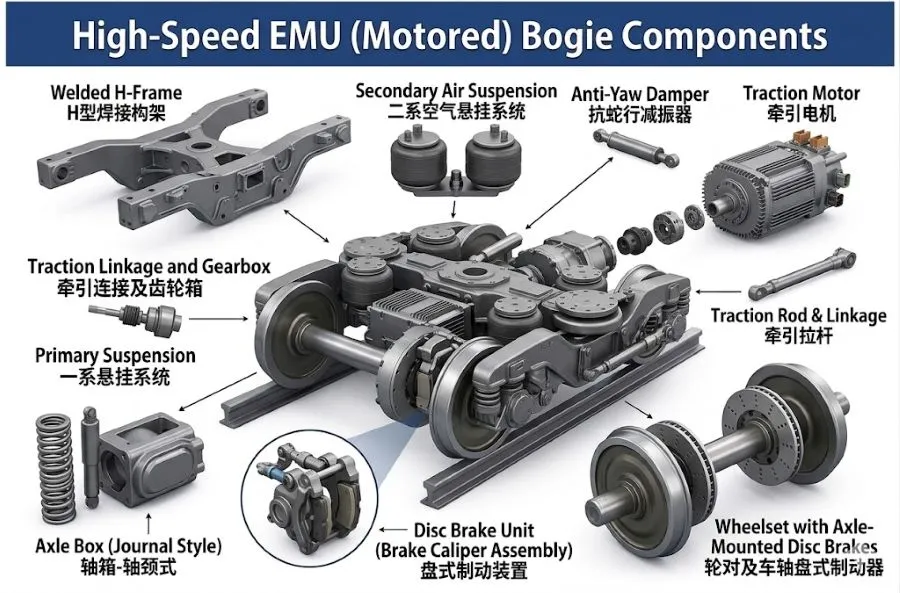

Detailed 3D rendering of a high-speed EMU motored bogie with welded H-frame, air suspension, and disc brakes.
An exploded view of a high-speed EMU (Electric Multiple Unit) motored bogie, highlighting advanced engineering components including the welded H-frame, secondary air suspension, anti-yaw dampers, and integrated traction motor assembly with axle-mounted disc brake units for high-velocity performance.

Manufacturing Capability for Railway Bogie Components

We provide multiple manufacturing processes for railway bogie components, including steel casting for large structural parts, welding fabrication for EMU bogie frames, as well as CNC machining for precision surfaces and assembly interfaces.

All railway components are produced under a controlled process of heat treatment to ensure mechanical strength and fatigue resistance under long-term service conditions.

Quality Control

Our quality control system includes material inspection, ultrasonic testing (UT), magnetic particle testing (MT), dimensional inspection, and mechanical property verification. Each component can be supplied with full inspection reports and material certificates according to international railway standards.

Applications of Railway Bogie

Our railway bogie components are used in freight wagon systems, locomotive bogies, and high-speed EMU platforms. Each solution is customized based on drawings and technical specifications to meet different operational environments and railway standards.
