Crane Wheels vs Railway Wheels How They Differ in Design and Real Applications

1. Why Crane Wheels and Railway Wheels Look Similar but Work Differently

At first glance, crane wheels and railway wheels seem almost identical.

Both are steel wheels running on steel rails.
Both carry heavy loads.
And from a distance, they can even look interchangeable.

That is why many buyers and project engineers initially assume:

“A wheel is just a wheel.”

But in real industrial applications, these two wheel types are designed for completely different operating environments.

A crane wheel is built to survive heavy impact, side thrust, and constant low-speed loading. A railway wheel, on the other hand, is designed for dynamic stability, fatigue resistance, and millions of rolling contact cycles.

They may look similar on the outside, but the engineering philosophy behind them is entirely different.

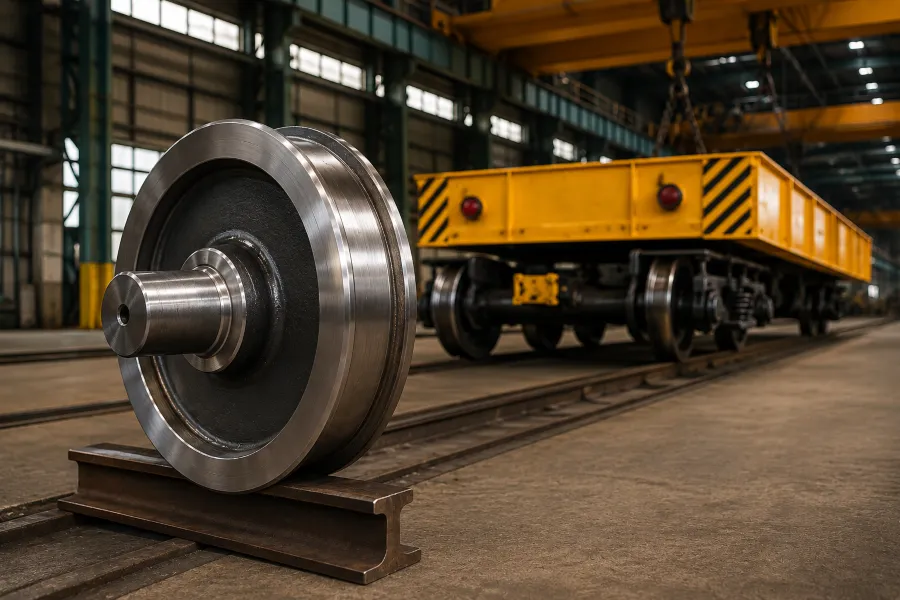

2. How Crane Wheels Are Designed for Heavy Industrial Loads

If you walk into a steel plant, port terminal, or heavy industrial workshop, you will quickly understand why crane wheels are built the way they are.

Their working conditions are extremely demanding.

Crane wheels regularly deal with:

• Heavy vertical loads
• Frequent start-stop movement
• Strong lateral forces
• Rail misalignment
• Continuous flange contact
• Shock loading

Unlike railway vehicles, cranes usually operate over short distances at low speeds. But the pressure concentrated on each wheel can be enormous.

Because of this, crane wheel failures are often related to:

• Severe wear
• Flange damage
• Surface deformation
• Rail biting
• Local cracking

So the design priority for crane wheels is fairly straightforward:

They must survive heavy industrial abuse.

That is why many crane wheels use thicker flanges, higher surface hardness, and sometimes double-flange structures for better guidance and stability.

In crane applications, durability matters more than speed.

3. Why Railway Wheels Focus on Stability and Fatigue Life

Railway wheels operate in a completely different world.

A railway wheel may travel hundreds of thousands of kilometers during its service life while experiencing millions of rolling contact cycles.

At that point, the challenge is no longer simple load carrying.

The real concerns become:

• Rolling contact fatigue
• Thermal cracking
• Dynamic stability
• Wheel profile accuracy
• Long-term wear behavior

Especially at higher speeds, a railway wheel is not just a structural component anymore. It becomes part of the vehicle’s running dynamics.

Even small changes in wheel profile geometry can affect:

• Ride stability
• Rail wear
• Hunting motion
• Noise and vibration
• Curve negotiation performance

This is one reason why railway wheel manufacturing standards are so strict.

The goal is not only to make the wheel strong enough, but also to ensure stable and predictable behavior over a very long operating life.

4. Wheel Profile Differences Between Crane and Railway Wheels

To non-engineers, crane wheels and railway wheels often appear nearly identical.

But the most important difference is usually hidden in the wheel tread profile.

Crane wheels typically use a flatter tread design. Since cranes move slowly, they benefit from having a larger contact area between the wheel and the rail. This helps distribute heavy loads and reduce surface pressure.

Railway wheels are different.

Their tread profile is intentionally designed with conicity.

This conical shape allows the wheelset to self-center on the rail and maintain stable running behavior at speed.

Without proper conicity, railway vehicles would experience unstable movement and excessive flange contact.

That is why railway wheel profiles are carefully controlled under standards such as:

• AAR
• EN 13262
• UIC

In railway systems, even small profile deviations can influence safety and long-term performance.

5. Materials and Heat Treatment Are Also Designed for Different Problems

The material selection philosophy is also very different between crane wheels and railway wheels.

Crane wheels often prioritize:

• Surface hardness
• Wear resistance
• Resistance to plastic deformation

Common materials include alloy steels such as 42CrMo or other forged heavy-duty grades. Surface hardening and induction hardening are frequently used to improve durability under high contact stress.

Railway wheels, however, are designed with a stronger focus on fatigue performance and toughness.

Grades such as ER7, ER8, ER9, and Class C are widely used because railway wheels must resist long-term cyclic stress without cracking.

Instead of maximizing hardness alone, railway wheel heat treatment is carefully balanced to achieve both strength and fatigue resistance.

This becomes especially important under high-speed braking and repeated wheel-rail contact conditions.

6: Can Crane Wheels Be Used in Railway Applications?

Technically, both wheel types roll on rails.

But in practice, they are rarely interchangeable.

A crane wheel used in railway service may suffer from poor dynamic performance and excessive fatigue damage.

A railway wheel used in crane applications may wear rapidly or fail under strong lateral loading conditions.

Even when the dimensions appear similar, the internal engineering targets are completely different.

This is particularly important in railway systems, where wheel performance is directly related to operational safety.

Many railway standards are not only controlling dimensions, but also:

• Fatigue life
• Heat treatment depth
• Internal quality
• Wheel-rail interaction behavior
• Dynamic performance

These are things that cannot be judged simply by looking at the wheel externally.

Final Thoughts

Crane wheels and railway wheels may look similar from the outside, but they are engineered for entirely different purposes.

Crane wheels are built for heavy industrial punishment at low speeds. Railway wheels are built for long-distance dynamic performance and fatigue resistance.

Understanding this difference is important not only for selecting the correct wheel, but also for reducing maintenance costs, improving operational reliability, and ensuring long-term safety.
