UT contro MT: Qual è la differenza nell'ispezione dei componenti ferroviari?

IOn railway manufacturing, tipi diversi di difetti richiedono metodi di ispezione diversi. Durante la fusione si sviluppano alcune discontinuità all'interno del materiale, forgiatura, o trattamento termico, while others appear on the surface after machining or under service stress. Detecting these defects before components enter operation is an important part of railway component inspection. Among the most widely used non-destructive testing methods, UT (Test ad ultrasuoni) and MT (Test delle particelle magnetiche) are commonly applied to railway wheels, getti di acciaio, and forged components. Although both methods are used to identify defects without damaging the material, they are designed for different inspection purposes.

Understanding the difference between UT and MT helps explain how railway manufacturers evaluate both internal integrity and surface condition in demanding railway applications.

Why Railway Component Inspection Matters

Railway components operate under continuous mechanical stress, repeated impact loading, vibrazione, and changing thermal conditions throughout their service life. Components such as railway wheels, getti di acciaio, and forged parts are expected to maintain structural reliability under demanding operating environments for long periods of time.

In molti casi, small defects are not immediately visible during production. Internal discontinuities formed during casting or forging may gradually expand under cyclic loading, while surface cracks caused by machining, trattamento termico, or service stress can eventually lead to fatigue-related failures.

Per questo motivo, railway component inspection is not only about meeting dimensional or material requirements. It is also an important part of evaluating internal integrity, condizione della superficie, e affidabilità operativa a lungo termine.

Different inspection methods are designed to detect different types of defects. Nella produzione ferroviaria, UT inspection is commonly used to evaluate internal soundness, while MT inspection is more effective for identifying surface and near-surface cracking. Combining both methods allows manufacturers to perform a more comprehensive inspection of critical railway components.

UT in Railway Component Inspection

UT, or Ultrasonic Testing, uses high-frequency sound waves to inspect the internal condition of a material.

Durante l'ispezione, ultrasonic waves travel through the component. If there is an internal discontinuity such as a crack, inclusion, cavità di ritiro, or lamination, part of the sound wave reflects back to the equipment and indicates the location of the defect.

Nella produzione ferroviaria, UT is mainly used for detecting internal flaws that cannot be seen from the surface.

Typical defects detected by UT include:

• Crepe interne
• Inclusioni
• Cavità da ritiro
• Laminations
• Subsurface discontinuities

UT is widely used for:

• Ruote ferroviarie
• Forged shafts
• Assi
• Thick-section forged components
• Large steel components

For railway wheels in particular, internal soundness is critical because wheels operate under repeated cyclic loading and wheel-rail contact stress throughout their service life.

Even relatively small internal defects may gradually expand under fatigue conditions.

MT Inspection for Railway Wheels and Forgings

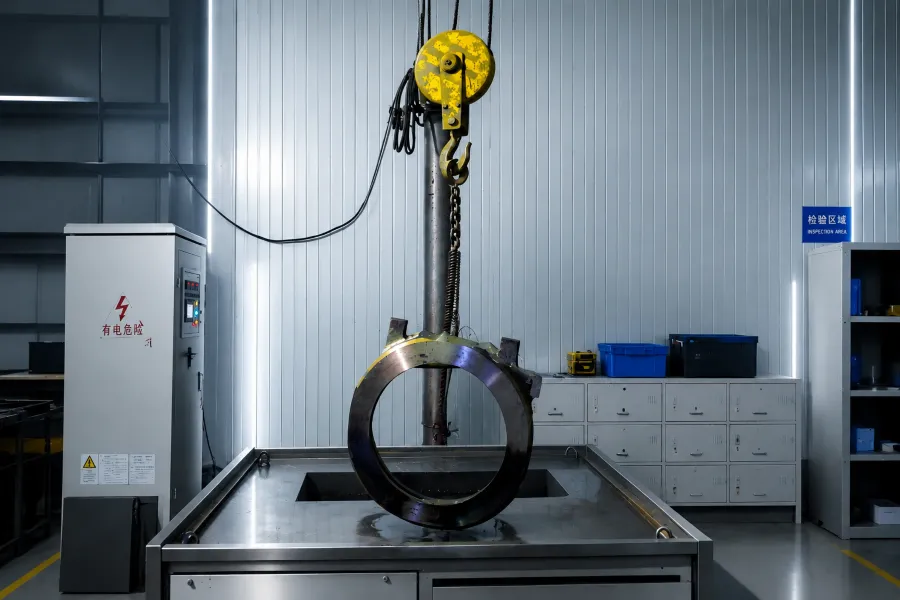

MT, or Magnetic Particle Testing, is mainly used to detect surface and near-surface cracks in ferromagnetic materials.

Durante l'ispezione, the component is magnetized and magnetic particles are applied to the surface. If a crack exists, magnetic leakage forms around the discontinuity, causing the particles to gather and reveal the defect location.

Compared with UT, MT is much more sensitive to small surface cracks.

Typical defects detected by MT include:

• Crepe superficiali
• Grinding cracks
• Heat treatment cracks
• Near-surface discontinuities
• Fatigue crack initiation areas

Nelle applicazioni ferroviarie, MT è comunemente usato per:

• Wheel tread inspection
• Wheel flange inspection
• Forged surfaces
• Machined areas
• Weld transition zones

For components exposed to repeated impact and contact stress, surface crack detection is especially important because fatigue failures often begin at the material surface.

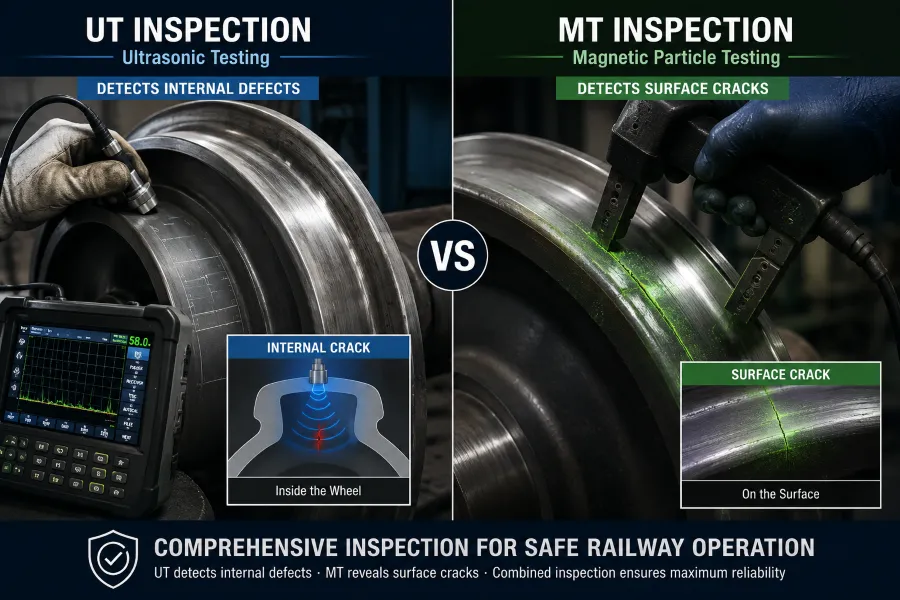

UT vs MT in Railway Component Inspection

Although both methods belong to NDT inspection, their functions are quite different.

In practical railway manufacturing, UT and MT are not competing methods. They are complementary inspection techniques.

Why Railway Components Often Require Both UT and MT

One common misunderstanding is that a single inspection method is enough.

In realtà, railway components usually require multiple inspection methods because internal defects and surface defects behave differently during service.

Per esempio:

• UT can effectively detect internal shrinkage or subsurface cracking inside a forged wheel.
• MT can reveal very small surface cracks caused by machining, macinazione, o trattamento termico.

A component may pass UT inspection while still containing surface defects detectable only by MT. Allo stesso modo, a component with a clean surface may still contain internal discontinuities that only UT can identify.

Per componenti ferroviari critici, combining both inspection methods provides a much more reliable evaluation of structural integrity.

Railway Components Inspection Applications

Different railway products require different inspection priorities.

Ruote ferroviarie

Railway wheels are exposed to continuous rolling contact fatigue, calore in frenata, and impact loading.

In wheel manufacturing:

• UT is commonly used to inspect internal soundness.
• MT is used to detect tread and flange surface cracks.

Both inspections are important after heat treatment and machining processes.

Railway Steel Castings

Steel castings may contain shrinkage, porosità, or internal discontinuities formed during solidification.

For cast components:

• UT helps evaluate internal integrity.
• MT detects surface discontinuities after machining.

Some complex castings may also require RT (Test radiografici) depending on customer specifications.

Forged Railway Components

Forged parts generally have better internal density than castings, but they can still develop laps, pieghe, or cracking during forging and heat treatment.

For forged railway components:

• UT verifies internal quality.
• MT helps identify surface cracking after machining or thermal processing.

Quality Control Beyond Inspection

NDT inspection is only one part of railway component quality control.

Reliable manufacturing also depends on:

• Material control
• Heat treatment consistency
• Precisione dimensionale

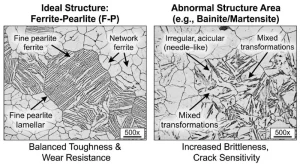

• Analisi metallografica
• Hardness verification
• Process traceability

Integrated Manufacturing and Inspection

A Industrie pesanti di Luoyang Fonyo, NDT railway component inspection is integrated into our processo di produzione per ruote ferroviarie, getti di acciaio, and forged railway components.

Our capabilities cover forging, fusione, lavorazione, trattamento termico, and non-destructive testing for railway and heavy industrial applications. We support custom manufacturing based on customer drawings, specifiche tecniche, or samples.

For railway components operating under demanding service conditions, reliable inspection and stable manufacturing processes remain essential to long-term operational safety and performance.

If you have drawings or technical requirements for custom railway components, our engineering and manufacturing team can support production and inspection according to project specifications.
