Hvorfor lav-carbon støbt stål yder bedre i svejsede jernbanekomponenter

I tunge jernbanekonstruktioner, svejseproblemer starter sjældent ved selve svejsemaskinen. I mange tilfælde, det virkelige problem begynder meget tidligere - med materialevalget. Når store støbte stålkomponenter svejses ind i jernbanesamlinger, ingeniører tænker ikke kun på statisk styrke. De skal også overveje svejsbarheden, revnefølsomhed, resterende stress, træthedsmodstand, og hvordan strukturen vil opføre sig efter år med cyklisk belastning og hjul-skinnepåvirkning. Det er en af ​​hovedårsagerne til, at støbestål med lavt kulstofindhold fortsat er meget udbredt i svejsede jernbanekomponenter. Fra bogiestrukturer og siderammer til koblingsstøttestøbninger og understelsbeslag, støbestål med lavt kulstofindhold giver en praktisk ingeniørmæssig balance: stærk nok til tung jernbanetrafik, men stabil nok til pålidelig svejsning og langsigtet træthedsydelse.

Hvorfor støbt stål med lavt kulstofindhold er nemmere at svejse

The biggest advantage of low-carbon cast steel is not simply that it is “softer.” What matters more is how the material behaves during the welding thermal cycle.

In cast steel, higher carbon content increases the likelihood of forming hard and brittle microstructures inside the heat-affected zone (HAZ). When the weld cools too quickly, localized hard zones can develop near the weld area, significantly increasing crack sensitivity.

Low-carbon cast steel helps reduce several common welding problems:

• Cold cracking
• Hydrogen-induced cracking
• Excessive hardness in the HAZ
• Restspændingskoncentration
• Loss of impact toughness near the weld

For welded railway structures that operate under continuous vibration and cyclic impact loading, these are not minor fabrication concerns. They directly affect service reliability and fatigue life.

That is why many railway manufacturers prefer low-carbon cast steel for welded structural components, especially where multi-pass welding or future repair welding may be required.

Hvorfor lav-carbon støbt stål yder bedre i svejsede jernbanekomponenter

Railway structures operate under far harsher conditions than most industrial welded assemblies. A heavy freight bogie or underframe component may experience:

• Continuous wheel-rail vibration
• Repeated shock loads at switches and crossings
• Changing axle loads
• Thermal expansion and contraction
• Long-haul cyclic fatigue stress

På grund af disse forhold, railway engineers often prefer materials that are more forgiving during both fabrication and long-term maintenance.

In heavy railway fabrication, the strongest material is not always the best material. A casting that offers slightly higher hardness but creates constant welding problems can quickly become an expensive production issue.

Low-carbon cast steel helps avoid many of those problems.

Low-Carbon Cast Steel Reduces Crack Sensitivity

Large railway castings often contain thick sections, complex geometries, and uneven cooling zones. Under svejsning, those areas naturally develop internal stress.

With higher-carbon cast steel, localized hardening near the weld becomes much more severe, increasing the risk of crack initiation inside the HAZ.

Low-carbon cast steel lowers that sensitivity and provides a more stable weld structure.

This is especially important for welded railway components such as:

• Bogie rammer
• Railway side frames
• Brake support castings
• Coupler support components
• Heavy structural railway brackets

I disse applikationer, surviving millions of load cycles matters far more than achieving maximum hardness.

Low-Carbon Cast Steel Improves Fatigue Performance

I jernbaneteknik, fatigue failure is often a greater concern than single-event overload failure.

A welded component may survive one heavy impact but still fail years later if residual stress, weld hardness, or brittle zones gradually initiate cracking.

Low-carbon cast steel generally provides:

• Better ductility
• More even stress distribution
• Improved toughness near the weld
• Lower brittle fracture risk
• More stable fatigue behavior under cyclic loading

For welded railway castings, these characteristics are critical for long-term operational durability.

This becomes especially important in freight rail systems where components experience continuous wheel-rail impact, overload conditions, and long service intervals between maintenance cycles.

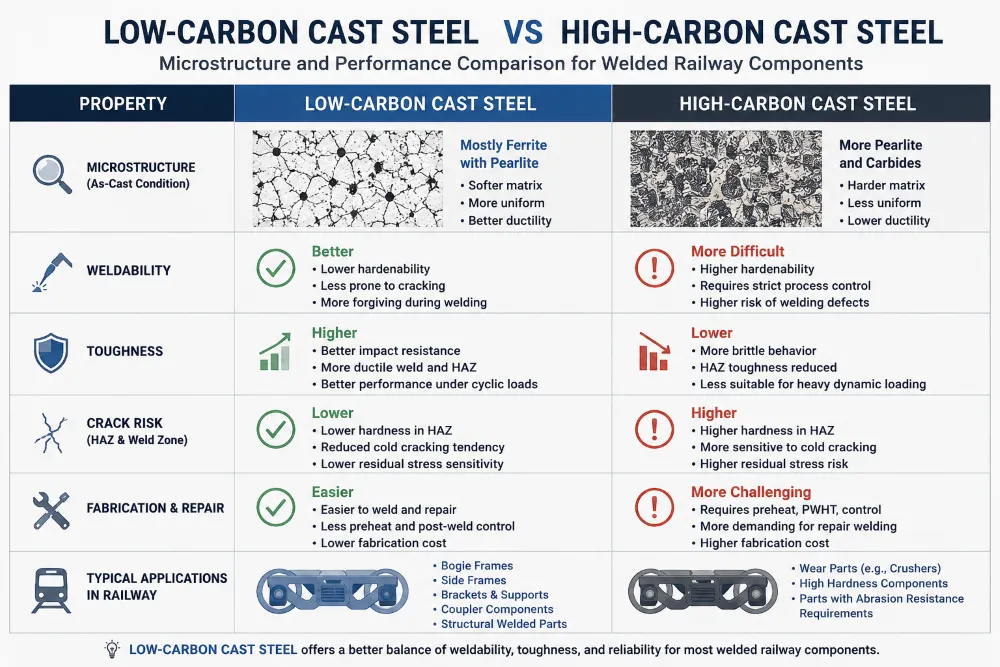

Why High-Carbon Cast Steel Is Harder to Weld

Higher carbon content can improve hardness and tensile strength, but it also creates significant manufacturing challenges.

When welding high-carbon cast steel, fabricators usually need additional process controls, inklusive:

• Preheating
• Strict interpass temperature control
• Post-weld heat treatment
• Controlled cooling rates
• Specialized filler materials

Without these controls, cracking risk increases sharply.

In real railway manufacturing environments, this often leads to:

• Longer production cycles
• Higher repair costs
• Lower welding efficiency
• Increased rejection rates
• More difficult field maintenance

A material that looks excellent on paper may still perform poorly in actual railway production if welding stability becomes difficult to control.

I mange tilfælde, sacrificing a small amount of hardness results in a much more reliable welded structure overall.

How Railway Foundries Improve Low-Carbon Cast Steel Performance

Producing reliable low-carbon cast steel railway components involves much more than simply lowering carbon content.

Experienced railway foundries focus on controlling the entire casting and heat treatment process to ensure both weldability and structural performance.

Stable Chemical Composition

Careful control of carbon, mangan, svovl, and phosphorus helps maintain consistent welding behavior and reduces the risk of internal defects.

Stable chemistry is especially important in large railway castings where section thickness varies significantly.

Internal Soundness

Krympehulrum, porøsitet, and non-metallic inclusions can weaken welded areas and reduce fatigue life.

For structural railway castings, internal quality is just as important as external dimensions.

Good casting soundness improves:

• Weld reliability
• Træthedsmodstand
• Structural stability
• Service life consistency

Kontrolleret varmebehandling

Proper normalizing or quenching and tempering processes help balance:

• Mekanisk styrke
• Sejhed
• Svejsbarhed
• Dimensionsstabilitet

I jernbaneproduktion, achieving balanced performance is usually more important than maximizing a single mechanical property.

Proper Weld Preparation

Large railway castings often require machining and edge preparation before welding.

Good weld preparation helps:

• Reduce stress concentration
• Improve weld penetration
• Control distortion
• Increase welding consistency

For heavy welded railway structures, preparation quality can significantly influence long-term fatigue performance.

Why Low-Carbon Cast Steel Still Matters in Railway Manufacturing

Modern railway systems continue demanding heavier axle loads, længere levetid, and reduced maintenance downtime.

Som et resultat, welded railway structures must deliver not only strength, but also stable manufacturability and reliable long-term fatigue performance.

Støbestål med lavt kulstofindhold forbliver meget udbredt i jernbanefremstilling, fordi det giver en praktisk kombination af:

• God svejsbarhed
• Stabil fremstillingsydelse
• Bedre sejhed
• Lavere revnefølsomhed
• Pålidelig træthedsmodstand under cyklisk belastning

In heavy railway fabrication, det bedste materiale er sjældent det hårdeste. Oftere, det er materialet, der svejser konsekvent, overlever langvarig servicestress, og fortsætter med at fungere pålideligt efter mange års vedligeholdelse og reparationssvejsning.

Til mange svejsede jernbanekomponenter, denne balance peger stadig på støbestål med lavt kulstofindhold.

PåLuoyang Fonyo Heavy Industries, vi fremstiller jernbanestøbte stålkomponenter designet til krævende svejsede jernbanekonstruktioner, inklusive bogie systemer, strukturelle beslag, og kraftige skinnesamlinger. Ved at kombinere kontrollerede støbeprocesser, stabile materialeegenskaber, og streng kvalitetskontrol, vi hjælper med at sikre pålidelig svejsbarhed og langsigtet træthedsydelse til jernbaneanvendelser.
