Manganese in Railway Cast Steel: Properties and Role

Manganese in steel is one of the most important alloying elements used in modern metallurgy. It plays a key role in improving strength, صلابة, hardenability, and hot-working performance. In industrial applications, especially in railway cast steel components, manganese helps ensure stable mechanical properties under heavy loads, اهتزاز, and long-term fatigue conditions. Understanding the role of manganese in steel is essential for selecting suitable materials for engineering and railway applications.

What Is Manganese in Steel?

Manganese (Manganese) is an alloying element added during steelmaking to improve both chemical stability and mechanical performance.

In steel, manganese is mainly used for:

• Deoxidation of molten steel
• Sulfur control (prevention of hot cracking)
• Solid-solution strengthening
• Improving hardenability during heat treatment

These functions make manganese essential in both cast and forged steels used in industrial and railway engineering.

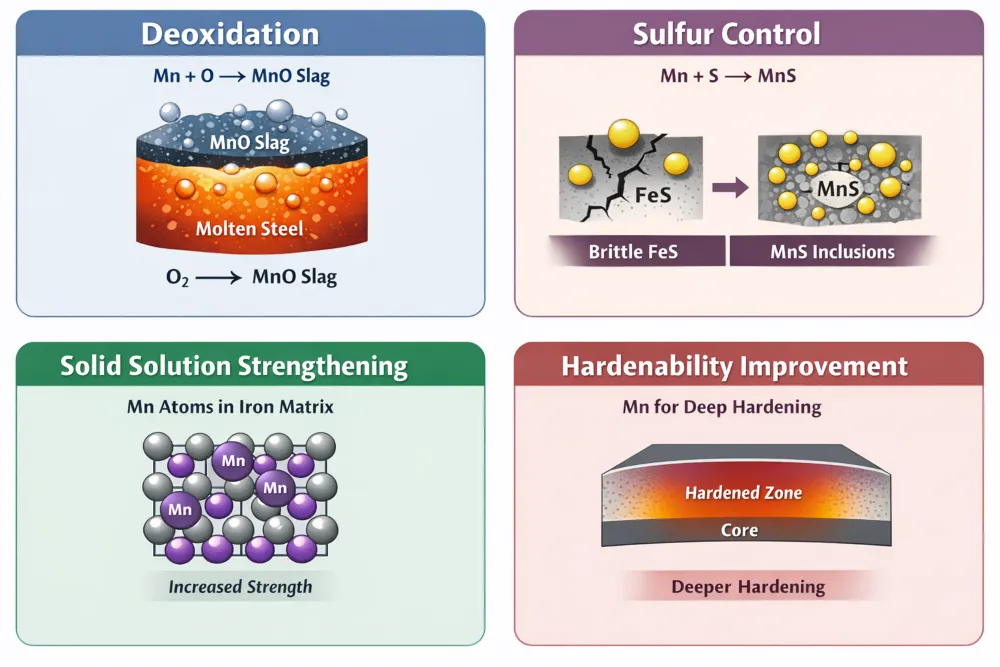

Role of Manganese in Steel Metallurgy

Manganese improves steel performance in several important ways:

1. Deoxidation

It reduces oxygen content in molten steel, improving cleanliness and reducing internal defects such as porosity.

2. Sulfur Control

Manganese combines with sulfur to form manganese sulfide (MnS), preventing brittle iron sulfide (FeS) and reducing hot shortness during forging and rolling.

3. Strengthening Effect

It provides solid-solution strengthening, improving tensile strength and wear resistance.

4. Hardenability Improvement

Manganese increases the depth and uniformity of hardness during heat treatment, which is important for structural components.

Manganese in Cast Steel Applications

في يلقي الصلب, manganese is widely used to stabilize mechanical properties and improve casting quality.

Typical applications include:

• Structural cast steel components
• Heavy machinery parts
• Railway cast steel components

Manganese helps reduce casting defects and improves overall reliability in large-section steel parts.

Typical Manganese Content in Steel Grades

In most engineering steels, manganese content is typically controlled between 0.5% و 1.5%, depending on required strength and processing conditions.

High Manganese Steel (Hadfield Steel)

High manganese steel refers to steels containing approximately 10%–14% Mn.

A well-known example is:

Hadfield Steel

Key properties:

• Extremely high impact toughness
• Strong work-hardening capability
• Excellent wear resistance under heavy impact

لكن, it is not commonly used for structural steel components due to:

• Poor machinability
• Difficult casting and processing
• High production cost

It is mainly used for extreme wear applications such as crusher parts and impact-resistant components.

Low vs Medium vs High Manganese Steel

In most industrial applications, medium manganese steel is the most widely used category.

Manganese in Railway Cast Steel Applications

In railway engineering, manganese plays an important supporting role in مكونات الصلب المصبوب مثل:

• Bogie components
• Axle box housings
• Gearbox housings
• Structural railway cast steel parts

These components must withstand:

• High dynamic and static loads
• Continuous vibration
• Fatigue and impact stress

Manganese contributes to improved:

• Strength stability
• صلابة
• Heat treatment response
• Long-term service reliability

لكن, manganese is only one part of a complete material system that includes carbon, السيليكون, الكروم, and other alloying elements.

Manufacturer of Cast Steel Components.

Manganese in steel is a critical alloying element that significantly improves mechanical properties, processing behavior, and structural stability.

While it is not the only factor determining steel performance, it plays an essential role in both cast and forged steels, especially in demanding applications such as railway cast steel components.
