알루미늄 3D 프린팅과 투자 주조: 복잡한 알루미늄 부품 제조에 대한 엔지니어의 관점

About ten years ago, we produced a complex aluminum housing using investment casting. At that time, metal additive manufacturing was not widely available in industrial production, and precision casting was often the most practical solution for manufacturing complex aluminum parts. 오늘, the comparison between aluminum 3D printing vs investment casting has become increasingly relevant in modern engineering. The component we manufactured featured a complicated internal structure, multiple mounting surfaces, and relatively thin walls. 엔지니어링 관점에서, investment casting allowed us to achieve the required geometry while maintaining acceptable mechanical strength, although the process itself required significant preparation and tooling effort.

Before Metal 3D Printing: Traditional Investment Casting for Complex Aluminum Parts

Before the rise of metal additive manufacturing, complex aluminum components were commonly produced through precision casting. The typical process included:

• tooling and mold design
• wax pattern production
• ceramic shell building
• metal pouring
• shell removal and finishing

For aluminum castings, alloys similar to those used in modern additive manufacturing—such as AlSi10Mg—were already widely used because of their good castability and mechanical properties.

From a manufacturing standpoint, investment casting offered several advantages:

• relatively high dimensional accuracy
• ability to produce complex external shapes
• suitable for medium-volume production

하지만, the process also involved a significant amount of preparation before the first part could be produced.

Limitations of Investment Casting in Complex Aluminum Component Production

In practical production, the biggest challenge was not the casting itself, 하지만 tooling and preparation stage.

For complex aluminum housings, tooling development often required several weeks. If the design needed modification after the first samples, new tooling or adjustments might be necessary. This added both time and cost to the development process.

Another limitation involved internal geometry. While investment casting can produce complex shapes, there are still restrictions related to:

• mold extraction
• core design
• minimum wall thickness
• internal cavities

Some internal channels or closed structures were simply not practical to manufacture through casting.

These limitations were acceptable in the past, because there were few alternative manufacturing methods capable of producing such complex parts.

How Aluminum 3D Printing (Selective Laser Melting) Works for Aluminum Components

With the development of metal additive manufacturing, aluminum components can now be produced directly from digital models.

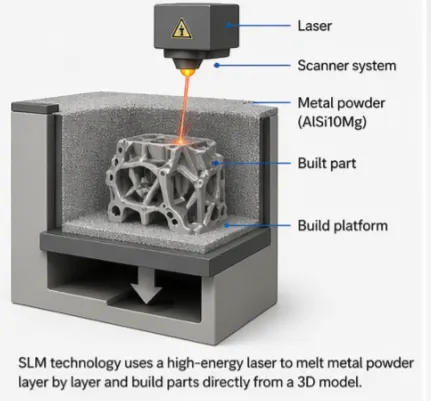

Processes like Selective Laser Melting build parts layer by layer by melting metal powder using a high-energy laser. One of the most commonly used materials is AlSi10Mg, which offers a good balance of strength, printability, and corrosion resistance.

엔지니어링 관점에서, aluminum 3D printing introduces several important advantages.

Design Freedom in Aluminum Additive Manufacturing Compared to Casting

One of the most noticeable differences is design freedom.

When designing cast parts, engineers must consider mold removal and casting flow. These factors often require compromises in geometry.

With metal 3D printing, those constraints are greatly reduced.

It becomes possible to design:

• internal cooling channels
• lattice or lightweight structures
• topology-optimized geometries
• complex internal cavities

These structures are extremely difficult—or sometimes impossible—to manufacture using traditional casting.

For industries such as aerospace and advanced mechanical systems, this design flexibility can significantly improve product performance.

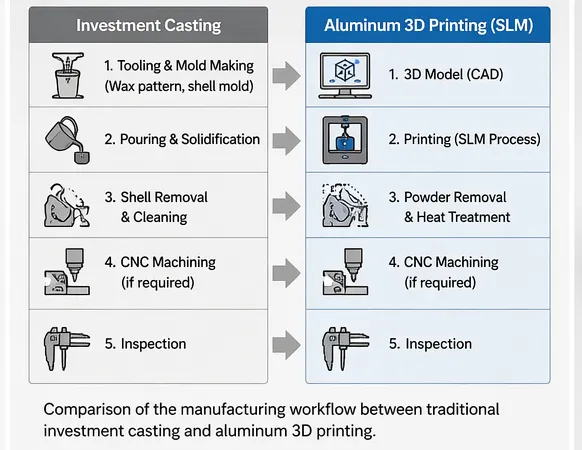

Development Speed: Aluminum 3D Printing vs Investment Casting Workflow

Another major difference is development speed.

For investment casting, the timeline often includes:

• mold design
• mold manufacturing
• sample casting
• process adjustments

This process can take several weeks before a qualified part is produced.

With aluminum 3D printing, the workflow is much simpler:

CAD model → printing → post-processing.

Prototype components can often be produced within a few days. This makes additive manufacturing particularly useful for:

• product development
• design validation
• small-batch production

For engineering teams working on new equipment or specialized components, this time advantage can be extremely valuable.

Accuracy, Tolerances, and Surface Finish Comparison

From a dimensional accuracy perspective, both processes can achieve good results.

Typical tolerances are approximately:

하지만, most functional components still require CNC 가공 for critical surfaces, regardless of the manufacturing method.

Surface finish is another difference. Cast parts often have smoother as-cast surfaces, while metal 3D printed parts typically require additional finishing such as:

• shot blasting
• 가공
• polishing

Cost Comparison Between Aluminum 3D Printing and Investment Casting

Cost is where the two technologies differ significantly depending on production volume.

Investment casting requires upfront tooling costs, but once the mold is available, the cost per part decreases significantly for larger production runs.

Metal 3D printing, 반면에, eliminates tooling costs but has higher material and machine costs per part.

From an engineering and procurement perspective, the general guideline is:

• small quantities or prototypes → aluminum 3D printing
• medium to large production runs → investment casting

This balance between tooling cost and production efficiency determines which process is more economical.

When to Use Aluminum 3D Printing vs Investment Casting

In practice, aluminum additive manufacturing becomes especially attractive when:

• part geometry is extremely complex
• internal channels or lightweight structures are required
• production volume is low
• development speed is critical

For these scenarios, the flexibility of metal 3D printing can significantly simplify manufacturing.

Final Engineering Perspective: Choosing the Right Manufacturing Process

Looking back at aluminum housings produced more than a decade ago, investment casting was often the most practical and reliable manufacturing solution available at that time.

오늘, advances in metal additive manufacturing have significantly expanded the design and production possibilities for aluminum components.

For complex geometries, aluminum 3D printing using alloys such as AlSi10Mg can enable faster prototyping, greater design freedom, and cost-efficient small-batch production.

Both investment casting and additive manufacturing continue to play important roles in modern engineering. The key lies in selecting the most suitable process based on design complexity, production volume, performance requirements, and project timeline.

~에 뤄양포요중공업(낙양포뇨중공업), 주식회사. （www.railwaypart.com), we apply these manufacturing principles across a wide range of 철도 바퀴, 철도 주물, and precision railway components, helping customers select the most suitable process based on performance and application requirements.
