La guida completa ai getti ferroviari

I getti ferroviari sono componenti strutturali critici utilizzati nelle locomotive, carri merci, treni passeggeri, e sistemi di infrastruttura ferroviaria. A differenza dei getti industriali generali, railway cast steel parts must operate under continuous dynamic loads, high impact forces, long fatigue cycles, and extreme safety requirements.

In real railway engineering practice, a single casting failure can affect not only equipment performance but also operational safety and maintenance cost. Per questo motivo, railway castings are designed, fabbricato, and inspected under strict international standards such as EN, AAR, TBC/T, and customer-specific technical specifications.

At Luoyang Fonyo Heavy Industry Co., Ltd., we have been involved in the production of railway castings for bogie systems, braking structures, and heavy-duty steel components using processes such as fusione in sabbia di resina, water glass casting, V-process casting, E lost foam casting. Based on real manufacturing experience, this guide explains how railway castings are designed, prodotto, and qualified for service.

What Are Railway Castings?

Railway castings refer to metal components formed by pouring molten steel into a specially designed mold, which solidifies into the required geometry. Dopo il casting, the components undergo heat treatment, lavorazione, and inspection before being assembled into railway systems.

Compared with forging and fabrication, casting is especially suitable for complex structural parts with large dimensions, where both strength and shape complexity are required.

Nelle applicazioni ferroviarie, cast steel is widely used because it provides:

• High structural strength
• Eccellente resistenza alla fatica
• Good impact toughness
• Cost efficiency for large components

Typical railway casting weights range from several kilograms to several tons, depending on whether the part is a bracket or a full bogie structure.

Engineering Role of Railway Castings

Dal punto di vista ingegneristico, railway castings are not just “parts”—they are load-bearing structural safety components.

Per esempio:

• Nell'a carrello del carro merci, IL side frame and bolster carry vertical loads from the car body.
• In braking systems, cast brackets transmit braking force and thermal stress.
• In coupler systems, cast bodies handle longitudinal impact forces during acceleration and emergency braking.

Because these loads are repetitive and long-term, railway castings must be designed with fatigue life in mind rather than only static strength.

Common Types of Railway Castings

Railway castings can be divided into four main categories based on their functional application.

1. Bogie Cast Components

Bogie systems are the most casting-intensive part of railway rolling stock.

Typical castings include:

• Cornici laterali
• Supporti
• Brake beam supports
• Suspension brackets

These components form the structural backbone of freight and passenger bogies. Their design must ensure load distribution, smorzamento delle vibrazioni, e resistenza alla fatica.

In real engineering practice, bogie castings are often optimized using finite element analysis (FEA) to reduce stress concentration zones.

2. Axle Box and Bearing Housing Castings

Alloggiamenti della scatola dell'asse protect wheel bearings and maintain alignment between the sala montata and bogie frame.

Key requirements include:

• High dimensional accuracy
• Excellent sealing performance
• Resistance to impact loads
• Stability under thermal variation

Even small casting defects in axle box housings can lead to premature bearing failure, making quality control extremely critical.

3. Brake System Castings

Railway braking systems operate under extreme frictional heat and mechanical stress.

Common cast parts include:

• Brake caliper bodies
• Brake support brackets
• Mounting housings

These components must maintain structural integrity even at elevated temperatures generated during repeated braking cycles.

4. Coupler and Draft Gear Castings

Couplers are among the most safety-critical railway components.

Cast parts include:

• Coupler bodies
• Knuckles
• Draft gear housings

These components must withstand sudden impact loads and tensile forces, especially during train coupling and emergency braking events.

Material toughness and internal defect control are essential here.

Railway Casting Manufacturing Processes

The performance of railway castings depends heavily on the manufacturing process. Different processes are selected based on size, complessità, e requisiti prestazionali.

Furan Colata in sabbia di resina

Furan resin sand casting is widely used for large railway components.

Advantages include:

• High dimensional stability
• Good surface quality
• Suitable for large and heavy castings
• Strong mechanical performance

This process is commonly used for bogie frames, rafforza, and structural housings.

Colata in sabbia di vetro d'acqua

Water glass casting is widely used for medium-sized railway components.

Key advantages:

• Cost-effective production
• Stable mold performance
• Suitable for structural steel parts

Tuttavia, surface finish and dimensional accuracy are slightly lower than resin sand casting.

Colata in schiuma persa

Colata a schiuma persa is suitable for complex geometries.

It allows:

• Reduced machining allowance
• Integration of complex internal structures
• Lower assembly complexity

It is often used in custom-designed railway components.

V-Process Casting

Vacuum molding (V-process) is used for large and precision castings.

Benefits include:

• Excellent surface finish
• Low porosity
• High dimensional consistency

This method is suitable for high-end railway structural components.

Materials Used in Railway Castings

Material selection determines the long-term performance of railway components.

Cast Carbon Steel

Carbon steel is widely used due to its balance of cost and performance.

It is suitable for:

• Bogie frames
• Structural supports
• General railway components

Typical grades include medium and high carbon steel variants.

Alloy Cast Steel

Alloy steels are used when higher performance is required.

Benefits include:

• Higher strength
• Improved fatigue resistance
• Better hardenability
• Enhanced wear resistance

These materials are often used in couplers and heavily loaded components.

Manganese Steel

High manganese steel is used in impact and wear-resistant applications.

Its key property is work hardening, meaning the surface becomes harder under impact.

Trattamento termico dei getti ferroviari

Heat treatment is a critical step that directly affects mechanical performance.

Common processes include:

• Normalizzazione
• Quenching and tempering
• Stress relieving

These processes improve:

• Yield strength
• Impact toughness
• Resistenza alla fatica
• Internal stress distribution

Without proper heat treatment, even well-cast components may fail prematurely under cyclic loading conditions.

Machining of Railway Cast Components

Dopo la fusione e il trattamento termico, most railway components require CNC machining.

Typical machining operations include:

• Milling of mounting surfaces
• Turning of cylindrical interfaces
• Drilling and tapping of assembly holes
• Precision boring of bearing seats

Nell'ingegneria ferroviaria, machining accuracy is critical because misalignment can cause:

• Uneven load distribution
• Accelerated wear
• Increased vibration

Modern manufacturers integrate casting and machining into a complete production system to ensure dimensional consistency.

Controllo e ispezione di qualità

Railway castings are safety-critical components, so quality assurance is strictly controlled.

Chemical Analysis for Railway Castings

Spectrometric analysis ensures correct chemical composition of molten steel before casting.

Prove meccaniche for Railway Castings

Mechanical properties are verified through:

• Tensile strength tests
• Impact tests
• Hardness tests

These tests confirm whether the material meets design requirements.

Prove non distruttive (NDT) for Railway Castings

NDT is essential for detecting internal defects:

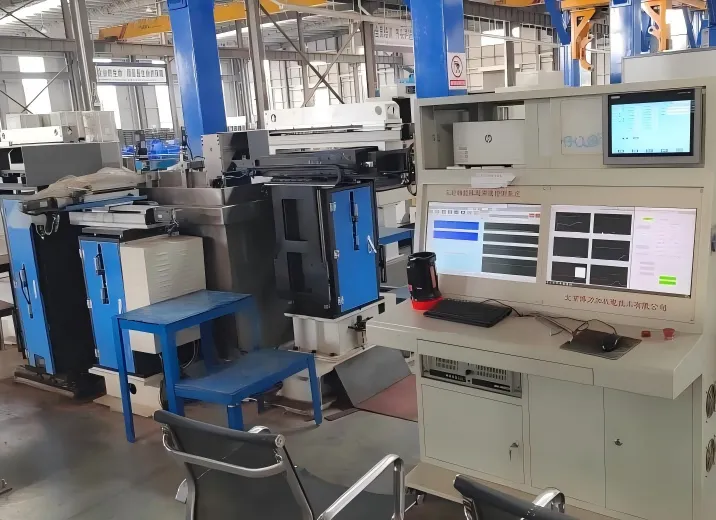

• Test ad ultrasuoni (UT)
• Test con particelle magnetiche (MT)
• Esame radiografico (RT)

These methods ensure there are no hidden cracks, shrinkage, or porosity.

Controllo dimensionale for Railway Castings

Macchine di misura a coordinate (CMM) are used to verify critical dimensions and tolerances.

Even small deviations can affect assembly performance in bogie systems.

How to Choose a Railway Casting Supplier

Choosing the right supplier directly affects product reliability and project success.

1. Capacità di produzione

A qualified supplier should have:

• Multiple casting processes
• Large-scale production capacity
• Heat treatment facilities
• Capacità di lavorazione CNC

2. Supporto tecnico

Strong suppliers provide:

• Casting design optimization
• Simulation and defect analysis
• Material selection support

3. Quality System

International railway projects typically require:

• ISO quality management systems
• Traceable production records
• Full inspection documentation

4. Industry Experience

Experience in railway applications is critical because:

• Load conditions are unique
• Safety requirements are strict
• Standards vary by region

Manufacturer of Railway Castings

Luoyang Fonyo Heavy Industry Co., Ltd. specializes in railway cast steel components and heavy industrial castings. Our production covers bogie components, structural railway castings, and precision-machined parts.

We support multiple casting processes including resin sand casting, water glass casting, lost foam casting, and V-process casting, combined with full machining and inspection capabilities.

If you are looking for a reliable railway casting supplier, we can support both OEM production and customized engineering requirements based on drawings or technical specifications.
