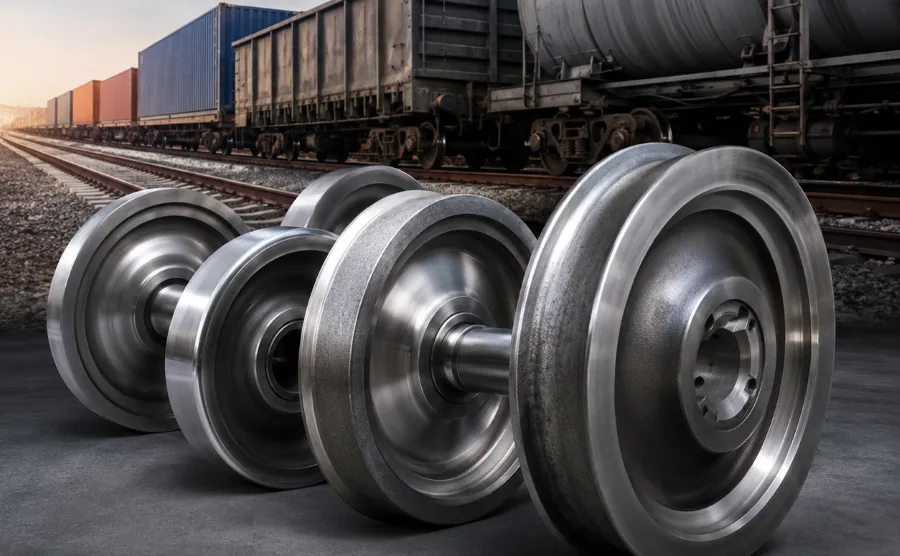

Freight Wagon Wheels For Reliable Operation in Standard and Heavy Freight Service

Freight wagons operate under continuous dynamic loading, variable impact conditions, and long-distance service cycles. Freight Wagon Wheels are engineered to ensure stable performance under real operational environments, where wear resistance and structural reliability under service conditions are the primary design drivers, rather than relying solely on laboratory strength values.

It is widely used in bulk transport, container wagons, and special freight applications across standard freight networks.

Engineering Focus

This wheel is developed based on actual freight operation requirements rather than isolated material performance indicators.

Key design priorities include:

• Stable performance under variable axle loading conditions
• Resistance to wheel–rail contact fatigue and surface wear
• Long maintenance intervals under continuous service operation

The wheel structure, material selection, and heat treatment process are optimized as an integrated system to ensure predictable in-service behavior.

Freight Wagon Wheels Application Scope

• Standard freight wagons
• Bulk material transport wagons
• Container freight wagons
• Special-purpose freight vehicles

Technical Specifications

Parameter	Value
Wheel Diameter	600–1050 mm
Axle Load	≤5 to 25 t/axle
Operating Speed	up to 120 km/h
Surface Hardness (tread)	280–320 HB
Fatigue Life	≥2 million cycles (under standard freight duty conditions)

Manufacturing Process

The wheel is produced using a forging-based manufacturing route combined with controlled heat treatment, ensuring:

• Uniform internal grain structure
• Improved resistance to crack initiation and propagation
• Stable mechanical performance under cyclic loading

Freight Wagon Wheels Standards Compliance

Can be manufactured in accordance with:

• AAR standards
• EN standards
• ISO standards

Each order is produced strictly under the selected standard system, with corresponding inspection and certification.

Freight Wagon Wheels Profile & Compatibility

Available tread and flange profiles include:

• AAR standard profiles
• UIC 510-2 profiles
• EN 13715 profiles

Custom profile matching is available upon request for retrofit or compatibility with existing wagon fleets.

Fatigue Performance Note

Fatigue life of ≥2 million cycles is based on standard freight duty conditions, typically evaluated under reference axle loads and normal operating speeds.
Specific fatigue performance can be adjusted according to customer operating profiles upon request.

Why operators choose this wheel

• Consistent wear performance under long-distance freight service
• Reduced wheel maintenance frequency
• Stable running behavior under mixed loading conditions
• Compatible with global freight wagon systems

Technical Support Manufacturer

For non-standard wheel profiles, special axle load conditions, or application-specific requirements, our Luoyang Fonyo Heavy Industries Co., Ltd. engineering team provides selection support and technical evaluation.
