Railway Bogie Side Frame Casting: תַהֲלִיך, Challenges and Defect Control

Why Railway Bogie Side Frame Casting Determines Structural Reliability

In most railway bogies, the side frame is not just a structural component—it is where casting quality directly translates into long-term performance.
From an engineering perspective, Railway Bogie Side Frame Casting is one of the most critical processes because any internal defect, residual stress, or dimensional deviation can eventually lead to fatigue cracks in service.

במשך השנים, we have seen that many in-service failures are not caused by design, but by inconsistencies in casting control. That is why understanding how side frames are actually manufactured is essential—not only for engineers, but also for procurement teams evaluating suppliers.

What Is Railway Bogie Side Frame Casting and Why It Is Complex

Railway Bogie Side Frame Casting refers to the manufacturing of side frames using steel casting processes, typically through resin sand or similar molding methods.

Unlike smaller cast components, side frames present several inherent challenges:

• Large section thickness variation
• Complex geometry (spring seats, pedestal openings)
• High mechanical property requirements
• Strict dimensional tolerances for assembly

From a process standpoint, this is not a simple “pour and cool” operation. The geometry itself creates multiple hot spots, which makes defect control significantly more difficult.

Railway Bogie Side Frame Casting Process: Step-by-Step Overview

From practical production experience, a typical Railway Bogie Side Frame Casting process follows these stages:

Pattern and Mold Preparation

The process starts with pattern design, which directly affects dimensional accuracy and shrinkage compensation. Resin sand molding is commonly used due to its stability and surface quality.

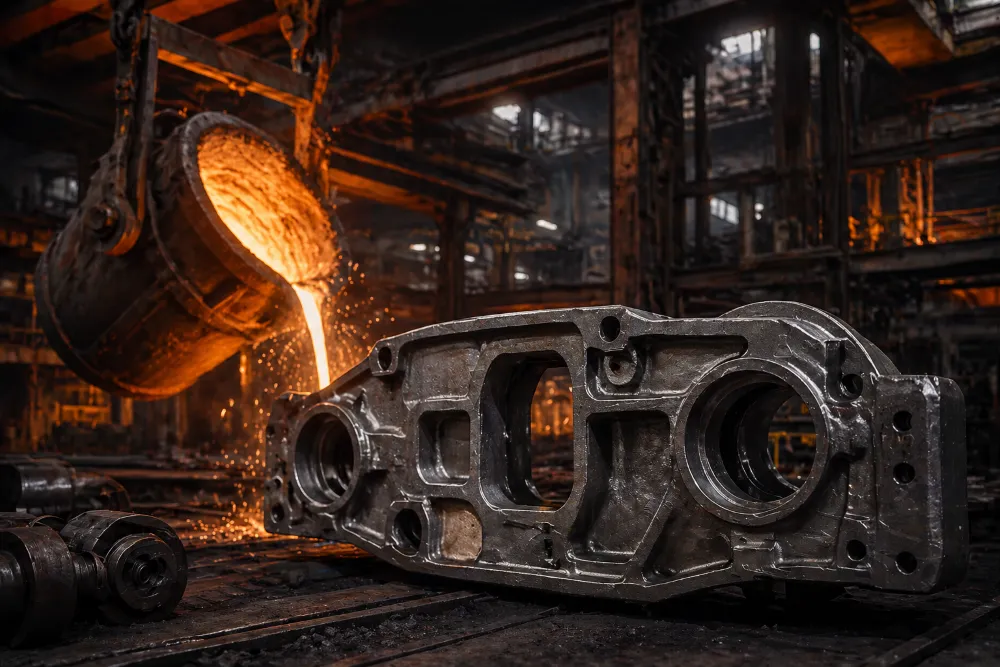

Melting and Pouring

Steel is melted in electric arc furnaces or induction furnaces.
The key here is not just temperature—but chemical composition control and pouring stability.

Poor pouring practices often lead to:

• Gas porosity
• Inclusion defects
• Cold shuts

Solidification and Cooling Control

This is where most casting problems originate.

Due to uneven wall thickness, different sections cool at different rates. Without proper riser design and cooling control, defects such as shrinkage cavities are very difficult to avoid.

Shakeout and Cleaning

After solidification, the casting is removed from the mold, followed by shot blasting and surface cleaning.

פגמים נפוצים

In real production environments, Railway Bogie Side Frame Casting defects are not theoretical—they are recurring issues if not properly controlled.

Shrinkage Cavities

Usually found in thicker sections.
They are caused by insufficient feeding during solidification.

Cracks (Hot Cracks and Cold Cracks)

Often appear in:

• Pedestal jaw corners
• Transition areas

These are typically related to thermal stress and improper cooling rates.

Sand Inclusion and Slag Inclusion

These defects are often linked to:

• Poor mold quality
• Inadequate pouring control

Dimensional Deviation

Side frames must match axle box and bolster assembly precisely. Even small deviations can affect bogie alignment.

How to Control Quality

From an engineering standpoint, quality control is not one step—it is a system.

Process Design Optimization

• Proper riser and gating design
• הַדמָיָה (if available) to predict hot spots

Chemical Composition Control

Material consistency directly impacts:

• כּוֹחַ
• Toughness
• התנגדות לעייפות

טיפול בחום

Normalizing and tempering are typically applied to:

• Refine grain structure
• Relieve internal stress

בדיקות לא הרסניות (NDT)

Critical inspection methods include:

• בדיקת אולטרסאונד (UT) for internal defects
• בדיקת חלקיקים מגנטיים (MT) for surface cracks

Without proper NDT, many defects remain undetected until failure occurs in service.

Why Railway Bogie Side Frame Casting Quality Matters in Service

From field experience, poor Railway Bogie Side Frame Casting quality usually shows up as:

• Fatigue cracks after repeated loading
• Premature failure in high-load conditions
• Increased maintenance frequency

In contrast, well-controlled casting results in:

• Longer service life
• Stable mechanical performance
• Reduced lifecycle cost

For operators, this is not just a component issue—it directly impacts safety and operational efficiency.

H2: Choosing a Reliable Railway Bogie Side Frame Casting Supplier

From a buyer’s perspective, evaluating a supplier should go beyond price.

Key aspects include:

• Casting experience with large structural components
• Process control capability
• Heat treatment facilities
• NDT inspection standards
• Consistency across batches

במקרים רבים, the difference between a reliable and an unreliable supplier is not visible in the first delivery—but becomes obvious after months of service.

Railway Bogie Side Frame Casting FAQ

What is Railway Bogie Side Frame Casting?

Railway Bogie Side Frame Casting is the process of manufacturing bogie side frames using steel casting methods, ensuring structural strength and dimensional accuracy for railway applications.

What are the common defects in side frame casting?

Common defects include shrinkage cavities, cracks, sand inclusion, and dimensional deviation, mainly caused by poor solidification control and process design.

Why is heat treatment important in side frame casting?

Heat treatment improves mechanical properties, relieves internal stress, and enhances fatigue resistance, which is critical for long-term service performance.

Which inspection methods are used?

בדיקת אולטרסאונד (UT) and Magnetic Particle Testing (MT) are widely used to detect internal and surface defects.

Engineering Perspective and Manufacturer

ב Railway Bogie Side Frame Casting, quality is not something that can be added at the end—it must be built into every step of the process.

In our production practice, we focus on:

• Controlled solidification
• Strict chemical composition management
• Full NDT inspection before delivery

If you are working on railway bogie components or evaluating long-term suppliers, understanding the casting process is often the fastest way to identify real manufacturing capability.
