Why Shot Blasting Is Essential for Railway Wheels

Railway wheels work in very tough conditions. They face constant rolling, heavy loads, heat from braking, and repeated stress. This means the material and surface of the wheels must be very strong. For manufacturer like us, shot blasting for railway wheels is not just about cleaning the surface. It’s a key step to make wheels safer, last longer, and perform better.

What Is Shot Blasting for Railway Wheel?

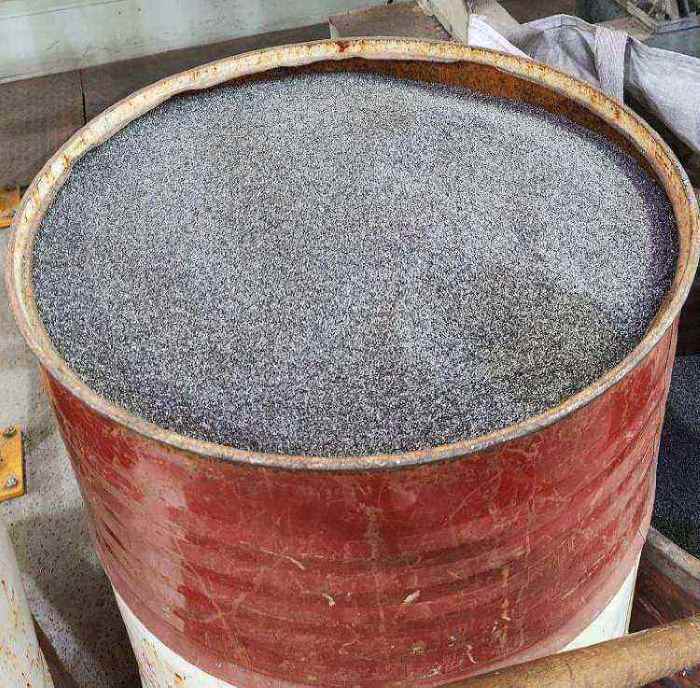

Shot blasting for railway wheels is a special surface treatment. We shoot tiny steel balls at high speed onto the wheel surface. This removes rust and scale, and more importantly, it creates a protective layer of compressive stress on the wheel. This makes the surface stronger.

Unlike simple cleaning, shot blasting actually improves the wheel’s strength and service life.

Why Shot Blasting Is Essential for Railway Wheel

Railway wheels can easily be damaged by small surface problems. Even little flaws can start cracks over time.

Main benefits of shot blasting for wheels:

1. Surface Oxide and Scale Removal
   After heat treatment, wheels get an oxide layer and scale on the surface.
   Shot blasting cleans them off completely, leaving a smooth surface ready for the next step.
2. Introduction of Compressive Residual Stress
   This is one of the biggest advantages of shot blasting. It forms a compressive stress layer on the surface.
   This layer:
3. Helps prevent cracks from starting
4. Slows down crack growth
5. Makes the wheel more resistant to fatigue
6. Improved Fatigue Life
   Fatigue resistance is very important for railway wheel safety.
   Shot blasting reduces stress on the surface, which greatly extends the wheel’s life—especially under repeated heavy loads.
7. Enhanced Wear Resistance
   Shot blasting makes the surface a little harder through controlled deformation.
   This helps the wheel resist wear and surface damage during long-term use.

Process Control in Shot Blasting for Railway Wheels

To do shot blasting well, we carefully control:

• Size and hardness of the steel balls
• Shooting speed
• Even coverage on the surface
• Consistency every time

We use automated systems so that each wheel is treated the same way. This keeps quality stable and reliable.

Shot Blasting as a Safety-Critical Process

Today, shot blasting for railway wheel is seen as a safety-related step.
It directly affects:

• How good the surface is
• Fatigue resistance
• Reliability in operation

A well-shot-blasted wheel lasts longer and needs less maintenance.

For more in-depth information on railway wheels

You might also be interested in our other articles:

Railway Wheel Heat Treatment Explained for performance improvements

Ultrasonic Testing of Railway Wheels to understand internal inspections

Railway Wheel Structure and Composition for a complete guide

Visual Inspection Methods for Railway Wheels to spot surface defects

How NDT and Non-Destructive Quality Inspection Guarantee Railway Wheels to ensure wheel reliability and detect hidden defects

3D Laser Measurement for Railway Wheels to know how precise dimensional inspection during the wheel production process

Our Manufacturing Commitment

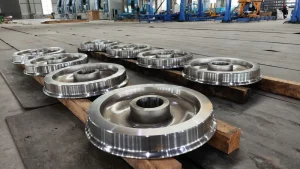

At Luoyang Fonyo Heavy Industries Co., Ltd., shot blasting is a standard part of how we make railway wheels.
Along with our advanced casting, machining, and inspection methods, our controlled shot blasting process ensures every wheel meets high standards for performance and safety.

FONYO — Reliable railway wheels built for the long run. If you want to know more about us, please visit our website www.railwaypart.com
