The DNA of Foundry: How Steel Casting Elements Define Component Performance

In the global heavy industry supply chain, the journey from 1500°C molten metal to a high-precision component is governed by a delicate chemical balance. Whether we are manufacturing Stator End Press Ring for Traction Motor for high speed train or Gearbox Housing for a locomotive, the reliability of the steel casting part is written in its chemical “DNA.”

In the foundry industry, the chemical composition of cast steel is centered around what we call the “Big Five” elements. Understanding these is the first step in successful foundry material selection. Today, we will explore the first three architects of steel: Carbon (C), Silicon (Si), and Manganese (Mn).

1. Carbon (C): The Core Steel Casting Element for Strength

If steel were a person, Carbon would be the muscle. It is the primary steel casting element that determines the mechanical hardness and ultimate tensile strength of the final product.

The Chemistry of Strength

Carbon atoms sit within the crystal lattice of iron, preventing the layers of atoms from sliding past each other. As Carbon content increases, the steel becomes significantly harder. This is essential for heavy-duty industrial applications where structural integrity is non-negotiable.

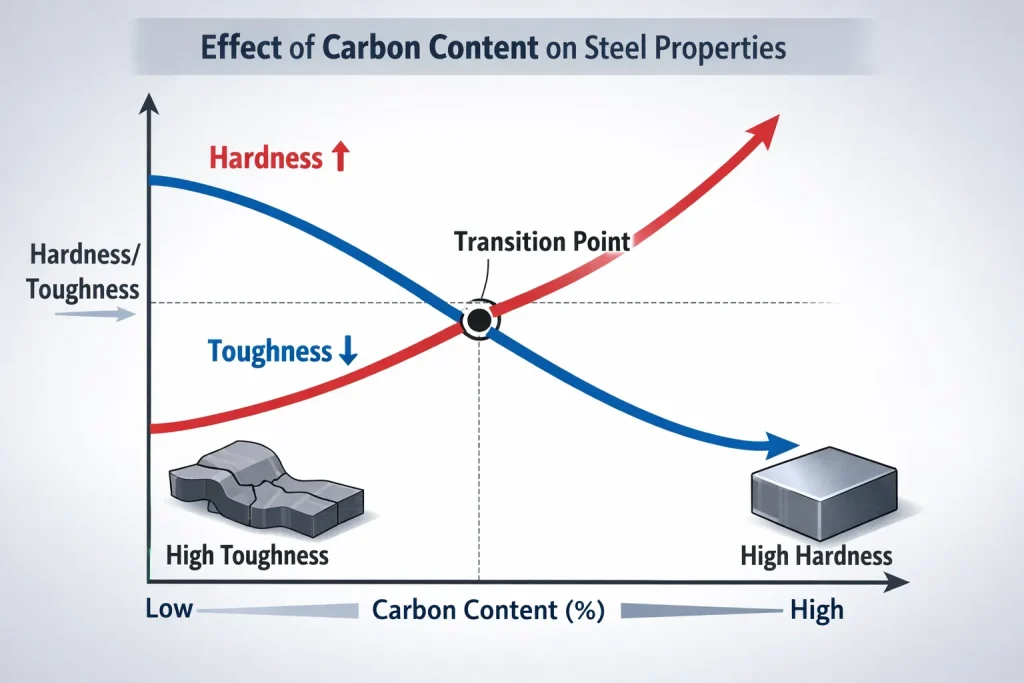

The Ductility Trade-off

However, Carbon is a double-edged sword. Excessive carbon reduces ductility, that is the ability of the metal to deform without breaking. High-carbon steel is like a diamond; it is incredibly strong but prone to shattering under sudden impact (brittleness). For engineers, the goal is to find the “Golden Mean.”

• Low/Medium Carbon (e.g., ZG230-450, ZG25II): This is our “all-rounder.” With a carbon content usually between 0.2% and 0.3%, it provides the perfect balance of toughness and weldability. It is the top choice for Axle Boxes and Freight Wagon components.
• High Carbon (e.g., 35# Steel): Some Agricultural Ploughs. Here, we sacrifice some weldability for the extreme surface hardness required to fight off abrasion from soil and sand.

2. Silicon (Si): Improving Fluidity in Steel Casting Process

When analyzing the chemical composition of cast steel, Silicon is the “fluidity master.” In the foundry, the “castability” of a metal is just as important as its final strength.

The Fluidity Factor

Silicon lowers the melting point slightly and thins the molten metal. This allows the steel to flow like water into complex mold designs, such as the thin ribs of a Motor Stator Base or the intricate internal cooling channels of a Gearbox Housing.

Deoxidation: The “Cleanliness” Element

Silicon also acts as a powerful deoxidizer. During melting, steel absorbs oxygen, which can cause internal “gas holes” (porosity) during cooling. Silicon reacts with this oxygen to form silica, which floats to the top as slag, leaving behind a dense, “clean” casting.

• Application in the Lab: For complex geometries cast via Furan Resin Sand, we carefully monitor Silicon levels to ensure the metal reaches every corner of the mold without compromising the steel’s impact toughness.

3. Manganese (Mn): Enhancing Durability and Fatigue Resistance of Steel Casting Manufacturing

Manganese is the “silent protector” in the alloy. It is a critical steel casting element that ensures the component can survive millions of stress cycles without fatigue failure.

Hardness Without Brittleness

Unlike Carbon, Manganese increases “hardenability” and strength without making the steel as brittle. It ensures that a large casting, such as a Traction Seat, is strong from the surface all the way to its thickest core.

Fighting the “Sulfur Curse”

One of Manganese’s most vital roles is neutralizing Sulfur. Sulfur is a dangerous impurity that causes “hot shortness”—where the steel cracks while it is still red-hot in the mold. Manganese binds with Sulfur to form harmless Manganese Sulfide (MnS) inclusions, essentially “healing” the steel from within.

• Railway Standards: Our GS20Mn5 (ZG20Mn) and Grade B+ Steel leverage higher Manganese levels (often 1.0% to 1.6%) to achieve the high fatigue resistance required for railway parts that endure constant vibration and shock during transit.

4. The Expert Concept: Carbon Equivalent (CE)

In professional foundries like ours, we don’t just look at elements in isolation. we look at the Carbon Equivalent (CE).

The CE formula combines the effects of Carbon, Manganese, and other alloys to predict how well the steel can be welded. A higher CE usually means a harder part but one that requires pre-heating before welding. By calculating the CE for every batch of ZG275-485H or 40Cr, we ensure our clients receive parts that are easy to integrate into their final assemblies.

5. Quality Control: Spectrometer Analysis

To ensure your Axle Box or Motor Base meets the exact chemical DNA required, we utilize state-of-the-art Optical Emission Spectrometers (OES). Before every pour, a small sample of the molten metal is analyzed in seconds. If the Manganese is 0.05% too low, we adjust it immediately. This level of precision is why our castings are trusted in -40°C wind farms and high-speed rail networks.
