How Much Do You Know About Train Couplers?

Behind the swift movement of trains lies the coordinated work of countless precise components. Among them, the couplers that connect the carriages and transmit the immense tractive force are not conspicuous but are the core key to ensuring the safety and efficiency of railway transportation. Their performance directly affects the reliability of the entire transportation system. This article will delve into the performance indicators, design features, and core functions of modern train couplers, revealing the engineering and technological wisdom behind this “powerful coupling force”.

I. Core Functions

The basic mission of a coupler is clear and crucial, but its connotation is far richer than simple “connection”.

1.1 Reliable connection and automatic uncoupling:

This is the most fundamental function of a coupler. It must be able to quickly, accurately, and safely connect the coupler boxes (or “coupler tails”) of two carriages to form a single unit. Modern mainstream automatic couplers (such as the Janney coupler and its derivatives) have achieved the “connect and go” automated operation, significantly enhancing the efficiency of train formation. At the same time, when it is necessary to separate the carriages, operators can achieve remote or manual safe uncoupling through specific devices (usually by pulling the air hose or operating the uncoupling lever), without the need for personnel to enter under the train, greatly enhancing safety.

1.2 Transmission of tractive and compressive forces:

During train operation, the huge tractive force generated by the locomotive is transmitted to each subsequent carriage through the couplers. Similarly, during braking or reverse operation, the couplers must also withstand the compressive force from the rear carriages. The couplers and their accompanying buffer devices must smoothly transmit these enormous forces to avoid shock damage to the carriage structures.

1.3 Buffering and energy absorption:

This is the crucial “soft power” of the coupler system. When the train starts, brakes, changes speed, or passes over uneven tracks, it generates significant longitudinal impact forces. The internal buffers or  the couplers (typically rubber springs, frictional, or hydraulic structures) can effectively absorb this impact energy, reducing the “push and pull” between carriages. This not only enhances passenger comfort but, more importantly, protects the cargo and carriage structures, extending the vehicle’s service life.

1.4 Maintaining vehicle spacing and transmitting auxiliary signals:

After coupling, the couplers maintain a fixed vehicle spacing to ensure that adjacent carriages do not interfere on curves. Additionally, many modern couplers integrate train pipes (brake air pipes), electrical connectors, and other auxiliary connectors, automatically completing the connection of the braking system and control signals, as well as power between carriages, serving as the nerve and blood vessels for the train to operate as a “complete system”.

II. Outstanding Performance:

The performance indicators of couplers directly reflect their reliability and mainly cover the following aspects:

2.1 Strength performance:

This is the “lifeline” of the coupler. It must be able to withstand extreme tensile, compressive, and shear forces far beyond normal operating conditions. The minimum breaking load usually measures its strength. For example, the minimum breaking load of reinforced couplers used in heavy freight can reach 350 tons or even higher. So it can ensure structural integrity in extreme situations (such as emergency braking or unexpected collisions) and avoiding catastrophic accidents due to fractures.

2.2 Durability and fatigue performance

Couplers need to undergo millions of coupling and uncoupling actions and continuous force load cycles throughout their life cycle. Therefore, their materials must have extremely high fatigue strength, capable of resisting the initiation and propagation of cracks, ensuring performance does not decline under long-term and high-frequency use. The key materials are used,such as high-quality alloy steel, precise forging, and heat treatment processes.

2.3 Buffering performance

This is mainly reflected in the capacity, stroke, and energy absorption efficiency of the buffer. Excellent buffering performance can significantly reduce the longitudinal impulse of trains, which is particularly important for protecting fragile goods and precision equipment.

2.4 Coupling and uncoupling reliability:

It refers to the ability of the coupler to ensure successful coupling and smooth uncoupling in various harsh conditions (such as low temperatures, rain, snow, and dust pollution). The dust-proof and ice-proof design of its mechanical structure and the low-temperature toughness of the materials are crucial.

2.5 Interchangeability:

Standardized coupler designs allow couplers produced by different manufacturers and meeting the same standards to be interconnected. This is of strategic significance for the interconnection of railway networks and the flexible grouping of vehicles.

III. Design Features:

To achieve the above functions and performance, modern train couplers exhibit the following distinct features:

3.1 Automation and Intelligence:

Automatic couplers have become the absolute mainstream. Their complex internal shoulder and lock iron mechanisms achieve automatic coupling. In recent years, more intelligent couplers have emerged, integrating sensors to monitor the coupler and buffer status in real time (such as connection status and force conditions), providing data support for predictive maintenance and train health management.

3.2 Modularization and Integration:

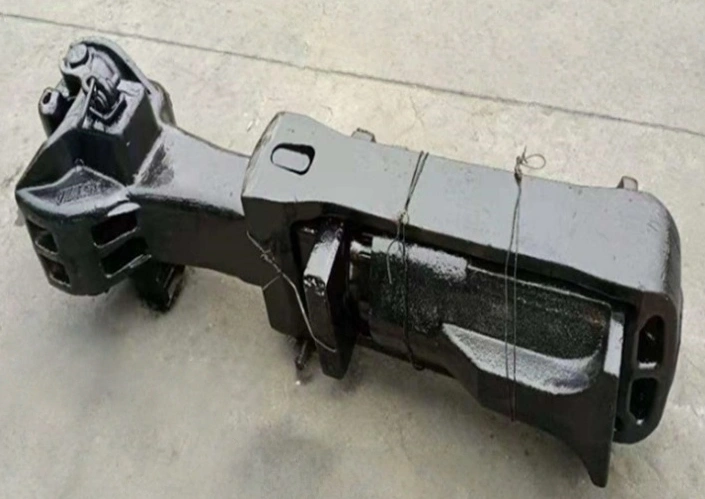

Couplers often exist as a system (coupler and buffer system), integrating the coupler head, buffer, and coupler tail frame into a modular unit. This makes installation, maintenance, and replacement more convenient. Different performance grades of buffers are matched for different uses (freight, passenger, high-speed, heavy-haul).

3.3 Lightweight and High Strength:

Under the premise of ensuring absolute strength, the weight of the coupler is reduced through structural optimization (such as hollow design) and the application of advanced materials (such as high-strength lightweight alloys), which helps to reduce the overall weight of the train and achieve energy conservation and consumption reduction.

3.4 Safety Design:

The locking mechanism of the coupler usually has safety devices (such as secondary locking) to prevent accidental uncoupling. The buffer system often has travel limit or overload protection mechanisms to ensure that the system remains in a safe state in abnormal conditions.

3.5 Adaptive Design:

For different operating environments, couplers have special designs. For example, the rotary coupler used in heavy-haul units allows the carriages to rotate as a whole on the car dumper for unloading without uncoupling, greatly improving the operation efficiency. 4. Conclusion

IV. Development Of The Train Coupler

The train coupler, a seemingly rough steel component, is actually a sophisticated device. It embodies the wisdom of numerous fields such as materials science, mechanics, and mechanical design. From the initial chain coupler to the modern automatic close-coupler, its evolution history is  a microcosm of railway technology development. It not only ensures that trains can be “connected, pulled, and stopped stably” but also, through continuous performance optimization and technological innovation, silently supports the steady progress of railway transportation towards heavier loads, higher speeds, greater safety, and smarter operation. The next time you witness a train roaring past, perhaps you can imagine that each steady and powerful “steel handshake” is the silent force that enables this steel dragon to traverse and gallop freely.
