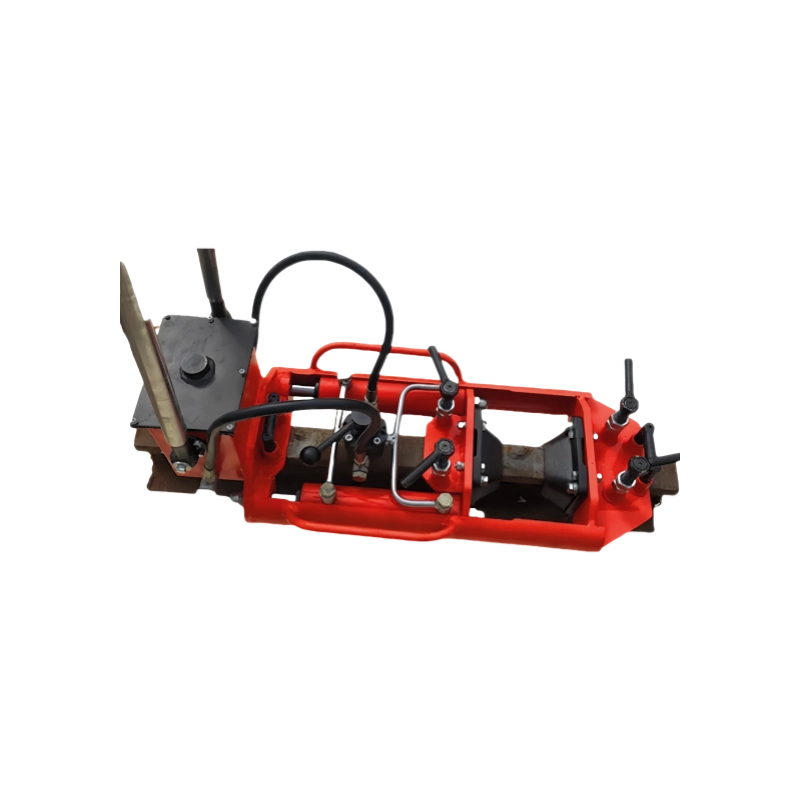

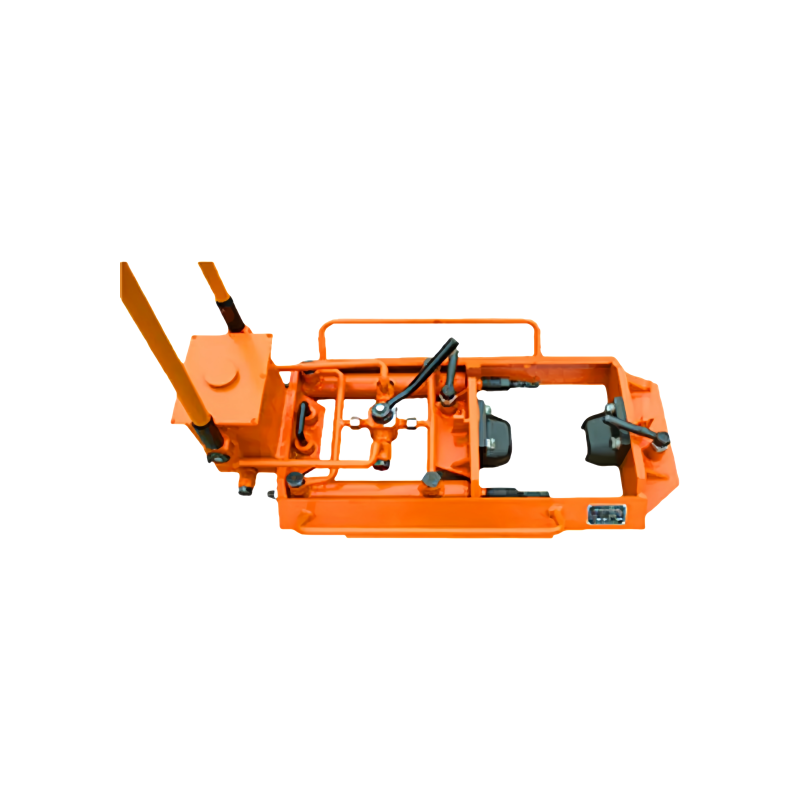

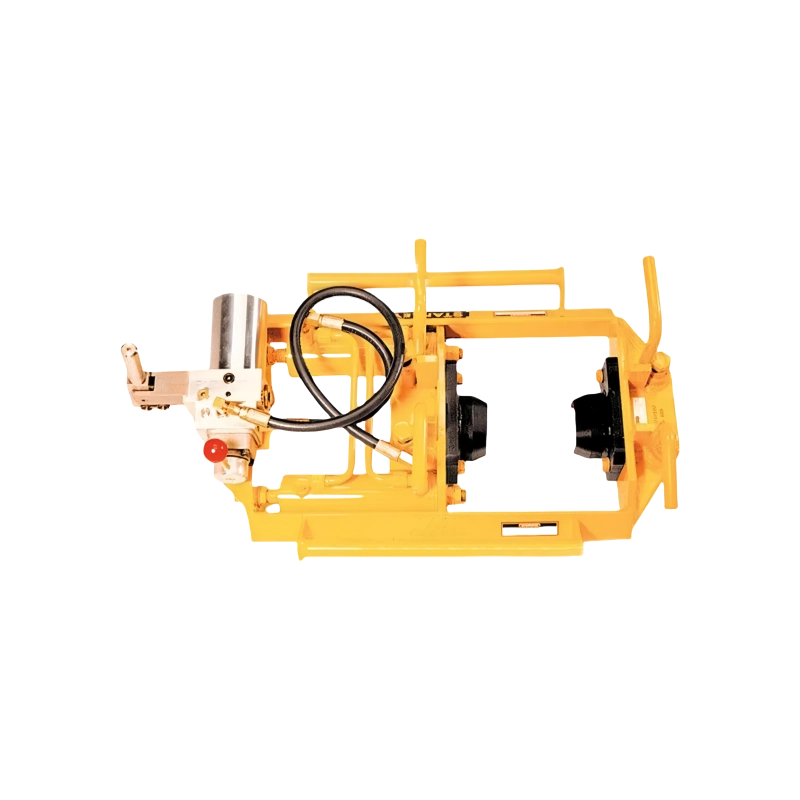

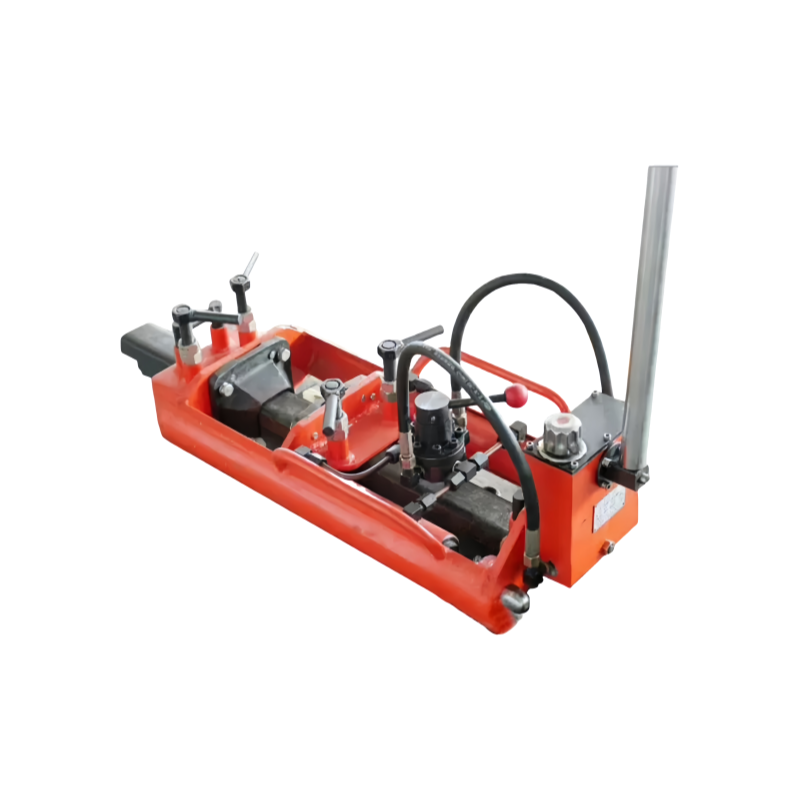

Hydraulic Weld Trimmer: Rail Casting Weld Finishing Solution

Overview of Hydraulic Weld Trimmer

Designed for post-welding processing of cast steel/cast iron components of rail vehicles and engineering machinery, it uses the principle of high-pressure mechanical pushing to quickly remove welding protrusions, spatter and oxide layer, and achieves a weld surface flatness of ≤0.5mm, meeting rail transportation welding standards such as EN 15085 and ISO 5817. It is suitable for post-welding finishing of key components such as bogies, couplers, and wheelsets to improve product qualification rate and service life.

Technical Specifications Table of Hydraulic Weld Trimmer

Parameters	Technical indicators
Applicable materials	Cast steel/cast iron/alloy steel
Maximum push cutting width	300mm (customizable to 500mm)
Spindle speed	600-3000rpm (continuously variable speed)
Processing efficiency	8-15m/min (depending on material hardness)
Power requirements	380V±10% 50Hz three-phase four-wire
Equipment weight	1200kg (including base)
Noise level	≤75dB(A) (1m away from the device)

Features of Hydraulic Weld Trimmer

High-precision machining

• Equipped with CNC servo system, adjustable push cutting depth (0.1-5mm), repeat positioning accuracy ±0.05mm
• Adapt to different weld shapes (V-type/U-type/angle weld), automatically compensate for workpiece deformation error

Material compatibility

• Optimize tool material for cast steel (ZG230-450/ZG25MnCrNiMo) and cast iron (HT250/QT400-15)
• Carbide coated tool head, impact resistance life increased by 300%, support continuous processing of 200+ welds

Safety protection design

• Fully enclosed protective cover + laser safety light curtain to prevent iron chips from splashing
• Emergency braking system response time <0.2 seconds, in line with CE mechanical safety standards

Modular structure

• Quick-change tool holder design, tool replacement completed within 5 minutes
• Optional mobile workbench, adapt to different production line layouts

Application Scenarios of Hydraulic Weld Trimmer

Rail transportation

• Bogie frame weld finishing
• Axle/wheel set welding joint processing
• Brake system casting post-weld repair

Construction machinery

• Excavator boom/arm welding reinforcement
• Crane boom joint flattening

Energy equipment

• Wind power tower flange circumferential seam processing
• Nuclear power pressure vessel pipe seat weld processing

Package of Hydraulic Weld Trimmer

Polybag+Carton box+Wooden case/Pallet, according to customer’s request

Company Profile

Luoyang Fonyo Heavy Industries Co., Ltd. was founded in 1998, covers an area of 72,600㎡, with more than 300 employees, 32 technicians, including 5 senior engineers, 11 assistant engineers, and 16 technicians. It has been rated as Luoyang Engineering Technology Center, Luoyang Technology R&D Center, and National High-tech Enterprise for many times.
Our production capacity is 30,000 tons per year. Currently, we mainly produce cast steel, cast iron (gray iron, ductile iron, etc.), processing of finished product and component assembly for locomotive,railcar,high-speed trains, mining equipment,wind power,etc.Our products have been exported to Russia, the United States, Germany, Argentina, Japan, France, South Africa,Italy and other countries.

FAQS

Q1: Are you a manufacturer or trading company?
A: We are a manufacturer. Our company was founded in 1998, with nearly 30 years in casting industry, a total area of 72,600㎡, with a factory building area of 51,000㎡.
Q2. What are your main products?
A: We primarily focus on steel casting, iron casting, finished product machining, and component assembly production for locomotive, railcar, high-speed trains, mining equipment, wind power,etc.
Q3: How precision can you produce casting parts?
A: We have the capability of producing casting parts with different casting processes. The production is strictly comply with ISO 9001, ISO 14001 and ISO45001,EN15085, IRIS.
Q4. Can you produce according to the samples?
 Yes, we can produce by your samples or technical drawings. We can build drawings for you after we get your samples too.
Q5: How do you do Quality Control before delivery?
A: Quality inspection is a very important factor to guarantee the quality of steel casting parts. We follow 3 times of inspection during the whole production process. And we will provide material testing report, dimensional testing report, and mechanical properties testing report to our clients before delivery.

It you are interested in any products,please feel free to contact us.
