Digital track gauge: global multi-gauge adaptation, accurate detection enables efficient and safe railway infrastructure

Overview of Track Gauge

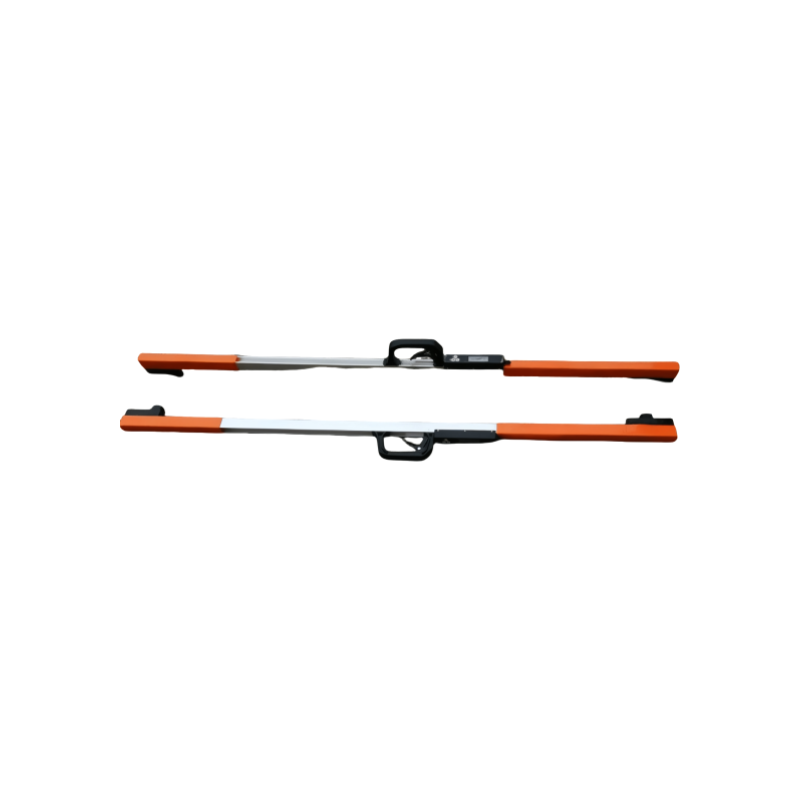

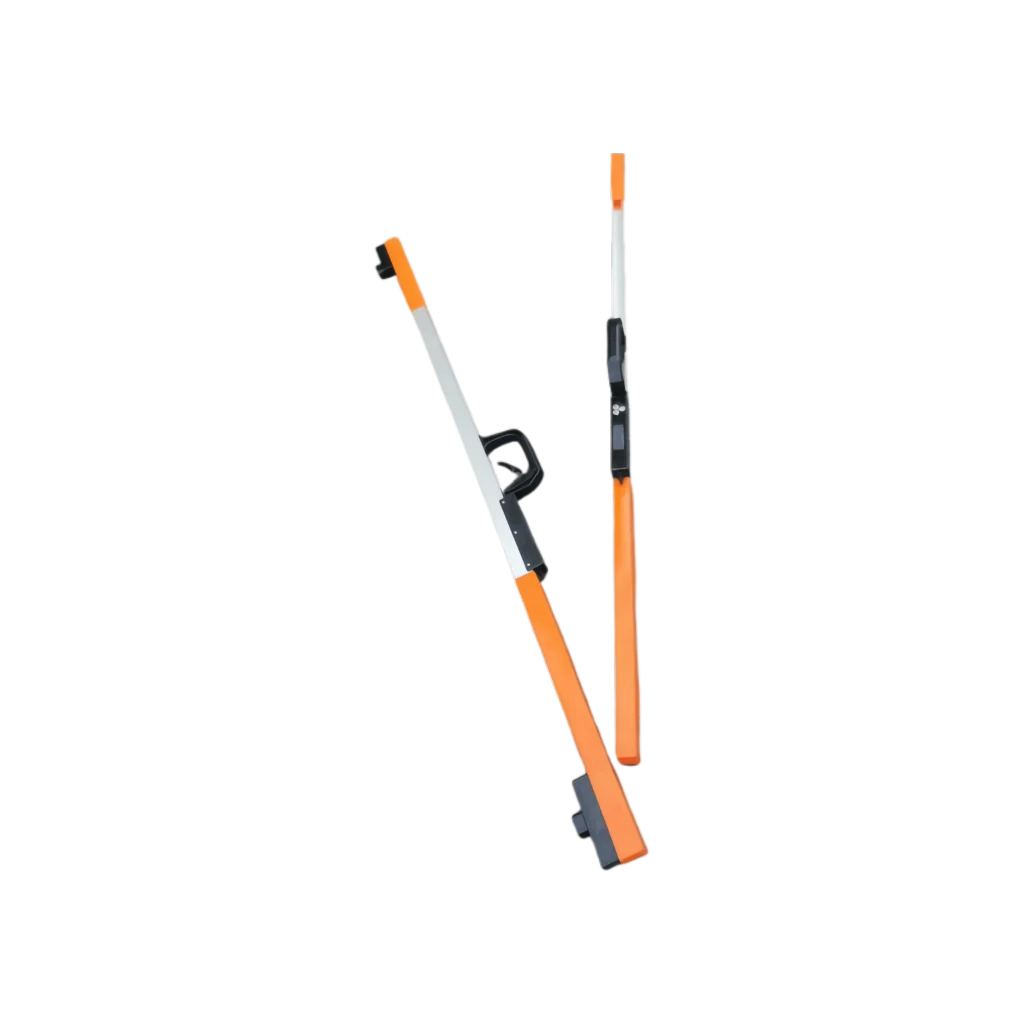

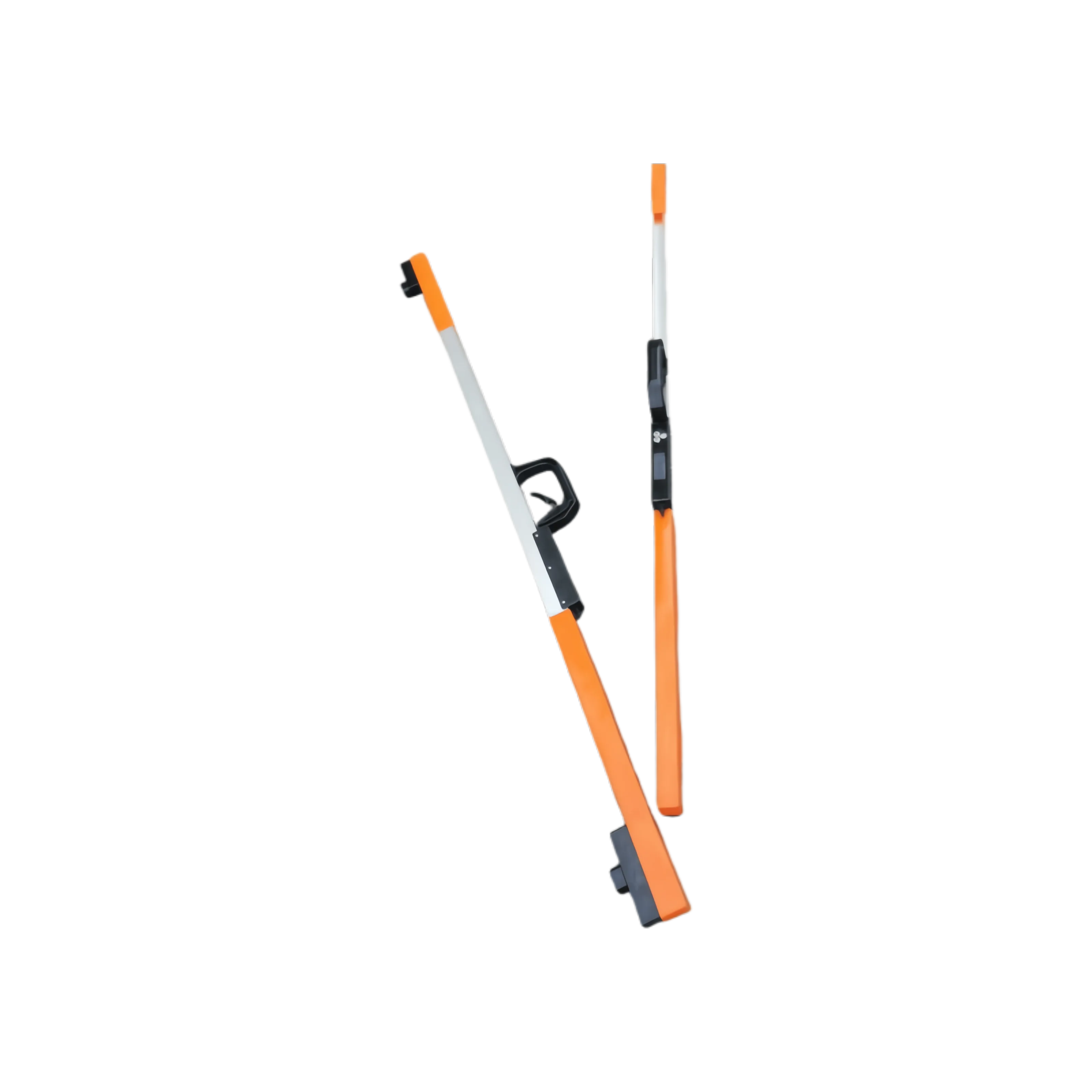

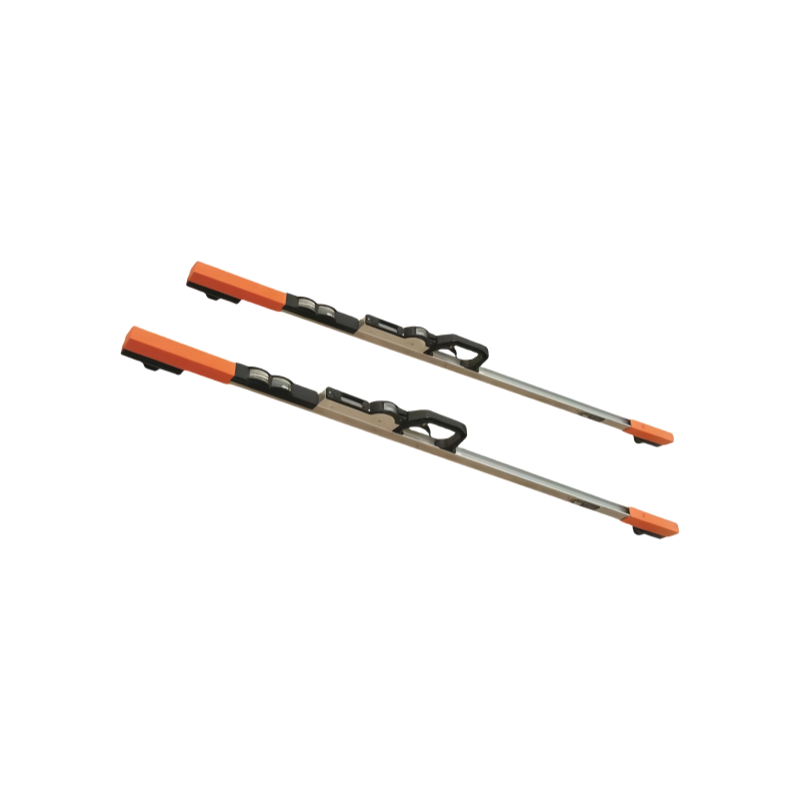

The digital track gauge (referred to as track gauge) is a digital precision instrument designed for railway track geometric parameter detection. It integrates high-precision sensors, embedded algorithms and intelligent interaction, and can quickly measure core parameters such as gauge, superelevation (horizontal), inspection interval, back protection distance, etc.

By pulling the wrench to drive the guide rod to move in the length direction, the movable probe connected to the front end of the guide rod and the displacement sensor pull rod connected to it and the displacement sensor housing fixed on the ruler body produce relative movement, and the displacement sensor gives a corresponding electrical signal, thereby realizing the electrical detection of the gauge measurement value corresponding to the sliding probe and the fixed probe of the track gauge. The information of the displacement sensor is transmitted to the data microprocessor, and the electronic display panel switches the button to realize different measurement requirements such as gauge, inspection, back protection, etc. The built-in temperature sensor of the microprocessor transmits the current temperature to the data microprocessor in real time. The data microprocessor will display the current gauge information on the OLED LCD screen after linear correction and temperature compensation calculation of the various information received, so as to achieve the purpose of measuring the gauge.

The function of the temperature compensation program is: since the ruler is made of aluminum alloy, its linear expansion coefficient is very different from the linear expansion coefficient of the sleeper on the track that directly affects the track gauge, which will cause a large error in the track gauge measured at different temperatures. In order to eliminate the error caused by temperature, a temperature sensor is specially set to monitor the temperature change in real time and transmit it to the data microprocessor. The data microprocessor corrects the track gauge information transmitted by the displacement sensor according to the current temperature, so as to measure the accuracy of the track gauge at different temperatures.

Widely used in railway construction, operation and maintenance, scientific research and export markets, to help the global track safety detection intelligent upgrade.

Technical Specifications of Track Gauge

Features of Track Gauge

Millimeter-level accuracy, adapt to complex environments
High-precision measurement: track gauge resolution 0.01mm, horizontal error ≤±0.15mm (level 0 standard), support -30℃ to +55℃ extreme temperature environment, built-in temperature compensation algorithm automatically corrects thermal expansion and contraction errors.
Anti-interference design: IP67 protection level, dustproof and waterproof, anti-electromagnetic interference, adapt to complex working conditions such as tunnels, humidity, and high altitudes.

One-touch intelligence simplifies the inspection process
3-second ultra-fast inspection: After being inserted into the track, it automatically collects data such as gauge, superelevation, and inspection interval, eliminating manual reading errors and improving efficiency by more than 50%.
OLED high-definition screen: Chinese/English/multi-language interface, supports night light mode, intuitive display of data, icons, and trend charts, and real-time sound and light alarms for exceeding the limit.
Three-button minimalist operation: one-button switching of measurement, calibration, and lock screen, one-handed operation with gloves, suitable for outdoor work scenes.

Sturdy and durable, reducing the cost of the entire life cycle
Military-grade material: high-strength alloy steel ruler + wear-resistant injection molded rail surface, impact-resistant and corrosion-resistant, passed 50,000 repeated measurement tests, and has a service life of more than 10 years.
Modular design: batteries and sensors can be quickly replaced, reducing maintenance costs, and supporting rapid response from the global after-sales network.

Functions of Track Gauge

Multi-parameter synchronous detection
One-click synchronous acquisition of track gauge, superelevation, inspection interval (1391mm±10mm), back protection distance (1348mm±10mm), error ≤±0.25mm, support dynamic compensation of curved track.
Intelligent calibration and diagnosis
Automatic zero point calibration, built-in track tilt compensation algorithm, calibration data can be traced back to specific detection points; over-limit values ​​(such as track gauge deviation>2mm, superelevation>15mm) automatically alarm and record.

Application of Track Gauge

Railway daily operation and maintenance
Track inspection, turnout inspection, overhaul acceptance, replace traditional mechanical track gauge, reduce manual errors, improve operation efficiency and data credibility.
Acceptance of new line construction
Accuracy acceptance of high-speed rail, subway, and heavy-duty railway laying to ensure that track geometry parameters meet design standards and reduce later maintenance costs.
Scientific research and teaching
Track dynamics experiments, railway engineering professional teaching, provide high-precision raw data, and support track health trend analysis.

Package of Track Gauge

Polybag+Carton box+Wooden case/Pallet, according to customer’s request
