Railway Cast Iron Gearbox: High-Strength, Durable & Cost-Effective Transmission Solutions

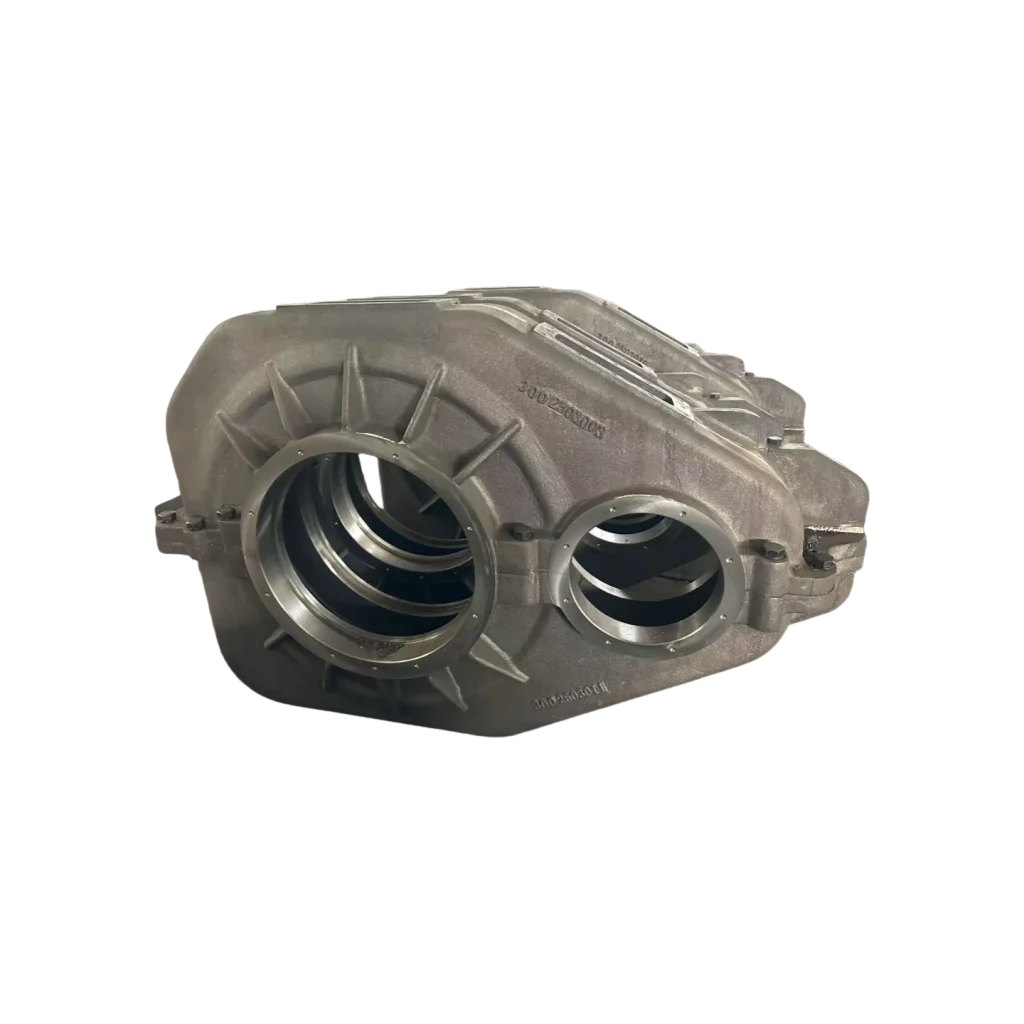

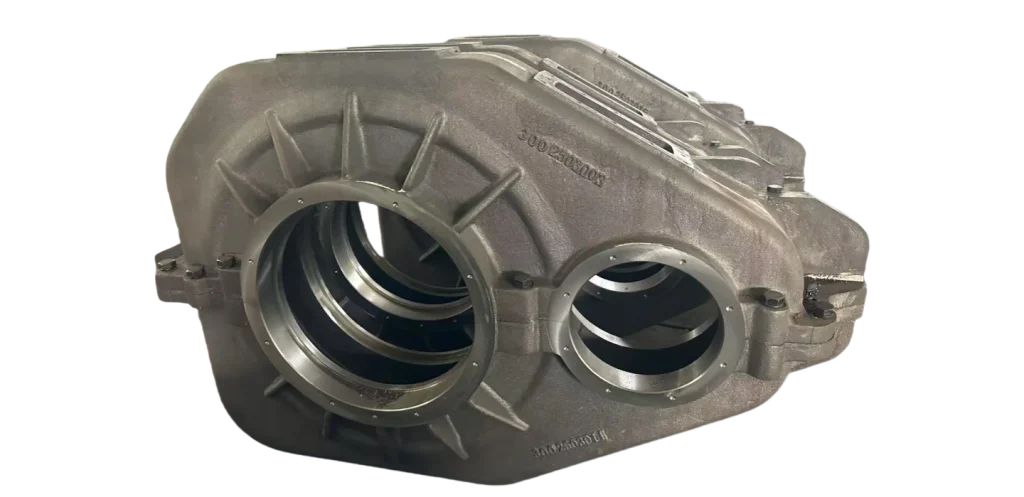

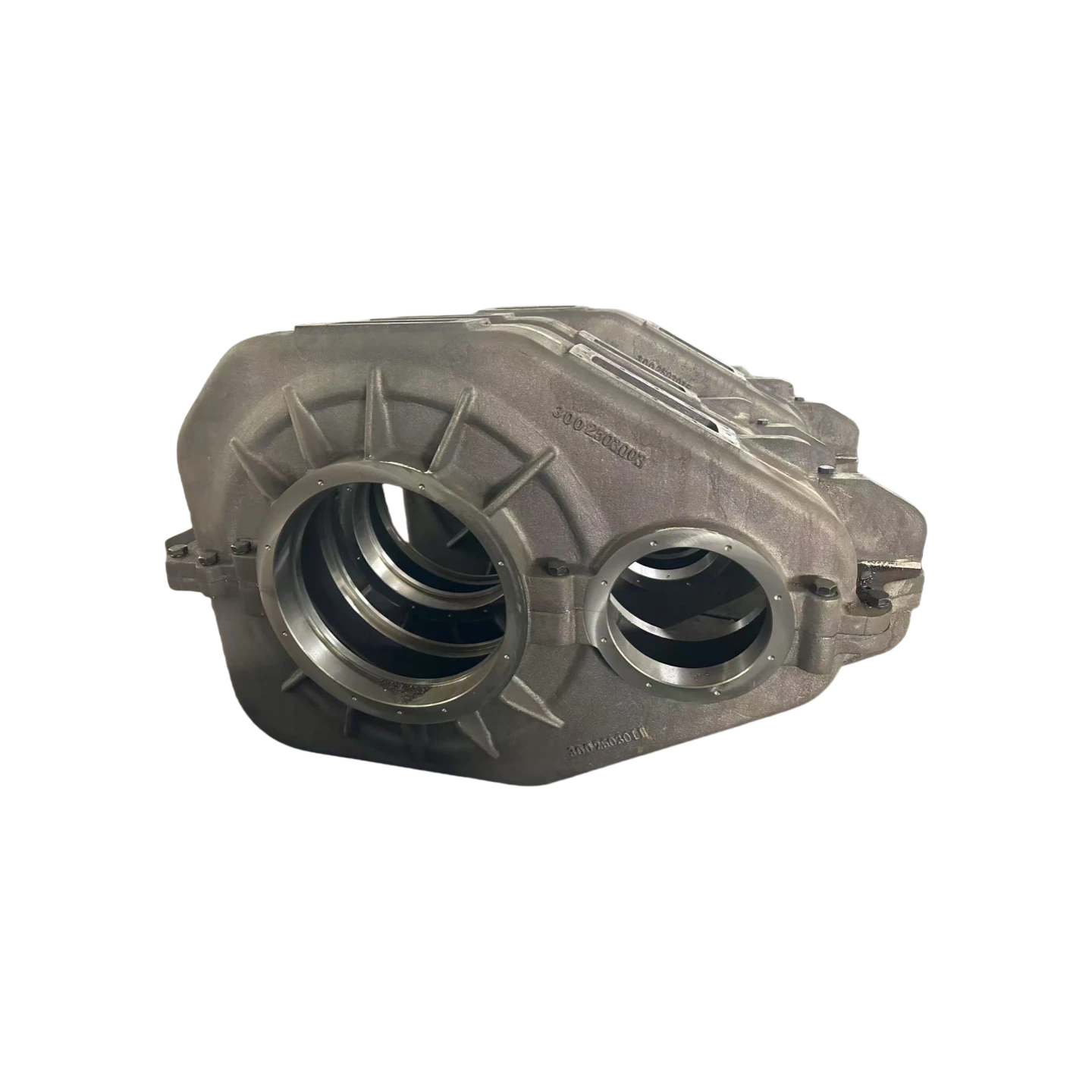

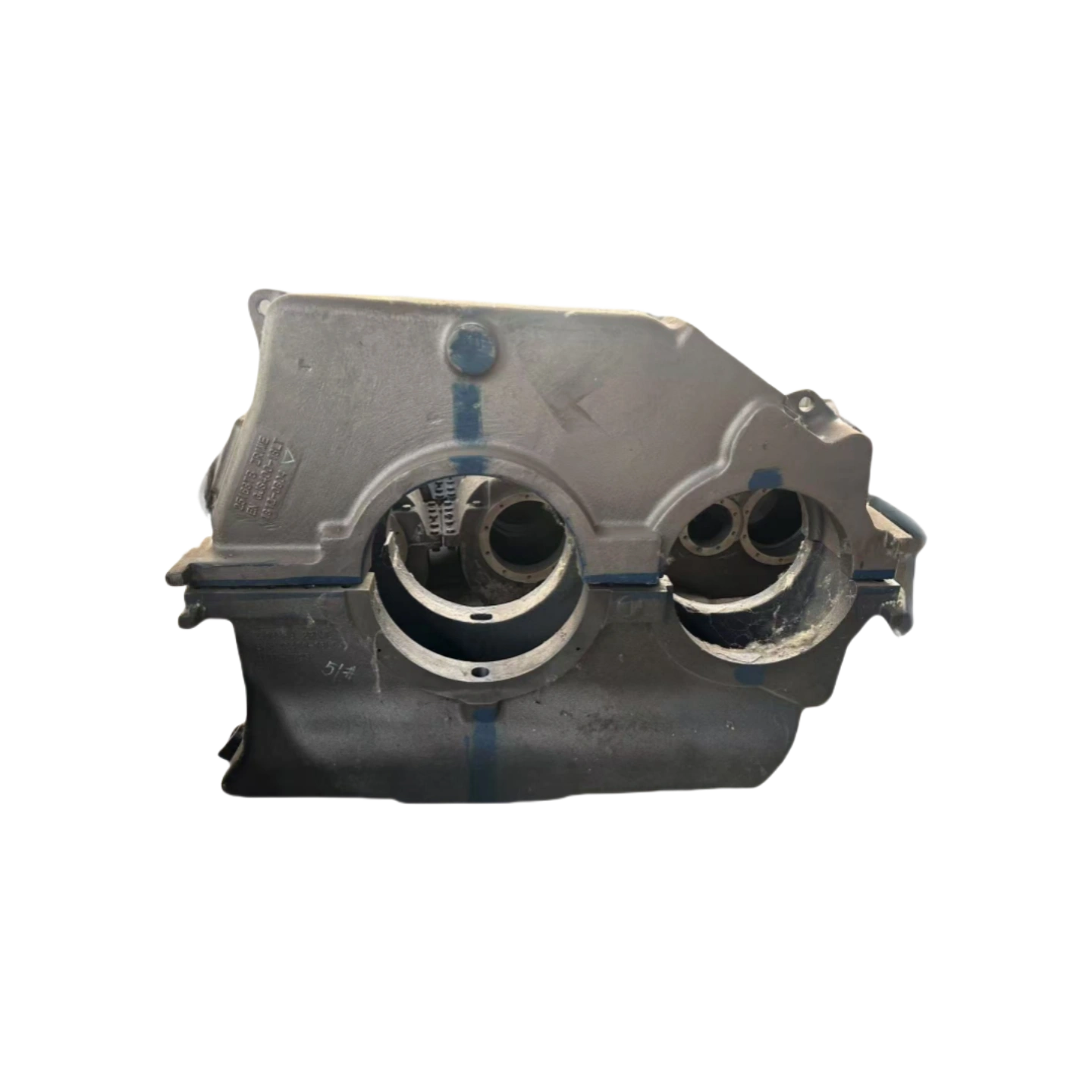

Overview of Railway Cast Iron Gearbox

Railway cast iron gearboxes are key components of railway vehicle transmission systems. Precision-cast from high-strength cast iron, they are designed specifically for the harsh railway operating environment. Compared to cast steel and other materials, cast iron gearboxes offer significant advantages in vibration and noise reduction, wear resistance, and cost-effectiveness. They provide long-term, stable protection for gear transmission systems, ensuring efficient power transmission while reducing maintenance costs throughout their lifecycle.

Technical Specifications of Railway Cast Iron Gearbox

Project	Technic Parameters/Features
Material	High-strength cast iron (HT250, QT450-10, etc.)
Load Capacity	20-500 kN (customizable)
Operating Temperature Range	-40°C to +120°C
Enclosure Rating	IP65/IP67
Lubrication Method	Splash Lubrication/Forced Lubrication
Gear Ratio	3:1 to 10:1 (customizable)
Weight	15%-20% lighter than cast steel gearboxes
Speed Range	80-350 km/h

Features of Railway Cast Iron Gearbox

Excellent vibration and noise reduction performance

The microscopic graphite structure of cast iron effectively absorbs gear meshing vibrations, reducing operating noise by 15%-20% compared to cast steel gearboxes. It is particularly suitable for applications requiring high levels of quietness, such as urban rail transit.

Excellent wear resistance and self-lubrication

The graphite content in cast iron forms a natural lubricating layer, reducing gear wear and extending the service life by 10%-15% compared to cast steel gearboxes under equivalent operating conditions.

Economical and efficient manufacturing advantages

The mature cast iron casting process allows complex gearbox structures to be formed in a single step, reducing processing costs by 25%-30% compared to cast steel and lowering scrap rates.

Strong corrosion resistance

Cast iron is naturally resistant to atmospheric and chemical corrosion, making it particularly suitable for coastal environments, high humidity, and de-icing salt environments. It can achieve a 30-year service life without the need for additional anti-corrosion coating.

Excellent thermal stability

Cast iron dissipates heat evenly, resulting in 50% less thermal deformation than cast steel under continuous high-load operation, ensuring long-term, precise gear meshing.

Balanced Lightweight and High Strength

Ductile iron (QT series) boasts a tensile strength exceeding 450 MPa, reducing weight by 15% compared to cast steel at equivalent strength, thereby reducing unsprung mass.

Application of Railway Cast Iron Gearbox

Heavy-Haul Freight

Leveraging cast iron’s wear resistance, it is suitable for heavy-haul railways such as the Daqin Line, with a single gearbox capable of withstanding torques exceeding 200 kN·m.

Operation in Cold Regions

Cast iron boasts superior low-temperature toughness to cast steel, maintaining excellent performance even at -50°C, making it a preferred option for severely cold regions such as Northeast China and Russia.

Urban Rail Transit

Leveraging cast iron’s vibration-damping properties, it effectively reduces noise pollution when subways/light rail transit pass through residential areas, with measured noise levels ≤75 dB.

Humid and Corrosive Environments

Using cast iron gearboxes on coastal railways and in tropical rainforests can prevent rusting of steel castings and reduce maintenance frequency.

Economical Railway Solutions

For cost-sensitive applications such as branch lines and dedicated lines for factories and mines, cast iron gearboxes offer the best value for money.

High-Speed EMU Auxiliary Drive Systems

Ductile iron gearboxes maintain strength while being lightweight, making them suitable for auxiliary power units in trains operating at speeds of 300 km/h and above.

Package of Railway Cast Iron Gearbox

Polybag + Carton box+ Wooden case/Pallet, according to customer’s request

Company Profile

Luoyang Fonyo Heavy Industries Co., Ltd. was founded in 1998, covers an area of 72,600㎡, with more than 300 employees, 32 technicians, including 5 senior engineers, 11 assistant engineers, and 16 technicians. It has been rated as Luoyang Engineering Technology Center, Luoyang Technology R&D Center, and National High-tech Enterprise for many times.
Our production capacity is 30,000 tons per year. Currently, we mainly produce cast steel, cast iron (gray iron, ductile iron, etc.), processing of finished product and component assembly for locomotive,railcar,high-speed trains, mining equipment,wind power,etc.Our products have been exported to Russia, the United States, Germany, Argentina, Japan, France, South Africa,Italy and other countries.

FAQS

Q1: Are you a manufacturer or trading company?
A: We are a manufacturer. Our company was founded in 1998, with nearly 30 years in casting industry, a total area of 72,600㎡, with a factory building area of 51,000㎡.
Q2. What are your main products?
A: We primarily focus on steel casting, iron casting, finished product machining, and component assembly production for locomotive, railcar, high-speed trains, mining equipment, wind power,etc.
Q3: How precision can you produce casting parts?
A: We have the capability of producing casting parts with different casting processes. The production is strictly comply with ISO 9001, ISO 14001 and ISO45001,EN15085, IRIS.
Q4. Can you produce according to the samples?
 Yes, we can produce by your samples or technical drawings. We can build drawings for you after we get your samples too.
Q5: How do you do Quality Control before delivery?
A: Quality inspection is a very important factor to guarantee the quality of steel casting parts. We follow 3 times of inspection during the whole production process. And we will provide material testing report, dimensional testing report, and mechanical properties testing report to our clients before delivery.

It you are interested in any products,please feel free to contact us.
