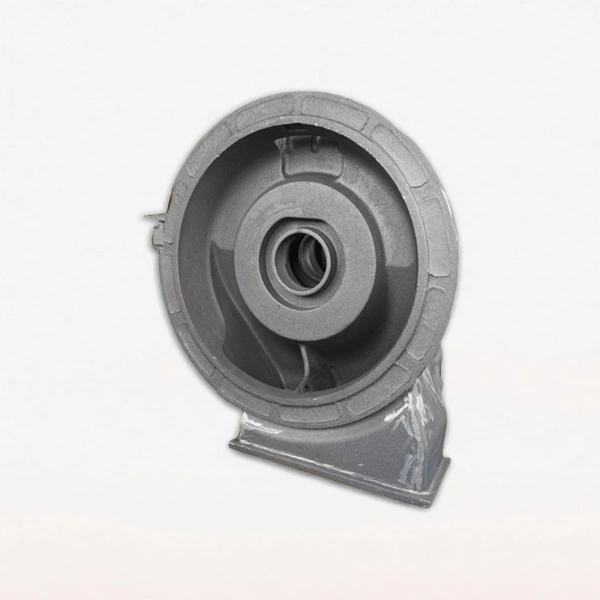

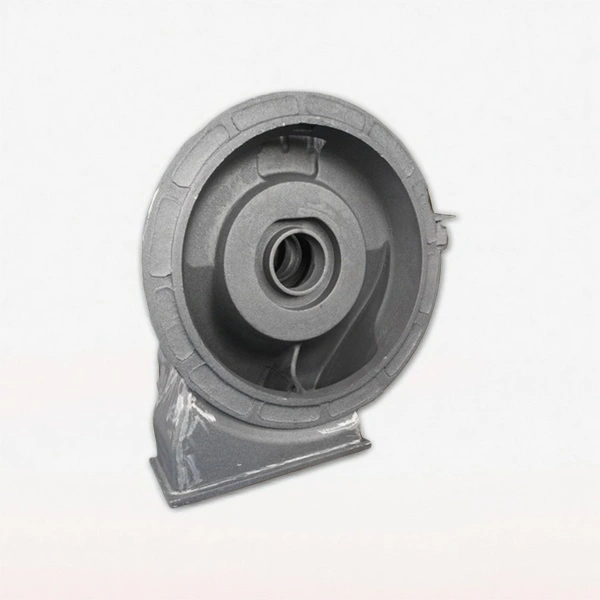

Railway Part Traction Motor End Cover for Rail Locomotives

Importance of Rail Locomotives Traction Motor End Cover

I Materials and Structural Design of Rail Locomotives Traction Motor End Cover

The motor end cover of the track locomotive, as a core protective component of the traction electrical system, integrates technologies from multiple disciplines such as mechanical engineering, materials science, and thermodynamics in its design. The main material is usually made of high-strength cast iron (HT250/HT300) or aviation-grade aluminum alloy (6061-T6), formed by a precision casting process, and the wall thickness tolerance is controlled within ±0.5mm. The composite end cover adopts a split structure design, including core functional areas such as the bearing chamber (tolerance grade IT6), labyrinth sealing groove (depth 8-12mm), and heat dissipation fins (spacing 5-8mm).

II. Core Performance Features of Rail Locomotives Traction Motor End Cover

1.Mechanical performance: The static load capacity reaches 120kN, and the dynamic vibration tolerance frequency range is 0-2000Hz, meeting the vibration requirements of Class B of the third category in EN 61373 standard. The roundness error of the bearing housing is ≤0.02mm, and the surface roughness is Ra0.8μm.

2.Sealing performance: IP67 protection grade, capable of resisting the intrusion of solids with a diameter of 2.5mm, and short-term immersion depth of 1m. The sealing system includes three layers of protection: The main seal adopts fluoro rubber O-rings (hardness 70±5 Shore A), the secondary seal is a labyrinth non-contact structure, and the auxiliary seal is equipped with a magnetohy dynamic device.

3.Thermal management capability: The heat dissipation coefficient reaches 25W/m²· K. Through the coordinated operation of 72 radial heat dissipation fins (with a total heat dissipation area of 1.2m²) and the forced air cooling system, the temperature rise of the bearing can be controlled within ΔT≤45℃.

III. Function Analysis of Rail Locomotives Traction Motor End Cover

1. Dynamic support system: Equipped with double-row tapered roller bearings (model 32218), the preload adjustment range is 0.05-0.15mm, and it is combined with the SKF grease lubrication system to achieve the automatic axial clearance compensation function.

2.Electromagnetic shielding design: The inner wall of the end cover is coated with a galvanized layer (50μm thick) combined with a conductive silicone gasket to form a continuous conductive path, which can attenuate electromagnetic interference (EMI) to below 30dBμV/m.

3. Fault Early Warning System: Integrating a temperature sensor (PT1000), a vibration accelerometer (±50g range), and a humidity detection module, it transmits status data in real time via CAN bus to achieve predictive maintenance.

IV. Application Scenarios of Rail Locomotives Traction Motor End Cover

1. Traction motor system: Suitable for permanent magnet synchronous motors (power class 1.5- 3MW), with a continuous operation life of up to 2 million kilometers in 350km/h high-speed EMUs. The specially designed air guiding structure can increase the flow rate of the cooling air to 25m/s.

2. Auxiliary power unit: When used in the compressor motor (power range 30- 150 kW), the sound insulation performance reaches 65dB(A)@1m, effectively reducing the operating noise of the equipment.

3. Regenerative braking system: Under the braking energy recovery condition, the heat capacity design of the end cover can instantly absorb 150kJ of heat energy. When used in conjunction with phase change material (PCM), the temperature rise rate is reduced by 40%.

V. Evolution of Innovative Technologies of Rail Locomotives Traction Motor End Cover

Additive manufacturing technology: The titanium alloy end cover manufactured by the selective laser melting (SLM) process has a weight reduction of 35% and a fatigue life increase of 2.8 times. The internal flow channel optimization design has increased the cooling efficiency by 22%.

Intelligent monitoring system: Based on fiber Bragg grating sensing technology, it can monitor the stress distribution of the end cover structure in real time, with a sampling frequency of 10 kHz and a spatial resolution of 5mm, achieving micron-level deformation detection.

Composite protective coating: Plasma-sprayed Al2O3-TiO2 ceramic coating (200μm thick), combined with diamond-like carbon film (DLC), makes the surface hardness of the end cover reach HV1200, and the salt spray corrosion resistance time exceeds 3000 hours.

VI. Quality Control System of Rail Locomotives Traction Motor End Cover

1. The manufacturing process implements the TS 22163 railway industry standard. Key dimensions are fully inspected by a three-coordinate measuring machine (CMM), and the measurement uncertainty is ≤1.5μm.

Environmental simulation tests include:

4. Temperature shock test (-40℃↔+150℃, 100 cycles)

Sand and dust test (concentration 10g/m³, duration 8 hours)

Salt spray test (5% NaCl solution, period 720 hours)

The reliability verification adopts the accelerated life test (ALT), simulating an equivalent operating mileage of 5 million kilometers, with the target failure rate value ≤ 0.5 FIT.

2. This technical analysis indicates that the motor end cover of modern rail locomotives has evolved from a single protective component to an intelligent system integrating mechanics, electronics and thermal management. Its technical parameters are directly related to the energy efficiency ratio of the traction system (increased by 15-20%), maintenance cycle (extended to 1.2 million kilometers), and operational safety (failure rate reduced to 0.02 times per million kilometers). With the integrated application of new materials and Internet of Things (IoT) technology, the end cover system is developing towards functional modularization, status visualization, and intelligent maintenance, continuously promoting technological innovation in rail transit equipment.

mainstream material	High-strength cast iron (HT250/HT300)
the level of mechanical indicators	Static load bearing capacity	120kN
	Dynamic vibration tolerance frequency range	0-2000Hz
sealing property	IP67 protection grade
thermal management capability	the heat dissipation coefficient reaches 25W/m²·K

Package of Rail Locomotives Traction Motor End Cover

Polybag+Carton box+Wooden case/Pallet, according to customer’s request

Company Profile

Luoyang Fonyo Heavy Industries Co., Ltd. was founded in 1998, covers an area of 72,600㎡, with more than 300 employees, 32 technicians, including 5 senior engineers, 11 assistant engineers, and 16 technicians. It has been rated as Luoyang Engineering Technology Center, Luoyang Technology R&D Center, and National High-tech Enterprise for many times.
Our production capacity is 30,000 tons per year. Currently, we mainly produce cast steel, cast iron (gray iron, ductile iron, etc.), processing of finished product and component assembly for locomotive,railcar,high-speed trains, mining equipment,wind power,etc.Our products have been exported to Russia, the United States, Germany, Argentina, Japan, France, South Africa,Italy and other countries.
