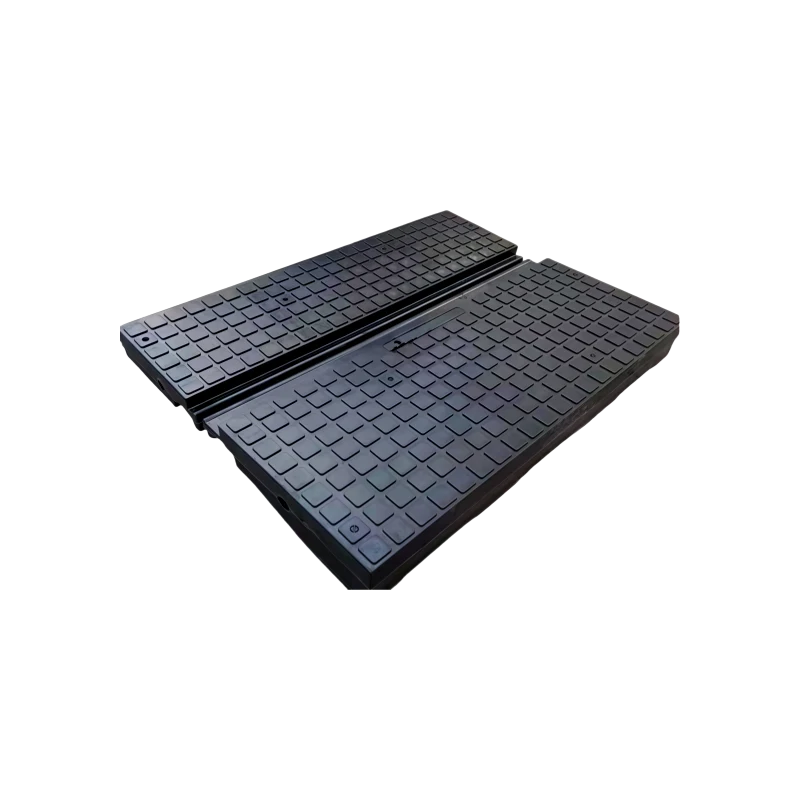

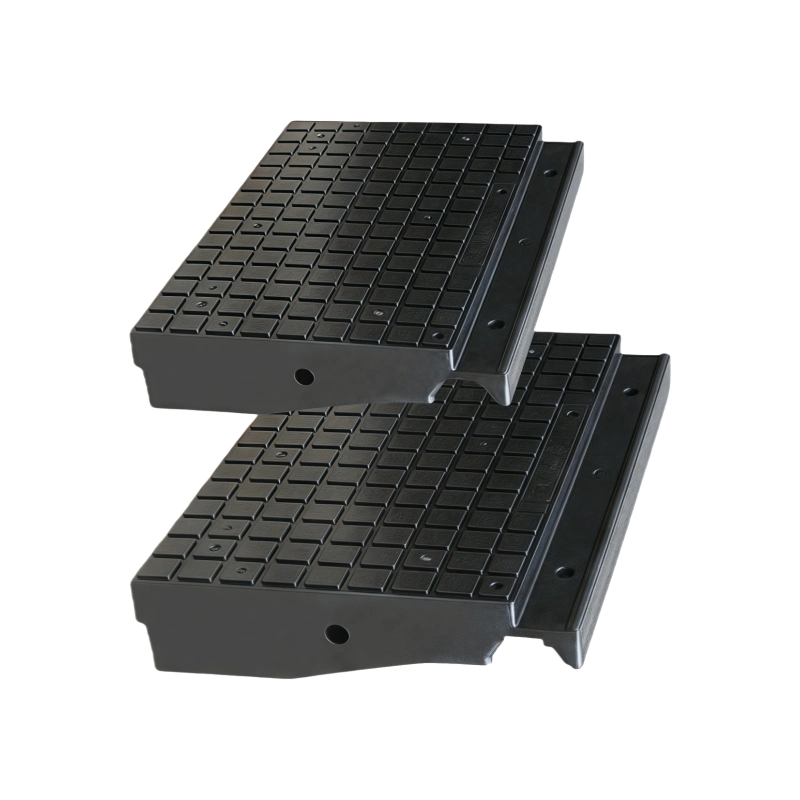

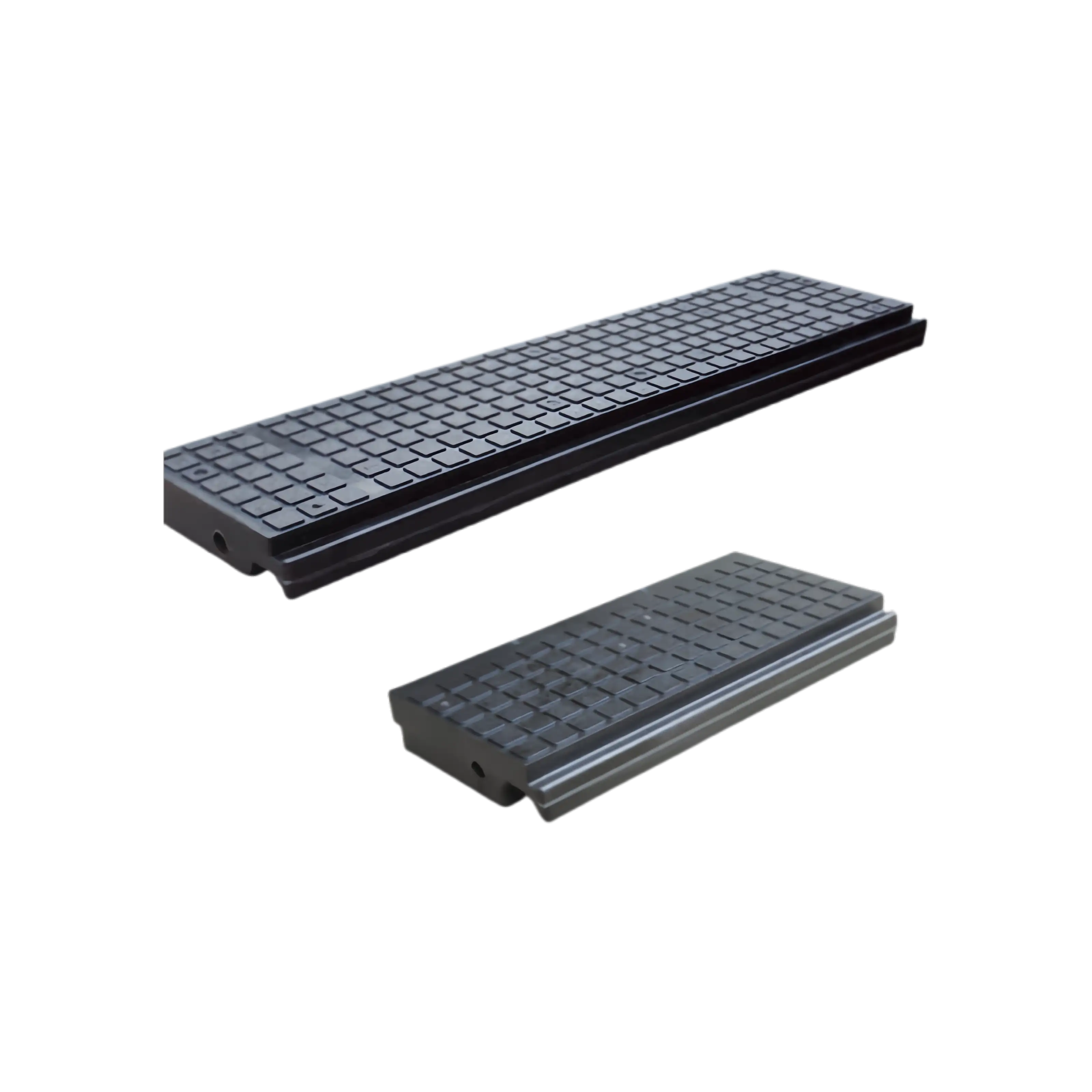

Railway rubber railway pad wear-resistant, non-slip and high-pressure rail speed reducer wire-embedded crossing board

Introduction to Railway Crossing Board

Railway crossing board, also known as rail speed brakes, are key equipment laid at level crossings between railways and highways (or other roads) to ensure the safe passage of trains, pedestrians and vehicles. Its core function is to disperse the huge impact force generated when a train passes through, prevent the road surface at the crossing from collapsing or being damaged, and provide a non-slip and wear-resistant surface to reduce the risk of traffic accidents.

Features of Railway Crossing Board

1) Materials and Processes
Rubber Embedded Wire Crossing Plates: A composite formula of natural rubber and styrene-butadiene rubber is used, embedded with nylon or meridian fibers to enhance tensile strength and wear resistance.
Concrete Rubber Composite Plates: A high-strength concrete base is combined with a rubber anti-slip layer, taking into account both load-bearing and anti-slip properties.
All-steel crossing plates: Hot-rolled steel plates are welded and formed, and the surface is galvanized or sprayed with an anti-corrosion coating, suitable for heavy-duty railways.
2) Performance Advantages
Shock and Noise Reduction: The rubber material can absorb more than 90% of vibrations and reduce noise pollution.
Anti-skid and wear-resistant: The surface has an anti-skid texture design, the friction coefficient is ≥0.8, and it is suitable for rainy and snowy weather.
Strong weather resistance: UV resistance, high and low temperature resistance (-40℃ to +80℃), and a service life of up to 10-15 years.
Convenient installation: modular design, single piece weight ≤150kg, supports quick splicing or bolt fixing.

Technical Parameter Table of Railway Crossing Board

Core Functions of Railway Crossing Board

1) Safety guarantee
The anti-skid surface reduces the risk of vehicle side slip, and the reflective logo improves night visibility.
The shock-absorbing design reduces the impact force when the train passes and protects the crossing structure.
2) Durability
The rubber material is aging-resistant and corrosion-resistant, and is suitable for harsh environments such as humidity and rain.
The all-steel material has strong impact resistance and is suitable for heavy-duty railways and mine dedicated lines.
3) Environmental protection and energy saving
The rubber crossing board can be recycled and complies with the EU REACH standard.
The shock-absorbing design reduces noise pollution and reduces the impact on surrounding residents.
4) Economical
Modular design reduces installation time and labor costs.
Long life cycle reduces replacement frequency and maintenance costs.

Application Scenarios of Railway Crossing Board

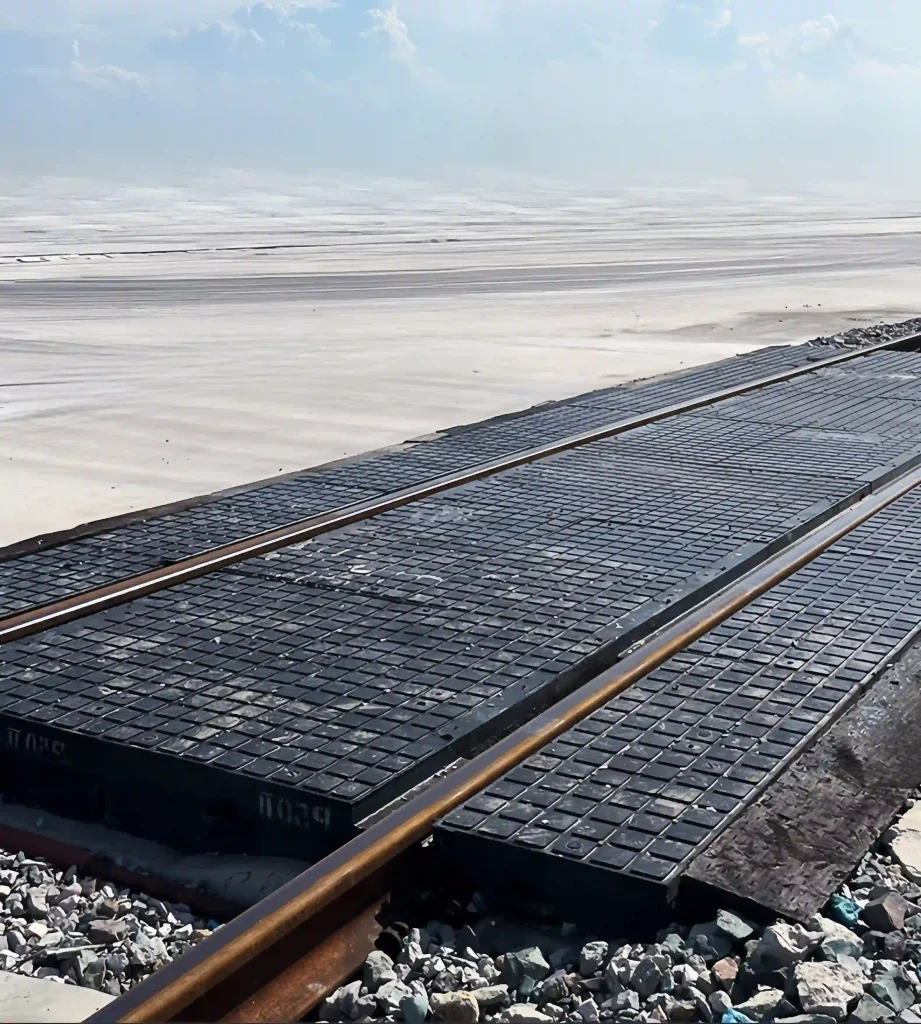

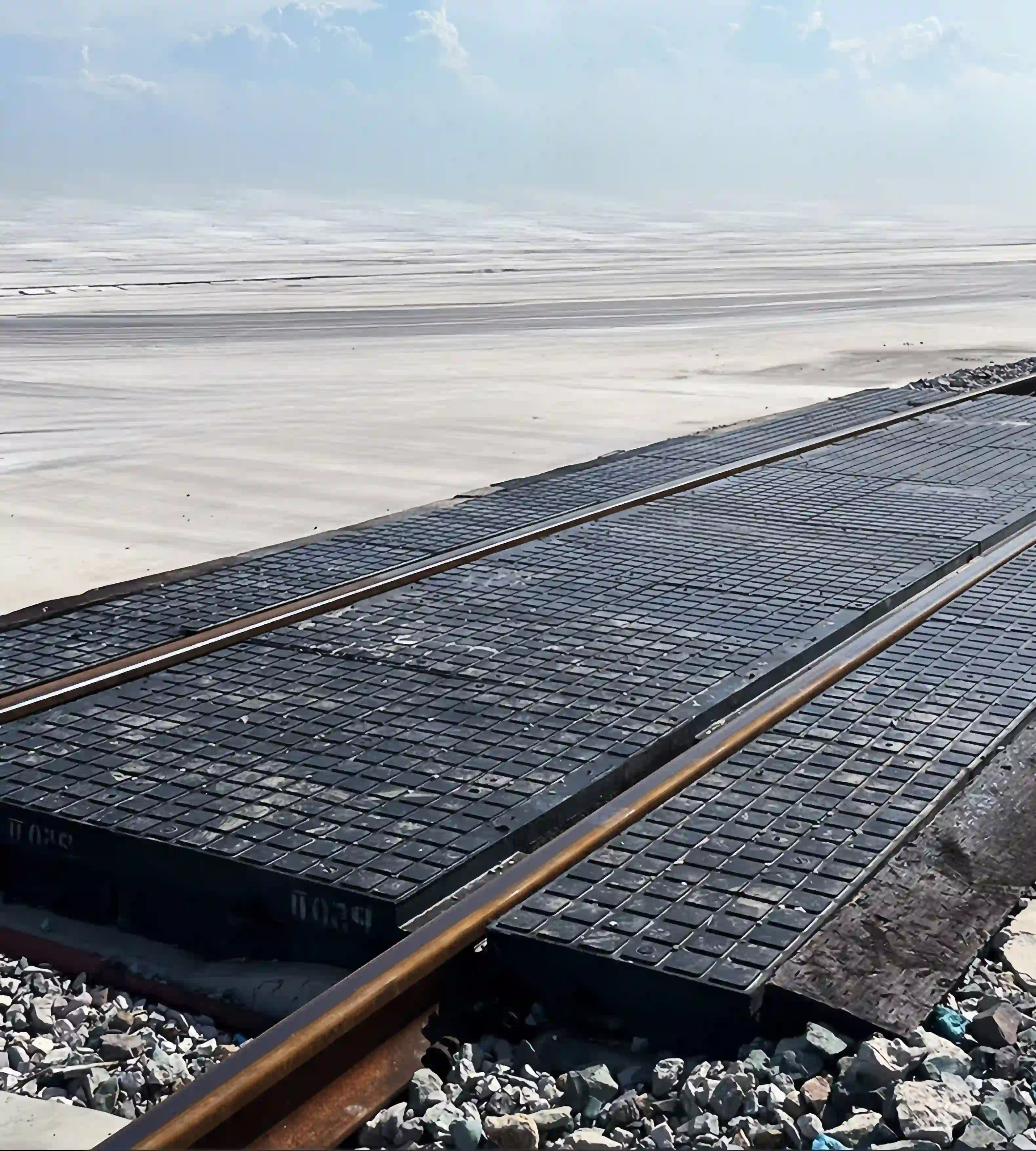

1) Railway and highway level crossings
Ordinary railways, heavy-load railways, and urban rail transit crossings.
2) Dedicated lines for industrial and mining enterprises
Intersections between railways and highways in mines, ports, and factories.
3) Special environment crossings
Crossings in complex areas such as bridges, tunnels, and elevated railways.
4) Temporary crossings
Construction temporary crossings, emergency rescue crossings, and other scenarios.

Customized Service for Railway Crossing Board

Material customization: rubber, composite materials, or all-steel materials are provided according to customer needs.
Size customization: support non-standard size production to adapt to different crossing widths and lengths.
Function expansion: optional intelligent devices such as solar warning lights and pressure sensors.

Package of Railway Crossing Plate

Polybag+Carton box+Wooden case/Pallet, according to customer’s request

Company Profile

Luoyang Fonyo Heavy Industries Co., Ltd. was founded in 1998, covers an area of 72,600㎡, with more than 300 employees, 32 technicians, including 5 senior engineers, 11 assistant engineers, and 16 technicians. It has been rated as Luoyang Engineering Technology Center, Luoyang Technology R&D Center, and National High-tech Enterprise for many times.
Our production capacity is 30,000 tons per year. Currently, we mainly produce cast steel, cast iron (gray iron, ductile iron, etc.), processing of finished product and component assembly.the products have been exported to Russia, the United States, Germany, Argentina, Japan, France, South Africa,Italy and other countries.

FAQS

Q1: Are you a manufacturer or trading company?
A:We are a manufacturer. Our company was founded in 1998, with nearly 30 years in casting industry, a total area of 72,600㎡, with a factory building area of 51,000㎡.
Q2. What are your main products?
A: We primarily focus on steel casting, iron casting, finished product machining, and component assembly production.
Q3: How precision can you produce casting parts?
A: We have the capability of producing casting parts with different casting processes. The production is strictly comply with ISO 9001, ISO 14001 and ISO45001,EN15085, IRIS.
Q4. Can you produce according to the samples?
 Yes, we can produce by your samples or technical drawings. We can build drawings for you after we get your samples too.
Q5: How do you do Quality Control before delivery?
A: Quality inspection is a very important factor to guarantee the quality of steel casting parts. We follow 3 times of inspection during the whole production process. And we will provide material testing report, dimensional testing report, and mechanical properties testing report to our clients before delivery.

It you are interested in any products,please feel free to contact us.
Contact: Stella Liu
Email:sales@railwaypart.com
Mobile: +86-15515351287
