Premium Quality Railway Wedge Product Details: Top Specs, Outstanding Features & Diverse Applications

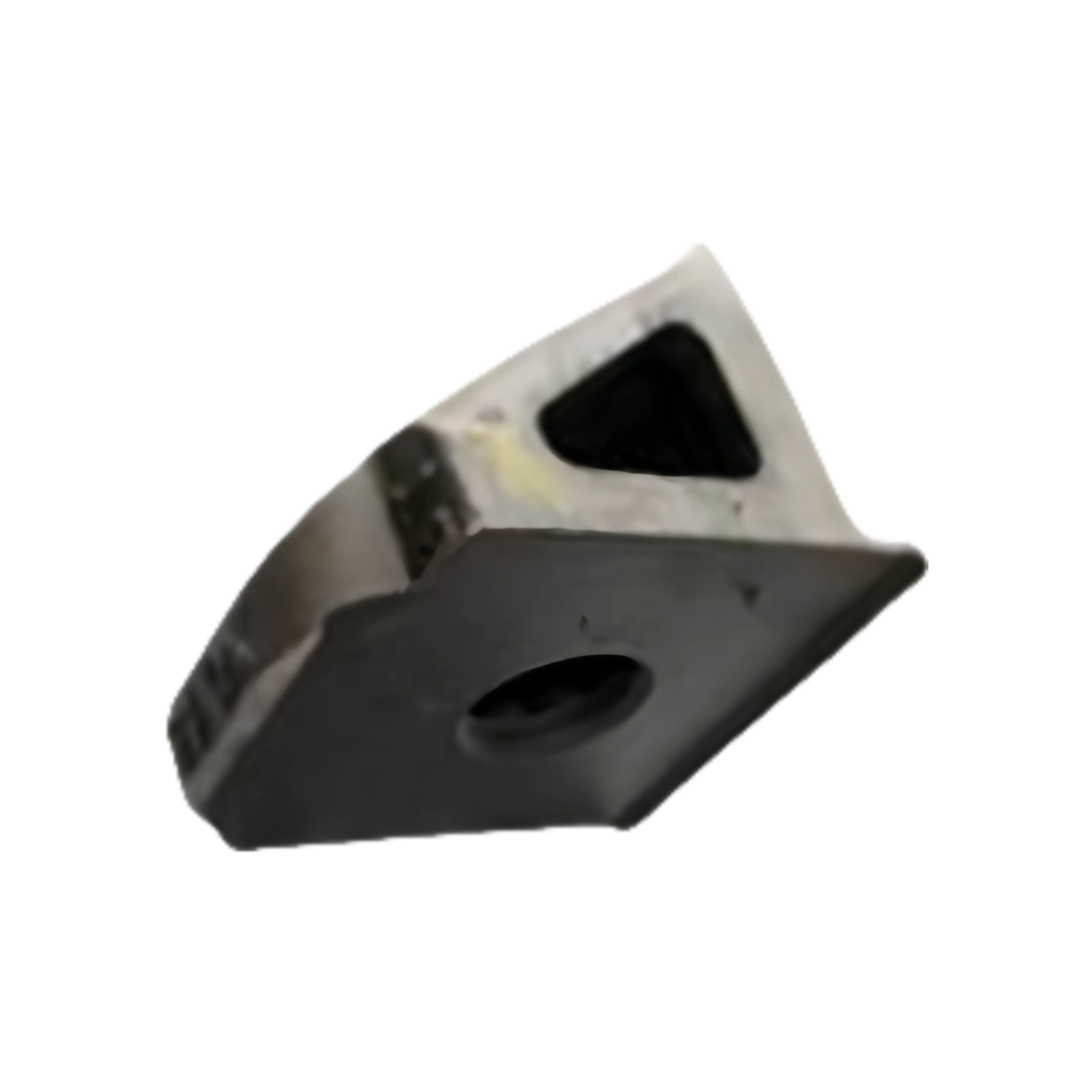

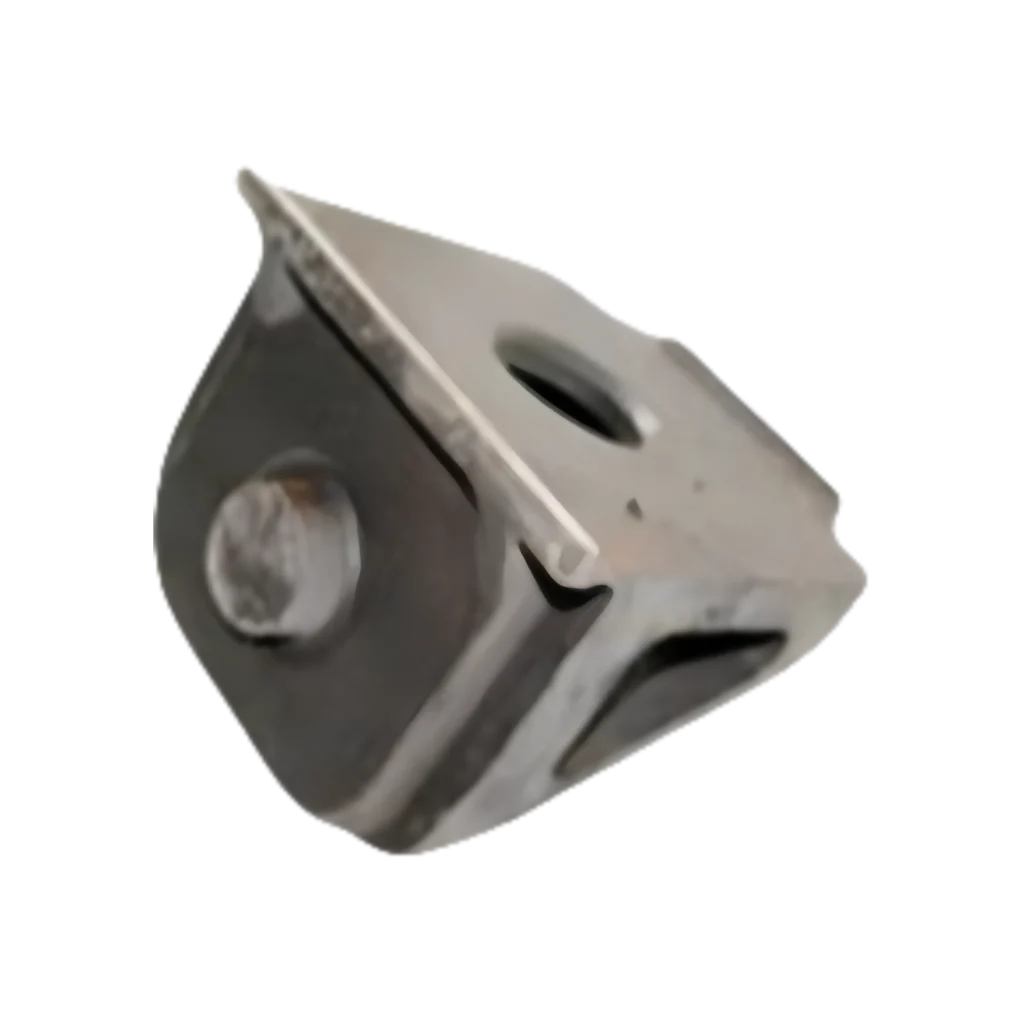

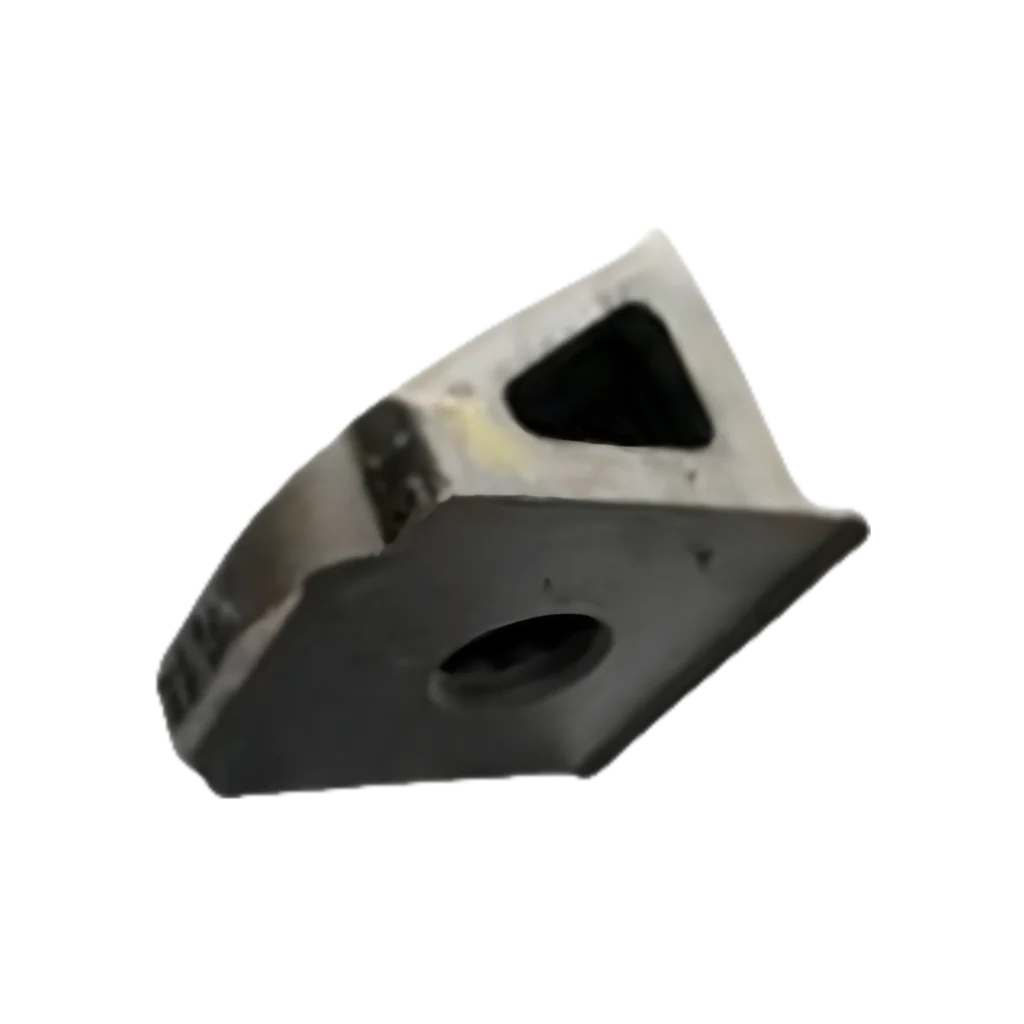

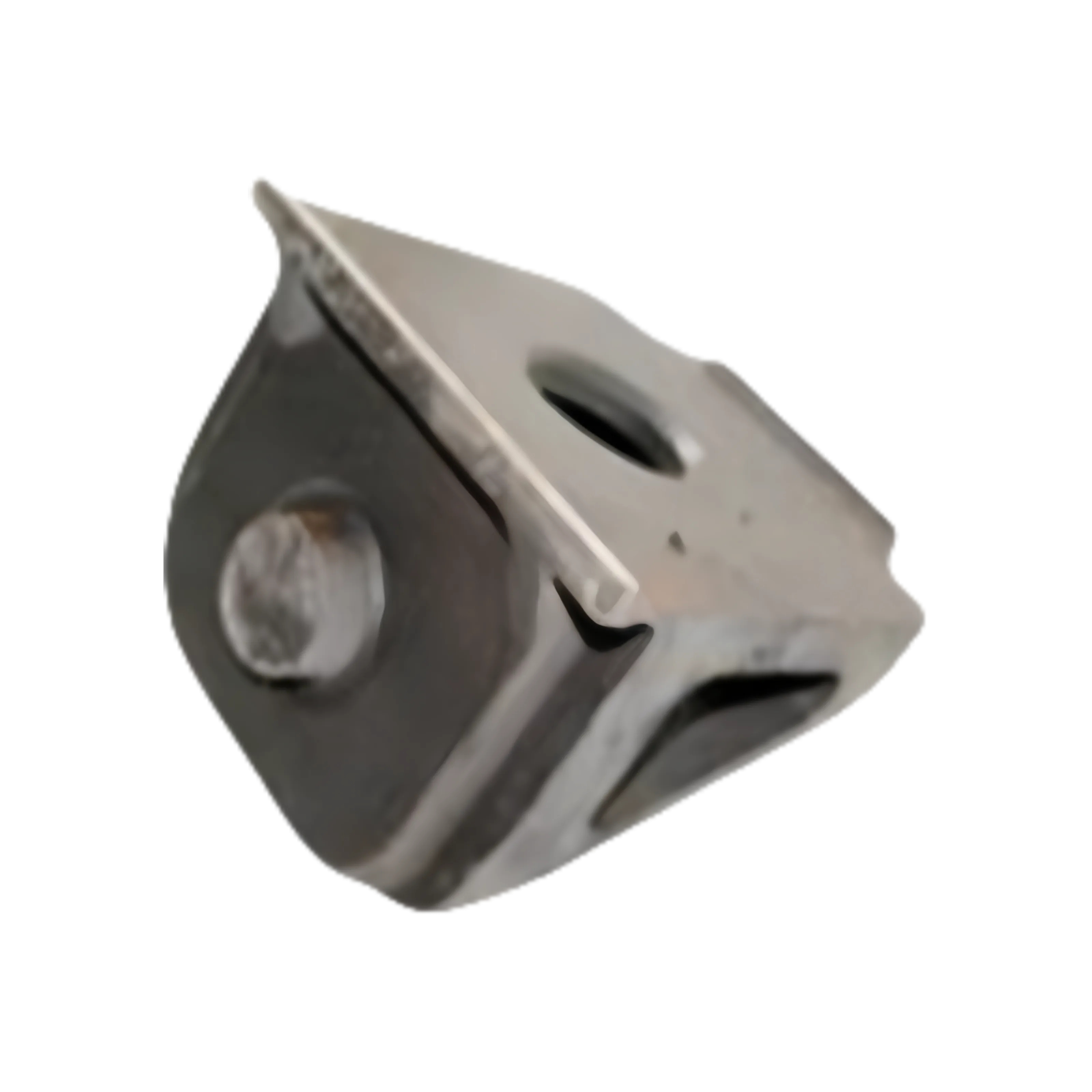

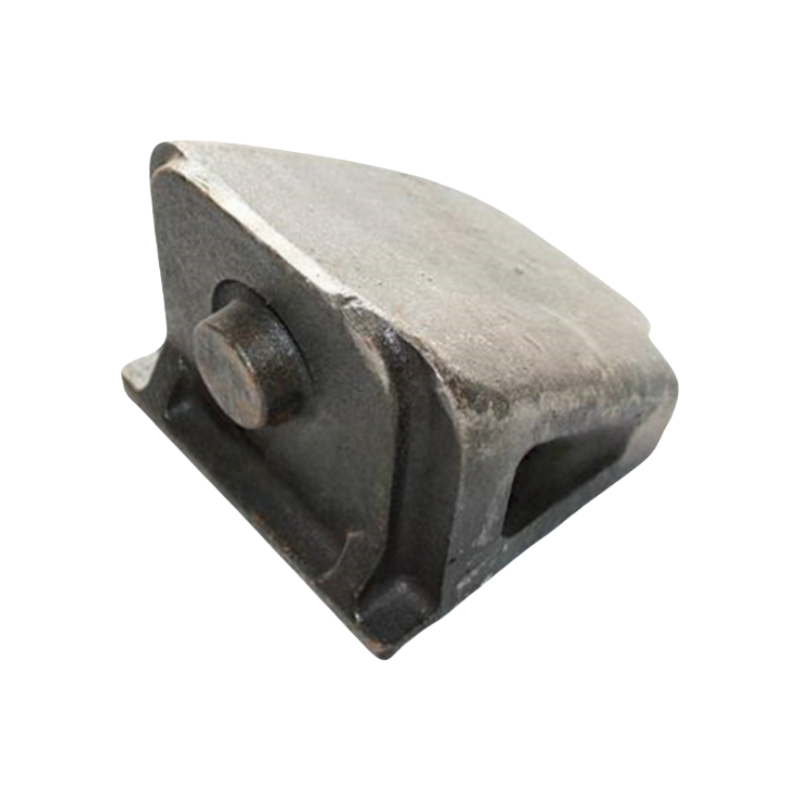

Overview of Railway Wedge

The railway wedge is one of the key components of the railway freight car bogie and plays a vital role in the operation of the vehicle. It is usually installed in the vibration reduction system of the bogie and works in conjunction with the side frame column wear plate, bolster wedge friction surface and other components to consume the vibration energy of the vehicle during operation through friction, convert the vibration and impact of the vehicle into heat energy and dissipate it, thereby effectively reducing the vibration and noise during the operation of the vehicle, improving the stability and comfort of the vehicle operation, and ensuring the safety and efficiency of railway transportation. Its design rationality and manufacturing quality directly affect the operation quality of railway freight cars and the service life of components.

Parameter Table of Railway Wedge

Features of Railway Wedge

• High strength and wear resistance: Made of high-quality alloy steel or cast iron, after a special heat treatment process, the bevel wedge has high strength and good wear resistance. It can maintain stable performance and shape, reduce wear and extend service life under the complex load and friction during vehicle operation for a long time.
• Accurate dimensional accuracy: Advanced processing equipment and precise manufacturing process are used to ensure that the dimensional accuracy of the bevel wedge meets strict design requirements. Accurate dimensions can ensure good coordination between the bevel wedge and other parts of the bogie, reduce vibration and noise during operation, and improve the stability of vehicle operation.
• Optimized friction performance: Through special treatment of the friction surface of the bevel wedge, such as surface quenching, shot peening and other processes, the hardness and roughness uniformity of the friction surface are improved, and the friction performance is optimized. During the operation of the vehicle, it can provide stable and appropriate friction, effectively consume vibration energy, and achieve good vibration reduction effect.
• Good anti-fatigue performance: The structural design fully considers the alternating load effect during vehicle operation, and adopts a reasonable structural form and reinforcement rib design to improve the anti-fatigue performance of the bevel wedge. It can withstand long-term, frequent vibrations and impacts without fatigue damage, ensuring the safe operation of railway freight cars.

Function of Railway Wedge

• Vibration reduction function: When a railway freight car runs on the track, various vibrations and shocks will be generated. The wedge converts the vibration energy of the vehicle into heat energy and dissipates it through the friction between the side frame column wear plate and the rocker wedge friction surface, thereby reducing the vibration amplitude during the operation of the vehicle and improving the stability of the vehicle operation.
• Guidance function: When the vehicle turns or passes through a curved track, the cooperation between the wedge and other parts of the bogie can guide the wheels to pass through the curve correctly, reduce the lateral force and wear between the wheel and the rail, and ensure the stability and safety of the vehicle operation.
• Load-bearing function: As an important part of the bogie, the wedge bears part of the weight of the vehicle and various loads during operation. Its high-strength material and reasonable structural design can ensure stable load-bearing under various working conditions and ensure the normal operation of the vehicle.

Application of Railway Wedge

Railway wedges are widely used in all types of railway freight car bogies, including but not limited to bogies of open wagons, covered wagons, flat wagons, tank wagons and other models. In railway freight transportation, whether it is the transportation of bulk goods such as coal and ore, or the transportation of special goods such as containers and mechanical equipment, the efficient operation of railway freight cars is indispensable. As a key component to ensure the operating quality of railway freight cars, railway wedges play an important role in improving the stability of vehicle operation, reducing wheel-rail wear, and extending the service life of vehicles, providing strong support for the safety and efficiency of railway freight transportation. At the same time, with the continuous development of railway technology and the improvement of vehicle operating performance requirements, railway wedges are also constantly innovating and optimizing technology to meet the needs of different models and operating conditions.

Package of Railway Wedge

Polybag+Carton box+Wooden case/Pallet, according to customer’s request
