High-strength railway enlarged, lengthened and thickened fish bolts with complete specifications for rail fish wire

Overview of Fish Wire

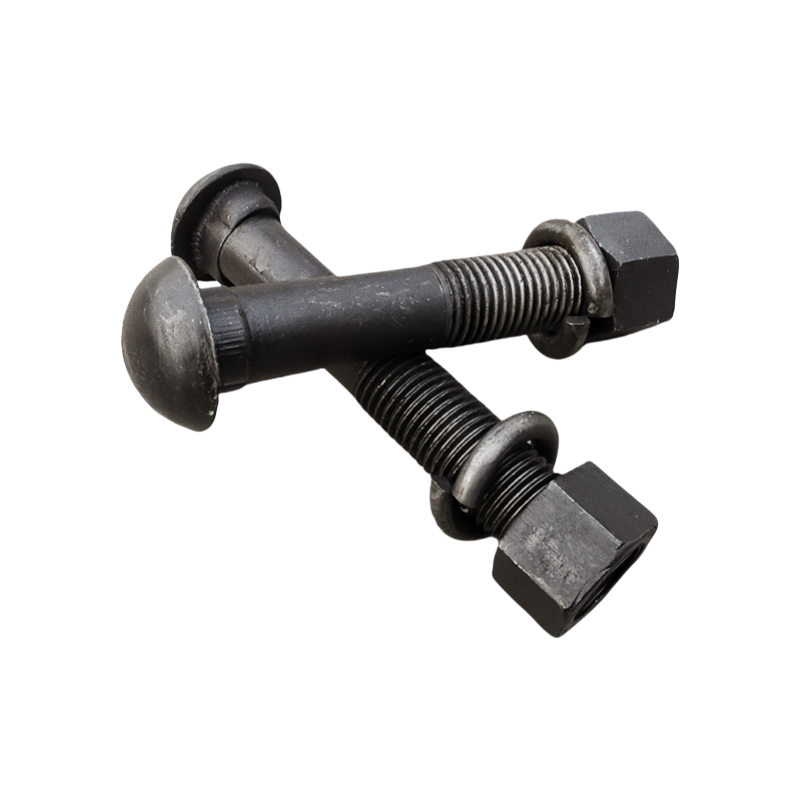

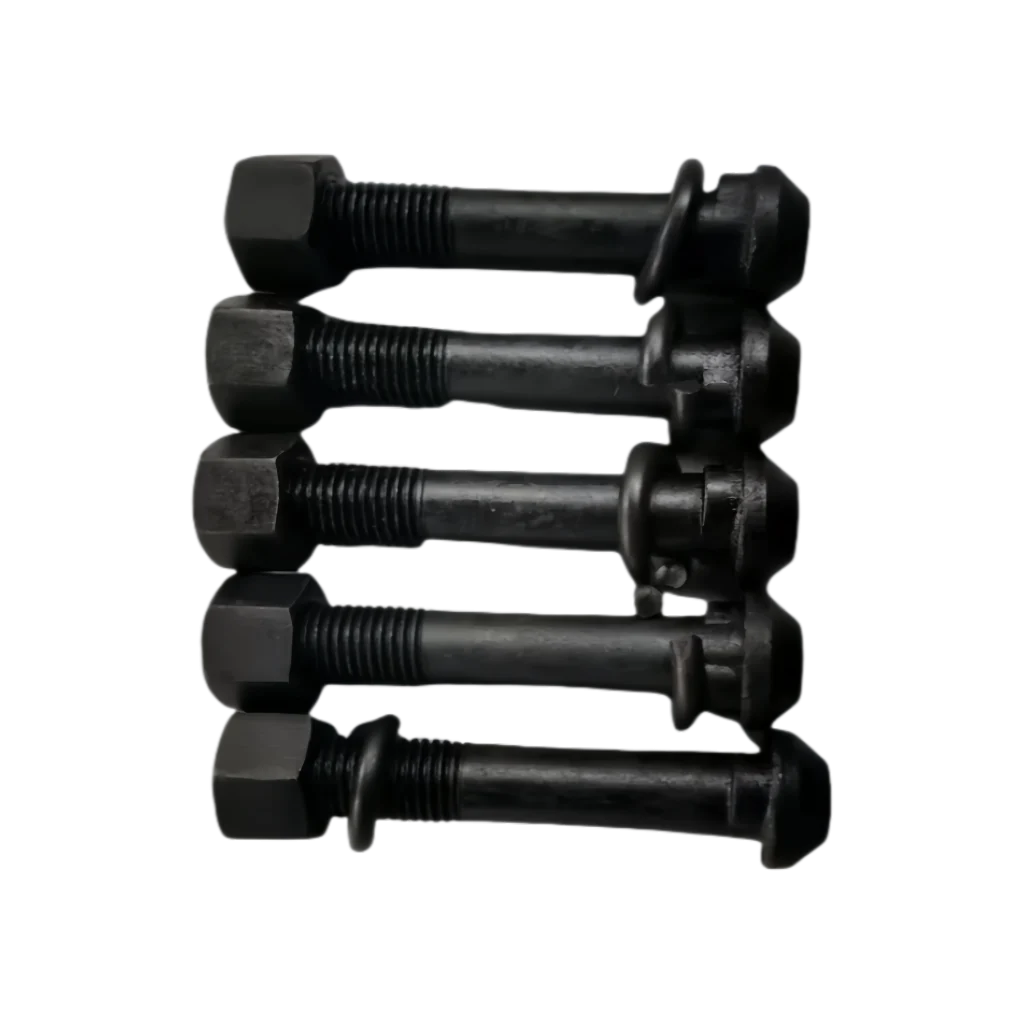

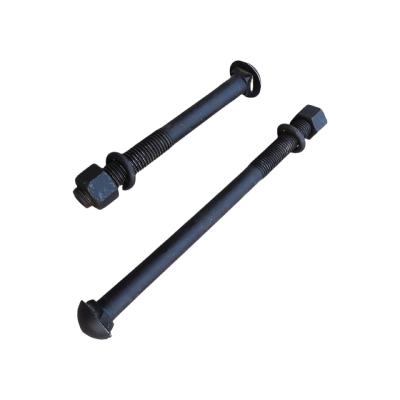

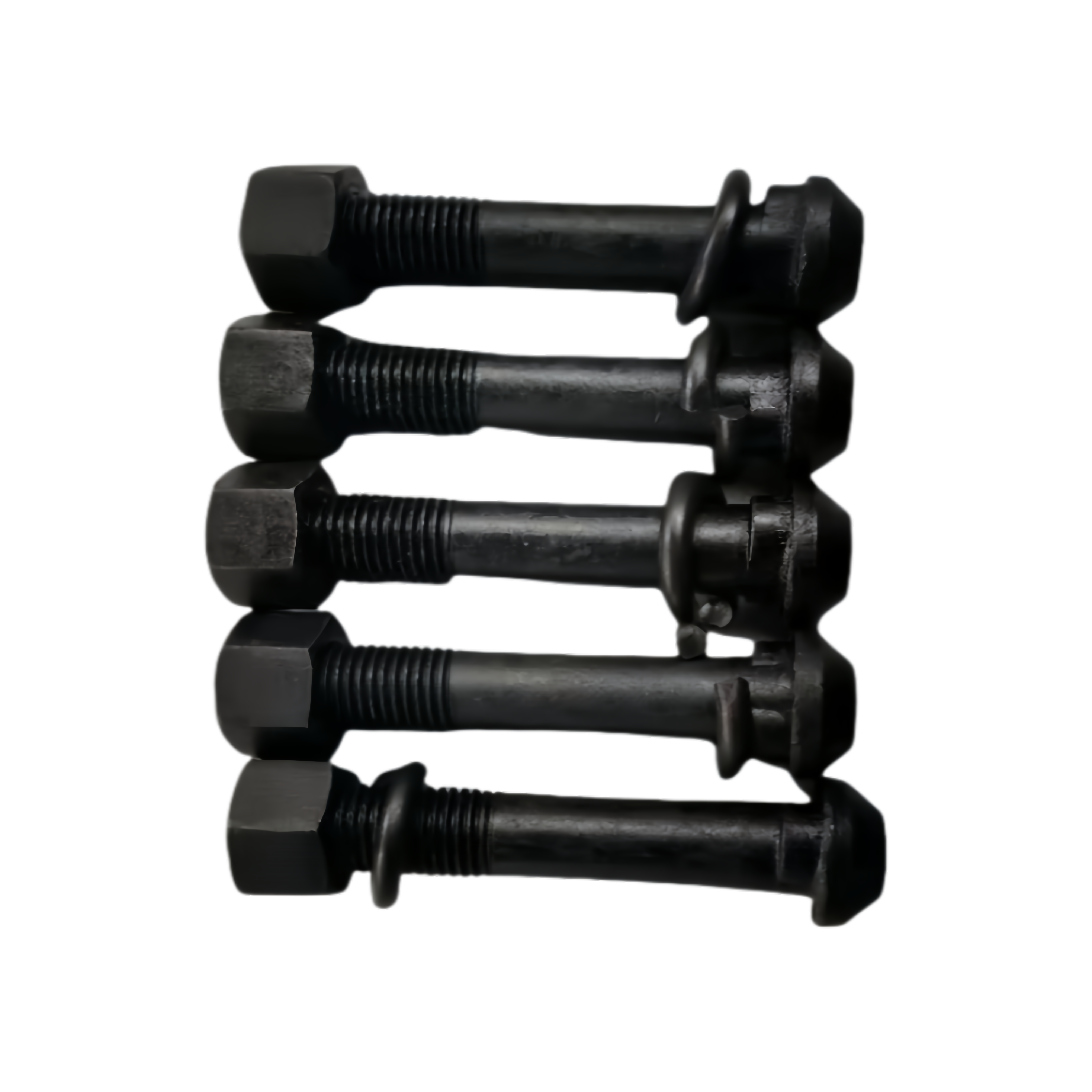

Fish wire (also known as railway screws or fish bolt) are key fasteners used to connect rails and fish plates (joint clamps) in track engineering. Its core function is to firmly connect the ends of adjacent rails through the cooperation of bolts and nuts to ensure the integrity and stability of the track system. This product is widely used in heavy-duty railway track laying in industries such as metallurgy, coking, and steel, as well as in urban rail transit, mining transportation, and other fields.

Features of Fish Wire

Structural features

• Head design: Ordinary fish bolts use a square head with a semi-spherical top surface, the head of the 8.8-grade high-strength bolt has two additional ridges, and the head of the 10.9-grade bolt is in the shape of a flat cone.
• Neck design: The elliptical neck cooperates with the elliptical hole of the fish plate to prevent the bolt from rotating.
• Thread process: Spade thread or roller thread is used to ensure that the thread accuracy meets the GB196-81 standard.

Material features

• Ordinary type: Q235 steel, tensile strength ≥400MPa, suitable for non-permanent connections.
• High-strength type: 45# steel, 20 manganese titanium boron steel, 35CrMoA, etc., tensile strength ≥800MPa (8.8 grade) or 1000MPa (10.9 grade), suitable for permanent connections.

Manufacturing process

• Hot pressing: Hot pressing by friction press, buckle length 50mm, to ensure dimensional accuracy.
• Cold heading: Some products use cold heading process to improve surface quality and mechanical properties.

Specifications table of Fish Wire

Performance of Fish Wire

• Tight connection: external force is transmitted through bolt pre-tension and friction to ensure that the rail joint remains stable under train load.
• Anti-loosening design: used with spring washers to prevent bolts from loosening due to train vibration.
  Corrosion resistance: the surface can be treated with galvanizing, Dacromet, etc. to improve corrosion resistance and extend service life.
• Reusability: ordinary bolts can be disassembled and reused, and high-strength bolts are usually used for permanent connections.

Application of Fish Wire

• Heavy-duty railway: Suitable for heavy-duty transportation tracks in the metallurgical, coking, and steel industries, bearing high-frequency, large-tonnage train loads.
• Urban rail transit: Rail joints in subway, light rail and other systems are tightened to ensure driving safety.
• Mining transportation: In the mine rail transportation system, it is used to connect rails and fishtail plates to adapt to harsh working conditions.
• Industrial rail: Internal rail transportation systems in factories, such as steel mills, coking plants, etc., meet high-strength connection requirements.


Package of Fish Bolts in Railway

Polybag+Carton box+Wooden case/Pallet, according to customer’s request
