High-Strength Anti-Seismic Hot-Dip Galvanized Steel Base Plates for High-Speed Railway Bridges

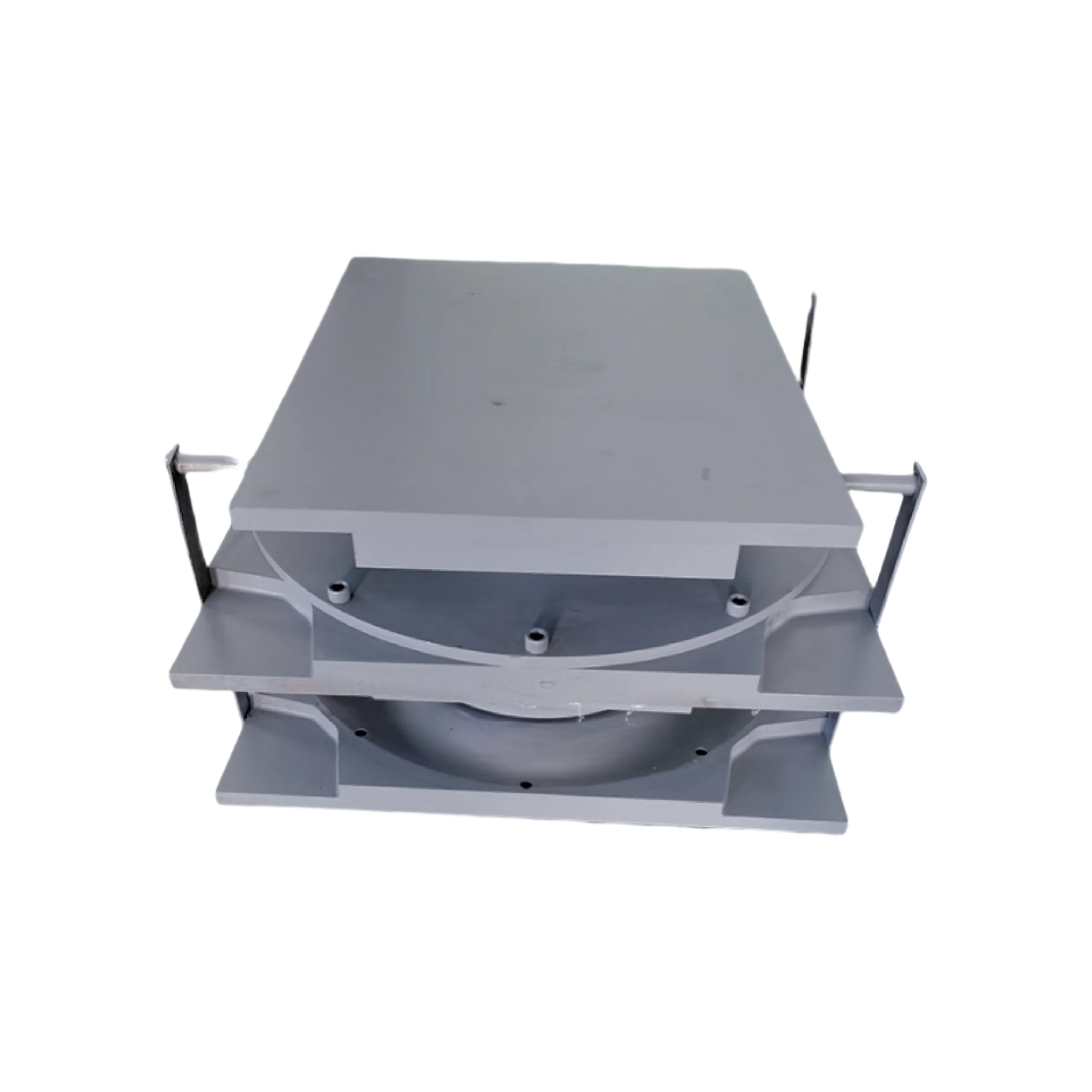

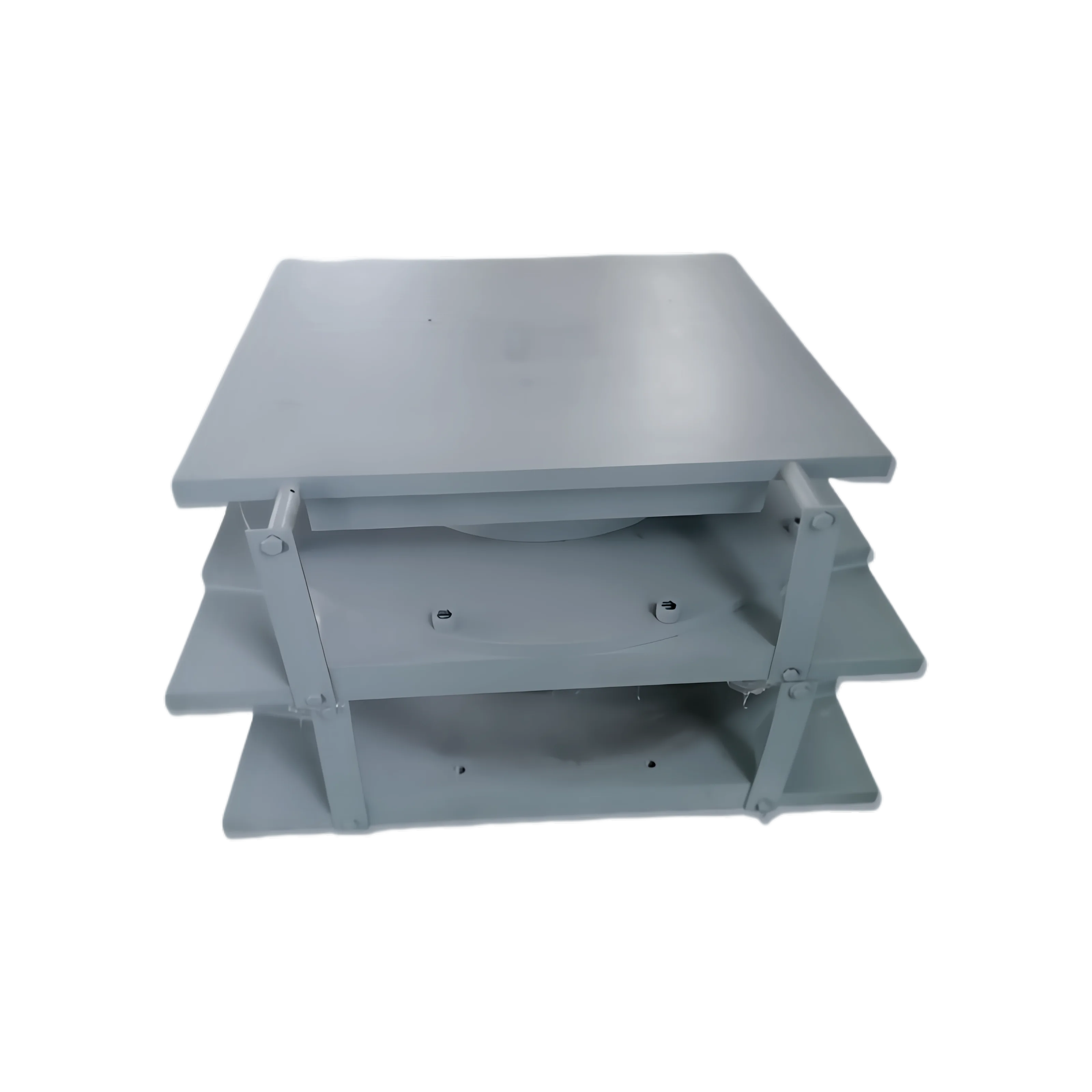

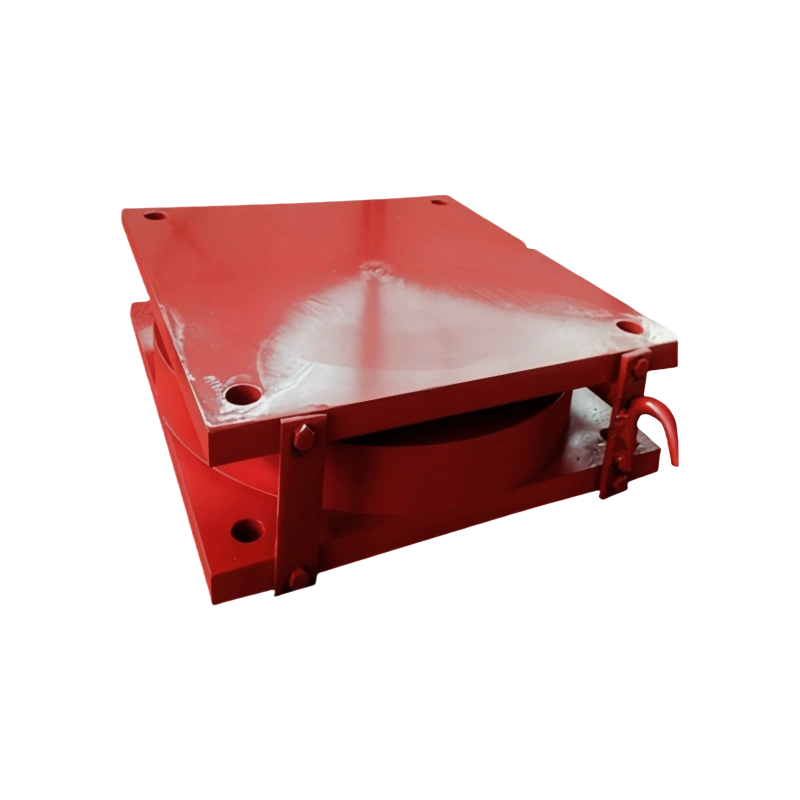

Overview of Base Plate

High-speed railway bridge embedded bearing steel baseplates (hereinafter referred to as “base plate”) are core embedded components used for the installation of bearing systems in high-speed railways and large bridge projects. They are made of high-strength hot-dip galvanized steel plates (such as Q345 materials). They are pre-embedded in concrete structures to provide a stable and flat installation base for the bearings, ensuring that the bridge load is evenly transferred to the lower structure. At the same time, they have anti-seismic, shock-absorbing and durability functions, and are key components to ensure the safe operation of high-speed railways.

Features of Base Plate

1.High strength and durability

• Q345 high-strength steel is used, with a tensile strength of ≥345MPa and a yield strength of ≥235MPa. It can withstand train loads, earthquake forces and environmental erosion, and has a service life of more than 50 years.
• Surface hot-dip galvanizing treatment (zinc layer thickness ≥85μm), corrosion resistance is improved by 3-5 times, and it is suitable for harsh environments such as high humidity and salt spray.

2.Precise positioning and seismic design

• The flatness error of the steel plate is ≤0.5mm, and the hole position deviation is ≤±1mm, ensuring that the support and the steel plate fit tightly to avoid bias or local stress concentration.
• The anti-slip coefficient is ≥0.6, and it can withstand horizontal displacement under earthquake and wind loads when filled with epoxy resin mortar.

3.Multifunctional adaptability

• It supports a variety of fixing methods such as bolt connection and welding, and is compatible with various types such as plate rubber bearings and spherical steel bearings
• The inclined steel plate can be customized according to the longitudinal slope requirements of the bridge to meet the longitudinal slope adjustment accuracy of ±3%.

4.Environmental protection and maintenance cost optimization

• Reduce the friction coefficient of the bearing to below 0.03, reduce the vibration and noise of train operation, and extend the bearing maintenance cycle to more than 10 years.

Features of Base Plate

Parameter Category	Technical indicators
Material	Q345 hot-dip galvanized steel plate
Thickness (mm)	12/16/20/25 (select according to load level)
Dimensions (mm)	Conventional: 400×400, 500×500, 600×600 Customization: Match according to the bearing model
Hole specifications	M16/M20/M24 bolt holes, spacing in accordance with GB/T 17955 standard
Galvanized layer thickness	≥85μm (neutral salt spray test ≥1000 hours)
Processing accuracy	Flatness ≤0.5mm, hole position deviation ≤±1mm
Implementation standard	TB/T 3320-2013 “Railway bridge plate rubber bearing”

Core functions of Base Plate

1.Load transfer and dispersion

• As the connection medium between the bearing and the concrete structure, the live load and dead load of the train are evenly transferred to the bridge pier to avoid concrete cracking caused by local stress concentration

2.Earthquake resistance and shock absorption

• Through high anti-slip coefficient and flexible connection design, it absorbs seismic energy, reduces the risk of shear deformation of the bearing, and ensures the integrity of the bridge structure

3.Improved construction efficiency

• The embedded design reduces on-site drilling and welding operations, shortens the construction period by more than 20%, and avoids secondary damage to the concrete structure

4.Reduced maintenance costs

• Reduce bearing wear and noise, extend the life of the bearing to more than 10 years, and reduce the maintenance cost of the high-speed rail throughout its life cycle.

Application scenarios of steel plate base

1.High-speed railway bridge engineering

• Applicable to the installation of bridge bearings on 350km/h lines such as the Beijing-Shanghai High-speed Railway and the Beijing-Guangzhou High-speed Railway, especially for complex working conditions such as cross-river and cross-sea bridges and elevated sections

2.Urban rail transit

• Pre-embedded bearings for subway and light rail bridges solve the problem of bearing positioning for special lines with small curve radius and large longitudinal slope

3.Existing bridge reconstruction

• In the old bridge reinforcement project, the bearing capacity is improved by pre-embedded plates to extend the service life of the bridge

4.Industry and construction

• Pre-embedded extension supports for large-scale plant and equipment foundations to provide high-precision connection nodes

Installation and quality control

Construction process

• Positioning and laying out → template fixing → steel plate spot welding → concrete pouring → maintenance → bearing installation

Key control points

• The horizontal error of the steel plate is ≤1/1000, and the elevation deviation is ≤±2mm
• Avoid direct impact on the steel plate during concrete pouring, and adopt a layered vibration process

Quality inspection

• Appearance inspection: no detachment of the galvanized layer and no deformation of the steel plate
• Mechanical properties: tensile test and bending test

Package of Base Plate

Polybag+Carton box+Wooden case/Pallet, according to customer’s request

Company Profile

Luoyang Fonyo Heavy Industries Co., Ltd. was founded in 1998, covers an area of 72,600㎡, with more than 300 employees, 32 technicians, including 5 senior engineers, 11 assistant engineers, and 16 technicians. It has been rated as Luoyang Engineering Technology Center, Luoyang Technology R&D Center, and National High-tech Enterprise for many times.
Our production capacity is 30,000 tons per year. Currently, we mainly produce cast steel, cast iron (gray iron, ductile iron, etc.), processing of finished product and component assembly.the products have been exported to Russia, the United States, Germany, Argentina, Japan, France, South Africa,Italy and other countries.

FAQS

Q1: Are you a manufacturer or trading company?
A: We are a manufacturer. Our company was founded in 1998, with nearly 30 years in casting industry, a total area of 72,600㎡, with a factory building area of 51,000㎡.
Q2. What are your main products?
A: We primarily focus on steel casting, iron casting, finished product machining, and component assembly production.
Q3: How precision can you produce casting parts?
A: We have the capability of producing casting parts with different casting processes. The production is strictly comply with ISO 9001, ISO 14001 and ISO45001,EN15085, IRIS.
Q4. Can you produce according to the samples?
 Yes, we can produce by your samples or technical drawings. We can build drawings for you after we get your samples too.
Q5: How do you do Quality Control before delivery?
A: Quality inspection is a very important factor to guarantee the quality of steel casting parts. We follow 3 times of inspection during the whole production process. And we will provide material testing report, dimensional testing report, and mechanical properties testing report to our clients before delivery.
