मशीनिंग से पहले रेलवे कास्टिंग के लिए शॉट ब्लास्टिंग एक महत्वपूर्ण कदम क्यों है?

Railway castings are used in many important parts of trains, like wheels, frames, and connectors. These parts are often thick, heavy, and have complex shapes. They need to be very safe and strong.
To make sure they last a long time, we must take care of their surface and inside stress. Shot blasting is a key step to make railway castings reliable.

What Is Shot Blasting for Railway Castings?

Shot blasting for रेलवे कास्टिंग is like giving the metal part a deep clean and a good workout. We use a machine to throw tiny steel balls at the casting at very high speed.
This process cleans off dirt, sand, and rust left from making the part. It also makes the surface smooth and even.

Unlike cleaning by hand, the machine can reach every corner of a complex casting. This makes sure the whole part is treated the same way.

Surface Challenges in Railway Castings

When रेलवे कास्टिंग are made and cooled down, they often have some problems:

• Sand from the mold sticks to the surface.
• A layer of scale (like rust) forms on the outside.
• The surface might look and feel rough in some places.
• Internal stress builds up because some parts cool faster than others.

If we don’t fix these, the part might not work as well, paint might not stick, and it could get tired and crack sooner.

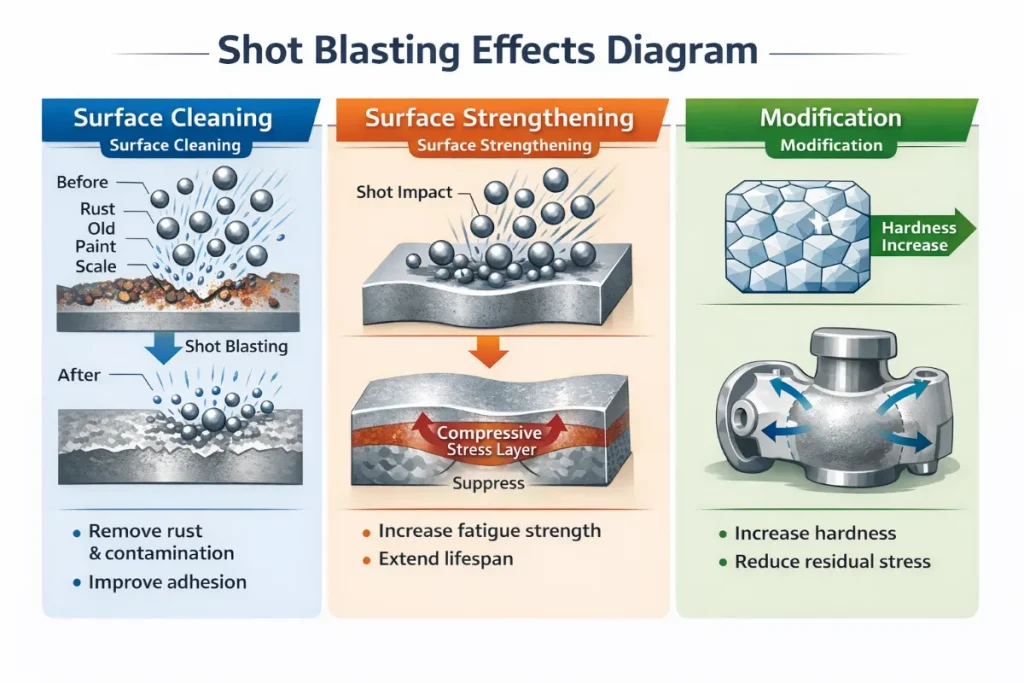

Why Shot Blasting Is Essential for Railway Castings

1. Thorough Surface Cleaning
The main job of shot blasting is to clean the casting completely. The fast-flying steel balls knock off all the sand, scale, and dirt.
A clean surface lets us check the part properly for hidden cracks or problems before it is used.

2. Improved Surface Consistency and Appearance
Because castings have complex shapes, their surface can be uneven. Shot blasting makes the surface texture the same everywhere.
This not only looks better but also makes the next steps, like painting or machining, much easier.

3. Enhanced Coating and Corrosion Protection
Railway castings work outside, facing rain and changing weather. We paint them to protect from rust.
Shot blasting creates a slightly rough surface (like very fine sandpaper) that helps the paint stick on tightly. This means the paint lasts much longer, and the part doesn’t rust easily.

4. Residual Stress Redistribution
When the casting cools, stress builds up inside, like a spring being pressed. This can cause the part to change shape or even crack later.
Shot blasting helps to relax the stress on the surface. It makes the internal pressure more even, so the part stays stable and strong during use.

Shot Blasting and Defect Detection

A clean surface is very important for checking quality. After shot blasting, we can see the real metal surface clearly.
This makes it much easier to find any small cracks or defects using special lights or tests. It’s like having a clear window to see the part’s health.

Shot Blasting vs. Other Surface Cleaning Methods

Shot Blasting vs. Manual Cleaning
Cleaning by hand takes a long time and depends on the worker’s skill. The result can be different each time.
Shot blasting is automatic, तेज़, and gives the same good result every time, all over the part.

Shot Blasting vs. Sand Blasting
Sand blasting mostly just cleans. Shot blasting does more.
The steel balls we use can be used again and again. They hit the surface with more energy, which not only cleans but also makes the surface stronger. This is why it’s better for heavy railway parts.

Process Control in Shot Blasting for Railway Castings

To get the best result, we need to control the process carefully. We choose the right size and type of steel balls, control their speed, and make sure every area is covered.
Our machines are set up to do this the same way for every single casting.

Role of Shot Blasting in Railway Standards and Applications

The railway industry has very high safety rules. Shot blasting helps us meet these rules by making sure every casting has a strong, clean, and reliable surface.
For very important parts like train wheels, this process is even more critical for safety and long life.

Our Expertise in Railway Castings Manufacturing

At Luoyang Fonyo Heavy Industries Co., लिमिटेड., we use shot blasting for every railway casting we make. It is a standard and important step in our factory.
Along with our other careful processes, it ensures we deliver strong and safe parts to our customers.

We are reliable partner for high-quality railway castings and components.
Please visit our website to know more about us www.railwaypart.com
