The secret of high-speed rail “flying close to the ground”: a magical journey from electricity to wind

When you sit on a high-speed train at a speed of 300 kilometers per hour, the scenery outside the window is like a movie with the fast-forward button pressed. You may be curious: How can this 400-ton “iron dragon” be awakened, accelerated, and maintain precise “flying close to the ground”? The answer lies in the coordinated dance of three core components – pantograph power collection, gearbox speed change, and wheelset track grip. Next, we use the method of disassembling a toy car to reveal the “running code” of the high-speed rail step by step.

1. Awakening: “Magic Conversion” from Wires to Electricity

The energy source of the high-speed rail is the 25,000-volt high-voltage wire (contact network) overhead. If the high-speed rail is compared to a giant mobile phone, this power supply system is its “charger + data cable”:

Pantograph (data cable): The “slide” on the top of the high-speed rail contacts the contact network, and introduces high-voltage electricity into the car like a mobile phone charging cable plugged into a socket;

Transformer (charger): The high-voltage electricity is reduced by the transformer from 25,000 volts to a voltage suitable for motor use (similar to a mobile phone charger converting 220 volts to 5 volts);

Inverter (current translator): The high-voltage direct current is “translated” into alternating current by the inverter, driving the traction motor to rotate – this step is like translating English into Chinese, allowing the motor to “understand” the current instructions.

Key data: The power consumption of the motor in each carriage is equivalent to lighting 1,000 100-watt light bulbs at the same time, but the conversion efficiency is as high as 95%, and the loss is only equivalent to that of an energy-saving lamp.

2. Acceleration: The “force amplification” of the gearbox

The traction motor starts to rotate after being powered on, but its speed (4000 rpm) is too fast, and the force is too small. If it is directly connected to the wheel, the high-speed rail will “slip on the spot”. At this time, the gearbox comes on the scene – it is like the transmission of a bicycle, amplifying the small circle force of the motor into a large circle force:

Gear engagement: The small gear of the motor (20 cm in diameter) is engaged with the large gear of the wheel (60 cm in diameter). The motor rotates 4 times, and the wheel only rotates 1 circle, but the force is amplified 3 times;

Torque output: After the gearbox changes speed, the single-axis traction force can reach 30 tons (equivalent to 30 cars hanging on your car), pushing the high-speed rail from static to 300 kilometers per hour;

Lubrication protection: The gearbox is filled with special gear oil, like a “lubricating hot spring” for the gears, reducing friction loss and ensuring zero delay in power transmission.

Life analogy: The role of the gearbox is like using a long wrench to tighten a screw – the hand turns a small circle and the screw turns a large circle, which is labor-saving and efficient.

3. Running: The “Friction Ballet” of Wheels and Rails

The power output by the gearbox is finally transmitted to the wheels, and the friction between the wheels and the rails becomes the “fuel” for the high-speed rail to move forward. But how to ensure that the friction is large enough without letting the wheels “slip” or “derail”?

Adhesion control:

The computer monitors the wheel-rail friction in real time. If it finds that the wheels are turning too fast but the speed is not keeping up (similar to tire idling), it will automatically reduce the power output.

When the rails are slippery on rainy and snowy days, the automatic sandblasting device sprays fine sand between the wheels and rails to increase friction (similar to car anti-skid chains).

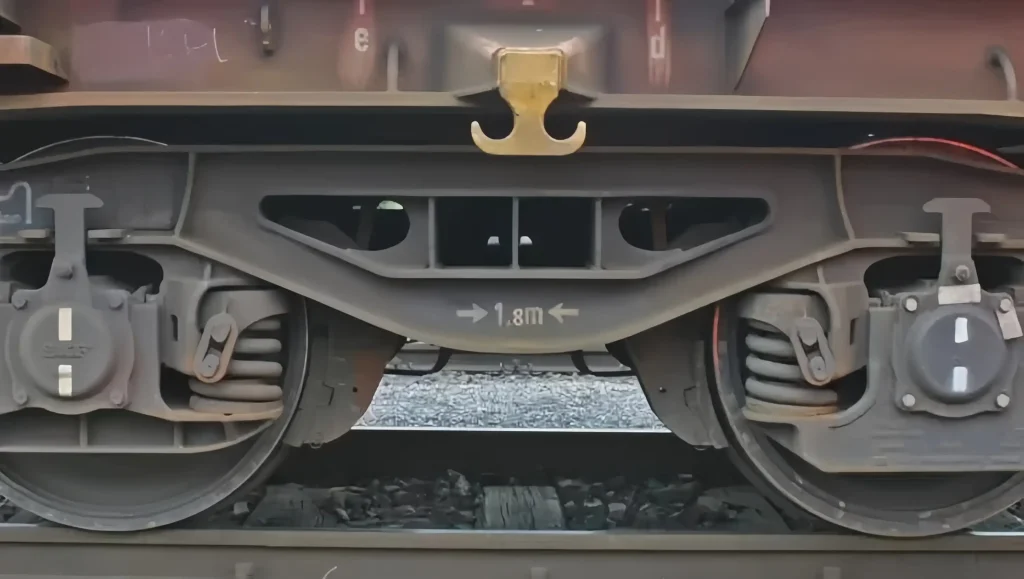

Bogie “legs”:

Lateral constraint: The raised “rim” on the inside of the wheel is like a seat belt, which clamps the inside of the rail to prevent derailment;

Longitudinal shock absorption: The primary suspension (conical rubber spring) buffers high-frequency vibrations, and the secondary suspension (air spring) absorbs bumps, making the high-speed rail as flexible as a snake when turning (minimum turning radius 145 meters).

Braking “emergency stop”:

When decelerating, the gearbox transmits torque in reverse, converting kinetic energy into electrical energy and feeding it back to the power grid, with an efficiency of 85%.

When emergency braking, the brake pads rub against the brake discs, converting kinetic energy into heat energy (the temperature of the brake discs can reach 600℃), like stepping on the “invisible brake” for the high-speed rail.

Extreme challenge: On the 30‰ slope of Qinling Mountains (equivalent to climbing 30 meters for every 1000 meters forward), the high-speed rail single-axis traction must reach 40 tons. The gearbox optimizes the gear modulus (tooth surface contact strength increases by 30%) to ensure that “climbing is like walking on flat ground.”

4. Future evolution: smarter and greener high-speed rail

Intelligent bogies:

Active suspension: The suspension stiffness is adjusted in real time through electromagnetic actuators to keep the train stable in strong winds (wind speed 30 meters/second);

Self-diagnosis system: Built-in vibration sensors monitor the bearing status, and predictive maintenance reduces the failure rate by 60%, just like installing a “physical examination instrument” on the high-speed rail.

Green gearbox:

Lightweight materials: Use lightweight materials to reduce weight by 20% and reduce energy consumption.

Energy recovery: Integrated micro generator converts braking friction heat into electrical energy for on-board equipment to achieve “zero-loss braking”.
