How Heat Shapes the Quality of Large Railway Castings

Large railway castings are very important parts of trains. They include things like wheels, axle boxes, and other structural pieces. These parts must handle heavy loads, high speeds, and constant shaking. How well and how reliably they work depends on carefully controlling their heat behaviour, inner structure (microstructure), and strength properties.

This article brings together our detailed series on railway castings. We combine what we learned from the first two articles—about shrinkage, porosity, and feeding and about thermal stress and cracking—to explain how heat affects the whole casting process and how the parts perform over time.

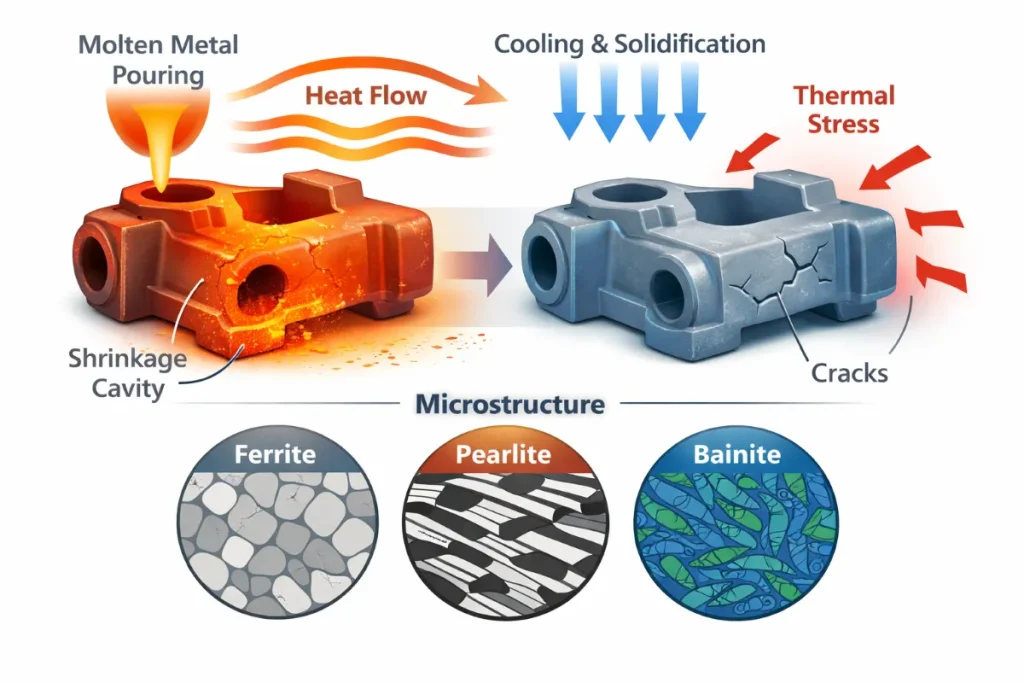

1. Thermal Behaviour in Railway Castings

When liquid steel is poured into a mould, it starts to cool and become solid. Thermodynamics decides which material phases are stable and how the metal changes. Controlling temperature is very important because if some parts cool faster than others, it can lead to flaws or weak spots.

In the first article of this series, we talked about how shrinkage and porosity form during solidification. These flaws happen when the metal shrinks as it cools, and not enough liquid metal fills in the gaps. Knowing this helps engineers design better moulds and risers to reduce empty spaces inside the casting.

Even small differences in cooling can change the casting’s final properties a lot. Thermodynamic principles help engineers predict these changes and make sure a strong inner structure forms correctly.

2. Microstructure and Mechanical Properties

Microstructure is how the metal is arranged inside the casting. It includes phases like ferrite, pearlite, and bainite. Each phase gives the casting different useful qualities:

• Ferrite gives toughness and helps absorb shock.
• Pearlite adds hardness and resistance to wear.
• Bainite offers a good mix of strength and toughness for tough conditions.

By controlling how fast the casting cools and what it’s made of, engineers can create a balanced inner structure. This balance makes sure the casting can resist cracking, bending, and wearing out under heavy use.

Our second article, Thermal Stress and Cracking in Railway Castings, showed that even a casting with no flaws can fail if the stress locked inside is not managed. This shows that a good inner structure is not enough—how heat moves and how stress spreads are also very important.

3. The Role of Thermal Stress

Thermal stress is the final key to casting quality. As the metal cools, different sections shrink at different speeds. Uneven shrinking creates internal stress, which might cause cracks much later, even after the part is made.

Understanding how cooling patterns affect stress helps engineers change the mould design, pouring temperature, and heat treatment steps. For large railway castings, managing this thermal stress is essential to stop failures when the train is running.

Advanced tools like finite element analysis (FEA) and 3D laser measurement let engineers simulate cooling and stress on a computer. These methods make sure every casting meets strict safety and performance rules before it leaves the factory.

4. Applying Knowledge Across the Railway Castings Process

The quality of a railway casting depends on controlling heat from start to finish:

1. Casting Stage – Good mould design and controlled pouring prevent shrinkage and porosity.
2. Cooling Stage – Controlled cooling lowers leftover thermal stress and helps form the right inner structure.
3. Heat Treatment Stage – This step fine-tunes hardness, toughness, and fatigue resistance for long, reliable life.
4. Inspection and Testing – 3D measurement and FEA check the size and stress levels, making sure performance matches what was planned.

By putting together thermodynamic principles, microstructure control, and stress management, engineers can make castings that perform reliably even in extreme conditions.

5. Benefits of Scientific Control

Railway castings made with precise heat control and microstructure management offer many advantages:

• last longer.
• need less maintenance and repair.
• better at resisting cracks and wear.
• operate safely under heavy loads and high speeds.

Understanding heat flow, solidification, and stress is not just theory—it directly makes railway parts better and safer.

6. Linking to the Series

This article finishes our in-depth series on heat behaviour and quality control for large railway castings. To see each step in detail, you can read the earlier articles:

• Shrinkage, Porosity, and Feeding: What Really Happens During Solidification – learn how defects form and how feeding works.
• Thermal Stress and Cracking in Railway Castings Explained – understand how residual stress develops and why cracks appear.

For the full story on how heat shapes casting quality, you are here: How Heat Shapes the Quality of Large Railway Castings.

7. Railway Castings Supplier Luoyang Fonyo

At Luoyang Fonyo Heavy Industries, we use advanced casting, precise heat treatment, and strict quality control to make high-performance railway castings. Every step follows scientific principles and is checked with modern testing tools. Our know-how ensures every casting meets international standards for safety, strength, and performance.
