Why Vacuum Molding is Excellent for Railway Bogie Bracket

Every day, fast trains carry passengers and goods. However, their smooth operation depends on many precise parts. Among these, the bogie mounting bracket is a key component. Think of it as the train’s main weight-bearing joint. It connects the heavy car body to the undercarriage. As a result, its quality is vital for safety and a smooth ride. This part must withstand huge forces. Moreover, even a small internal flaw can be dangerous. So, how do we choose a casting process for such a critical task? The answer is Vacuum Molding. This article explains why Vacuum Molding is the top method for making high-quality bogie mounting brackets.

1. The Bogie mounting bracket: The Train’s “Knee Joint”

In simple terms, the bogie mounting bracket is like a strong knee joint for the train. It holds the car body to the bogie. At the same time, it handles complex forces from all directions. Therefore, this part is essential for safe operation.

1.1 Forces on the Bracket

The bracket faces several types of force:

Forward/Backward: Pulling when starting and braking when stopping.

Sideways: Pushing when going around curves.

Up/Down: Constant vibration from the tracks.

1.2 High Demands on Manufacturing

Because of these complex forces, the bracket needs high strength, toughness, and fatigue resistance. However, traditional casting methods often leave internal defects. These flaws, like gas holes, can fail under stress.

2. What is Vacuum Molding Casting?

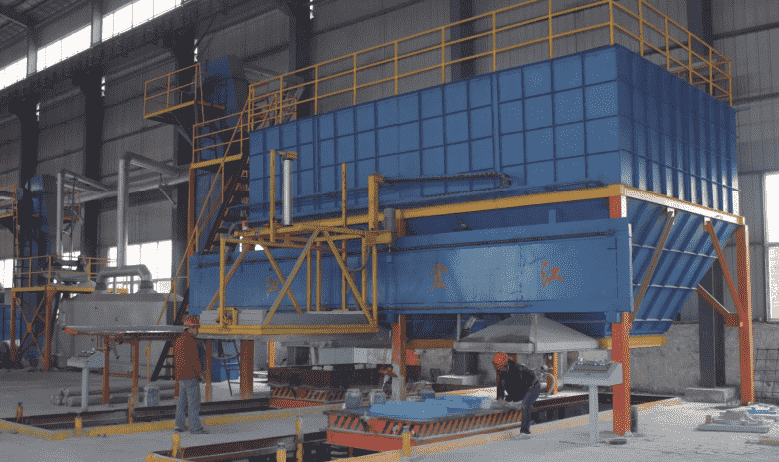

Vacuum Molding is an advanced casting method. Firstly, it uses a plastic film to seal a mold filled with dry sand. Then, a vacuum pump sucks out the air. This process makes the sand hard and firm without any water or chemicals. Consequently, it creates a high-quality mold for casting.

3. Key Benefits of Vacuum Molding for Bogie mounting brackets

3.1 Superior Strength and Toughness

The dry sand in Vacuum Molding lets molten metal flow freely. Therefore, it fills the mold completely. This results in a dense, strong structure inside the bogie mounting bracket with fewer defects. Ultimately, the part can handle extreme loads without cracking.

3.2 Excellent Fatigue Resistance

Metal fatigue is a major risk for train parts. Fortunately, Vacuum Molding produces brackets with very few internal flaws. This means the metal can endure repeated stress for a long time. Thus, these bogie mounting brackets last longer and are much safer.

3.3 Great Precision and Smooth Surface

The vacuum-held sand mold is very rigid and does not deform. As a result, the final bogie mounting bracket has accurate dimensions and a smooth surface. This precision reduces the need for extra machining. It also helps lower stress concentrations, improving safety.

3.4 An Eco-Friendly Process

Another advantage is that the sand can be reused almost 100%. Additionally, the process does not produce harmful gases or chemical waste. This makes Vacuum Molding a green choice for manufacturers.

4. Supplier:

For critical parts like the bogie mounting bracket, safety is the top priority. So Vacuum Molding provides a unique solution. In summary, it creates stronger, more durable, and safer brackets. It is not just an option; it is the necessary choice for high-speed rail reliability.

Luoyang Fonyo Heavy Industries Co., Ltd. specializes in Vacuum Molding Casting to produce high-performance bogie mounting brackets and other critical rail components. We are committed to delivering the safest, most reliable products to global customers. Visit us at www.railwaypart.com
