Why Railway Wheels Are So Strong: 5 Secrets Revealed

Standing on a platform watching a train speed by, you probably don’t pay much attention to its wheels. They may look simple, even ordinary. But did you know? These railway wheels are actually among the most “stressed” components in the entire rail system. Every day, they silently bear the weight of dozens of tons, endure friction and wear over vast distances, and withstand immense impacts from high-speed operation. So, how can they be so tough and reliable? Today, we reveal 5 facts you might not know about railway wheels and uncover the secrets behind their strength.

1. Railway Wheels Gain Strength Through Forging, Not Casting

You might think wheels are simply made by pouring molten steel into a mold. Actually, that’s not the case. To give railway wheels exceptional strength, engineers choose the “forging” process. Simply put, forging is like repeatedly “kneading” a heated steel block with tremendous force. This makes its internal structure incredibly dense and the metal grain flow more continuous. As a result, wheels made this way have far greater fatigue and impact resistance than cast wheels. In fact, this is the first key reason railway wheels can handle heavy loads and long-term shocks.

2. The “Fire and Ice” Forging of Railway Wheels: Heat Treatment

The extreme hardness of a railway wheel’s surface isn’t natural—it’s earned through a severe trial of “heat and rapid cool.” First, the wheel is heated to about 1250°C. Then, it is quickly quenched (cooled) under precisely controlled conditions. This process makes the tread (the part contacting the rail) exceptionally hard. Next, the wheel undergoes “tempering.” This involves reheating it to a specific temperature to relieve internal stresses. Consequently, the material retains enough toughness alongside its hardness. Ultimately, this “hard yet tough” combination is the core reason railway wheels can endure hundreds of thousands of kilometers of wear and still remain in good condition.

3. The Hidden Intelligence in Their Shape

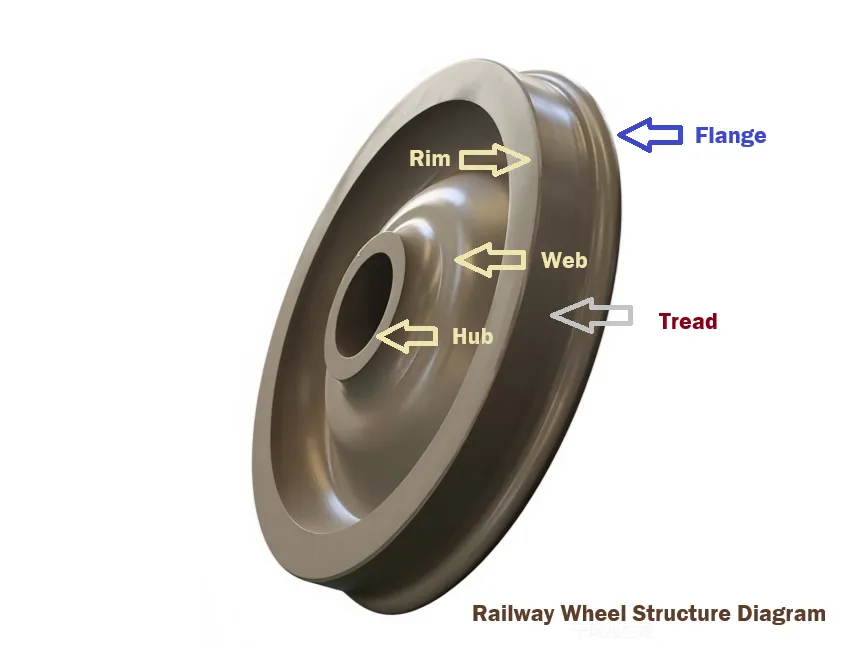

Look closely: the shape of a railway wheel is quite sophisticated. The raised “flange” is a guardian against derailment. The slightly tapered “tread” helps the train navigate curves more smoothly. Meanwhile, the “web” connecting the hub to the rim distributes the enormous load evenly. Every curve and thickness is precisely calculated. Therefore, the design aims to use material in the most rational way to achieve the strongest support and most stable operation. In other words, smart design makes railway wheels both lighter and stronger.

4. Inspections Stricter Than You Imagine

Every railway wheel must pass a series of rigorous “health checks” before leaving the factory. These include:

Hardness Testing: Special equipment checks surface hardness to ensure wear resistance meets standards uniformly.

Ultrasonic Testing: Like giving the wheel an “ultrasound,” sound waves detect tiny internal flaws invisible to the eye.

Magnetic Particle Inspection: This makes surface or near-surface cracks “visible” under fluorescent light, ensuring no hidden defects.

Balance Testing: Precisely measures the wheel’s balance to guarantee smooth, quiet rotation at high speed without abnormal vibration.

Visual & Dimensional Check: Finally, thorough manual inspection from all angles ensures perfection.

In short, only after passing all these comprehensive tests can a railway wheel earn its operational “license.”

5. Custom-Made Specialty Steel

Finally, the right material forms the foundation of everything. Railway wheels are not made from ordinary steel. Instead, they use specially developed “railway wheel steel.” This steel needs to carefully balance toughness, wear resistance, and fatigue strength. Although more costly, it ensures the wheels won’t deform easily or fail suddenly under long-term, high-impact stress and heavy loads. Simply put, top performance relies on top-tier materials.

6. Supplier

The remarkable strength of railway wheels doesn’t happen by chance. It comes from premium materials, masterful forging, intelligent mechanical design, extreme heat treatment, and the kind of meticulous inspection that ensures absolute safety. At Luoyang Fonyo Heavy Industries Co., Ltd. We refine every step to perfection, allowing trains to run safely and smoothly over long distances. To learn more about our products and capabilities, you can visit our website: www.railwaypart.com. If you want to see how a strong railway wheel is truly born from a steel block, we also provide a detailed guide to the full manufacturing process for your reference.
