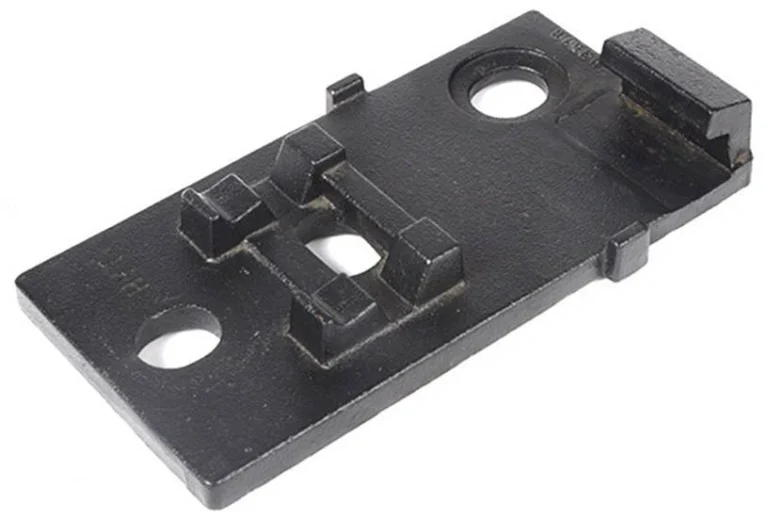

Rail Casting Deburring: 5 Critical Steps for Quality & Safety

1. Rough Grinding Process

1.1 Angle Grinders Remove Large Flash, but Can Leave Scratches

Rough grinding is the first step in deburring. Its core goal is to remove visible flash and burrs from the casting surface quickly. In practice, workers typically use an angle grinder with a coarse grinding disc (60-80 grit aluminum oxide disc). The high speed and powerful force of the angle grinder effectively remove protrusions, but care must be taken to control the force applied. If the grinding disc contacts the casting too deeply or at an inappropriate angle, scratches could easily form on the surface. These scratches not only affect the appearance but could also serve as stress concentration points, reducing the fatigue strength of the casting.

1.2 Scratch Control and Grinding Disc Selection

To minimize scratches, a “touch” grinding method is recommended: briefly contacting the grinding disc with the casting surface and then immediately lifting it, avoiding prolonged pressure on the same area. At the same time, the abrasive disc grit size should be adjusted according to the size of the burr. For burrs exceeding 2mm, use a 60-grit abrasive disc, and for burrs less than 1mm, use an 80-grit abrasive disc. Experiments have shown that this method can control surface scratch depths to within 0.05mm, significantly lower than the 0.2mm achieved by traditional continuous grinding.

2.Sandblasting Technology

2.1 A steel shot diameter of 0.8mm is optimal; larger sizes may damage the surface.

Sandblasting is a key step after rough grinding. High-velocity steel shot impacts the casting surface to remove residual burrs and scale. The choice of steel shot diameter directly affects the treatment effect: diameters less than 0.8mm lack sufficient impact force to completely remove burrs larger than 0.2mm. Diameters exceeding 1.0mm produce excessive kinetic energy, potentially causing surface dents. Experimental data show that 0.8mm steel shot, operating at a pressure of 0.5MPa, can achieve both cleanliness (Sa2.5) and a surface roughness of Ra ≤ 3.2μm.

2.2 Optimizing Sandblasting Angle and Pressure

In addition to the diameter of the steel shot, the sandblasting angle and pressure also require strict control. It is recommended to maintain a sandblasting angle between 45° and 60° to avoid vertical blasting that can cause localized excessive erosion. The pressure should be adjusted based on the thickness of the casting: castings over 20mm thick can use a pressure of 0.6MPa, while castings less than 10mm thick should be reduced to 0.4MPa to prevent deformation. Furthermore, the surface should be immediately purged with compressed air after sandblasting to prevent secondary damage caused by residual steel shot.

3.Corner Treatment Specifications

3.1 The R2 Radius Is A Safety Line; Otherwise, It Could Cause Scratches to Workers During Assembly.

Rounding the edges of castings is a step that 90% of factories overlook, yet it directly impacts assembly safety and product life. According to GB/T 6403.2-2008, the radius of the edge rounding of rail castings must not be less than 2mm (R2). If this standard is not met, sharp edges may cause injuries to operators during assembly. More seriously, the stress concentration factor at corners can be 3-5 times higher, making them the initiation point for fatigue cracks.

3.2 Chamfering Process and Safety Verification

Chamfering can be performed using a handheld chamfering machine (with an R2 blade) or a hand file, focusing on easily missed areas such as hole edges and interface seams. During inspection, a radius gauge should be used to verify that all edges meet safety requirements. For complex castings, it is recommended to use a 3D scanner to create edge models and simulate stress distribution using software to identify high-risk areas in advance.

4.Quality Inspection Methods

4.1 Microcracks Must Be Inspected After Grinding

Magnetic particle testing is an essential non-destructive testing step after burr removal. During the grinding process, mechanical stress may cause invisible microcracks (typically less than 0.1mm in width) in the casting surface. If undetected, these cracks may expand into critical defects during service. During inspection, the casting must be fully magnetized (longitudinal magnetization current 12-15A/mm). Fluorescent magnetic powder is then sprayed on the surface, creating visible magnetic marks at cracks.

4.2 Key Points for Magnetic Particle Inspection

Key inspection areas include sandblasted surfaces, rounded edges, and thick-thin transition zones. If cracks are found, they must be removed using a carbon arc gouging machine (no more than 2mm in depth) and repaired with welds. The repaired areas must be re-rounded and inspected. For large castings, it is recommended to use an automated magnetic particle inspection machine with programmable control of the magnetization direction and inspection path to ensure 100% coverage.

5.Surface Protection

5.1 Apply anti-rust oil before packaging for sea transport, but avoid cheap butter.

For rail castings destined for sea transport, anti-rust sealing oil is the final protective barrier. Salt spray concentrations in sea transport can reach 10-20 times that of land, and ordinary anti-rust oil can become ineffective within two months. Solvent-diluted rust-proof oil (such as F20-1) is recommended. It’s barium petroleum sulfonate and lanolin magnesium soap that form a dense protective film on the casting surface, providing salt spray resistance for over 72 hours.

5.2 Anti-Rust Oil Spraying and Packaging Specifications

When spraying, the oil film thickness should be controlled between 8-12μm (measured using a wet film thickness gauge). A film that is too thick will easily attract dust, while a film that is too thin will provide insufficient protection. Important: Avoid using cheap butter as a substitute for rust-proof oil. The animal fat it contains can become rancid at high temperatures, accelerating corrosion. Before packaging, ensure the oil film is completely dry (allow it to stand at room temperature for 2 hours). Apply a secondary layer of VCI bags with a humidity indicator card inside to ensure the relative humidity is below 40%.
