Mining Traction Motors: The Core Force Driving The Backbone Of The Mining Industry

Deep within the mines, a complex and precise power system is operating day and night. The mining traction motor, as the “heart” of this system, shoulders the responsibility of the vital transportation in the mines. This specially designed motor not only provides strong power but also maintains stable and reliable operation in extreme environments. Its performance  affects  the production efficiency and safety level of the entire mine.

The outstanding performance of mining traction motors is demonstrated in several aspects. Its notable feature is the powerful starting torque and overload capacity. So it can smoothly start under full load and reach the rated speed within a short period. The motor adopts a special insulation design and heat dissipation structure to ensure continuous operation in high-temperature and high-humidity mine environments without performance degradation. The rated voltage levels typically range from 380V to 1140V, meeting the needs of different mine power grids, with a voltage fluctuation tolerance of ±10%, ensuring normal operation even when the power grid is unstable.

In terms of structural design, mining traction motors exhibit unique engineering characteristics. The fully enclosed housing is made of high-strength cast iron, with a protection level of IP54 or above. It can effectively prevent dust and water. The internal structure uses H-level insulation materials, capable of withstanding temperatures up to 180℃. So the motor does not experience insulation aging during long-term high-load operation. The bearing system adopts a double-sealed structure and is equipped with an automatic lubrication device, significantly extending the maintenance cycle. The overall design is compact, with a power density over 30% higher than that of ordinary motors, achieving maximum power output in a limited installation space.

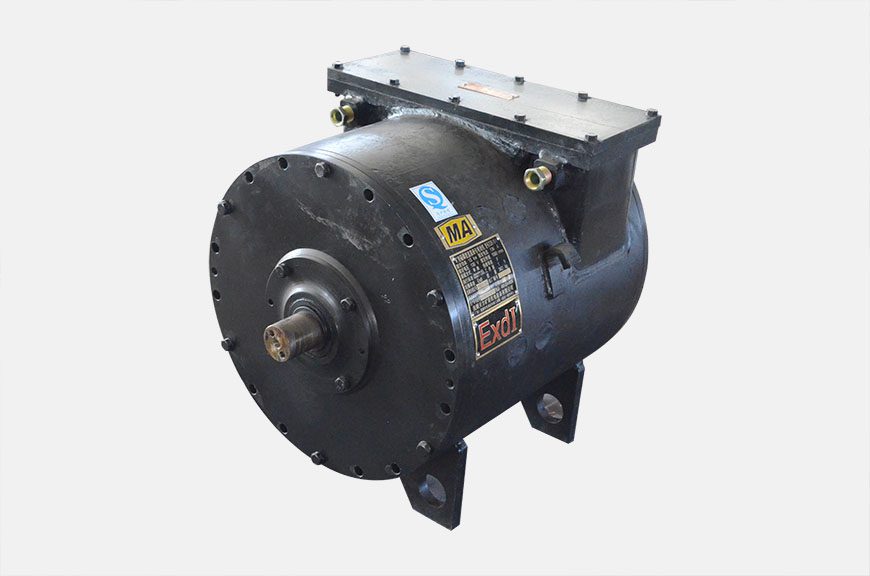

Explosion-proof performance is a key characteristic of mining traction motors. The motor has passed the national mine product safety marking certification (MA certification), with explosion-proof structures using flameproof type (Ex d) or enhanced safety type (Ex e) designs, effectively preventing internal sparks from igniting underground flammable gases. The machining accuracy of the explosion-proof joint surface reaches below 0.05mm. So the explosive pressure released internally will not be transmitted to the external environment. The surface temperature of the motor is strictly controlled below 150℃, far below the ignition temperature of methane and other flammable gases, providing dual safety guarantees for underground operations.

The application scope of mining traction motors covers all aspects of mining production. In main transportation tunnels, it drives the locomotive to pull dozens of mine cars at a speed of 25-40 kilometers per hour, shuttling back and forth; in inclined tunnels, it provides power for the winch system, precisely controlling the speed to ensure the smooth moving of mine cars; in long-distance belt conveyor systems, multiple traction motors achieve power balance through a linkage control system to ensure the conveyor belt operates at its best condition. Additionally, it is widely used in auxiliary transportation equipment such as people-carrying vehicles and material vehicles, becoming an indispensable power source in the mining logistics system.

With the advancement of intelligent mine construction, modern mining traction motors are developing towards more efficient and intelligent directions. The application of permanent magnet synchronous traction motors has increased efficiency to over 95%. So it can save 15-20% compared to traditional asynchronous motors. The intelligent control system uses built-in sensors to monitor parameters such as motor temperature, vibration, and load in real time, enabling predictive maintenance. The widespread application of variable frequency speed regulation technology enables the motor to maintain optimal operation under different working conditions, significantly extending the equipment’s service life.

It is worth noting that modern mining traction motors also have energy feedback functionality. During braking, the kinetic energy is converted into electrical energy and returned to the power grid, achieving energy recycling. Some advanced models also support remote monitoring and fault diagnosis, communicating with the ground control center through industrial Ethernet in real time, providing a technical foundation for unmanned mining operations.

As the core power equipment of mining production, mining traction motors not only need to meet strict performance indicators but also adapt to the special working environment in the mines. Its design and manufacture integrate the latest achievements from multiple fields such as materials science, mechanical engineering, and electrical automation. It is a concentrated reflection of the technical level of industrial equipment. In the future, with the continuous application of new materials and new technologies, mining traction motors will continue to evolve, providing more reliable power support for the safe production and efficient operation of mines.

These sturdy and reliable motors form the power source of the mine transportation system. Their stable operation ensures the timely transportation of thousands of tons of minerals and materials, just like the continuous beating of the pulse in the mine’s bloodstream, continuously injecting vitality and energy into the mine.
