Metallographic testing of cast iron parts: revealing the “quality code” of the microscopic world

In the field of industrial manufacturing, cast iron parts are widely used in machinery manufacturing, rail vehicles, construction engineering and other industries due to their good castability, wear resistance and shock absorption. However, the quality of cast iron parts is directly related to the safety and service life of equipment, and how to ensure the quality of cast iron parts becomes the key. Metallographic testing, the “detective” technology of the microscopic world, has unveiled the mystery of the quality of cast iron parts for us.

What is metallographic testing?

Metallographic testing, as the name suggests, is to observe and analyze the microstructure of metal materials through equipment such as metallographic microscopes. These microstructures include the size, shape, distribution of grains, and the composition and arrangement of different phases. They are like the “genes” of cast iron parts, which determine the macroscopic properties of the material, such as strength, hardness, toughness, etc.

The importance of metallographic testing of cast iron parts

During the solidification process of cast iron, due to the influence of factors such as cooling rate and chemical composition, various microstructural defects are easily formed, such as abnormal graphite morphology (poor spheroidization, coarse flake graphite), coarse eutectic clusters, carbide segregation, etc. These defects are like “invisible killers” that will weaken the mechanical properties of cast iron parts and increase the risk of fracture and wear during use. Metallographic testing is like a “micro CT” that can accurately capture these microscopic defects and provide a scientific basis for quality control.

How is metallographic testing performed?

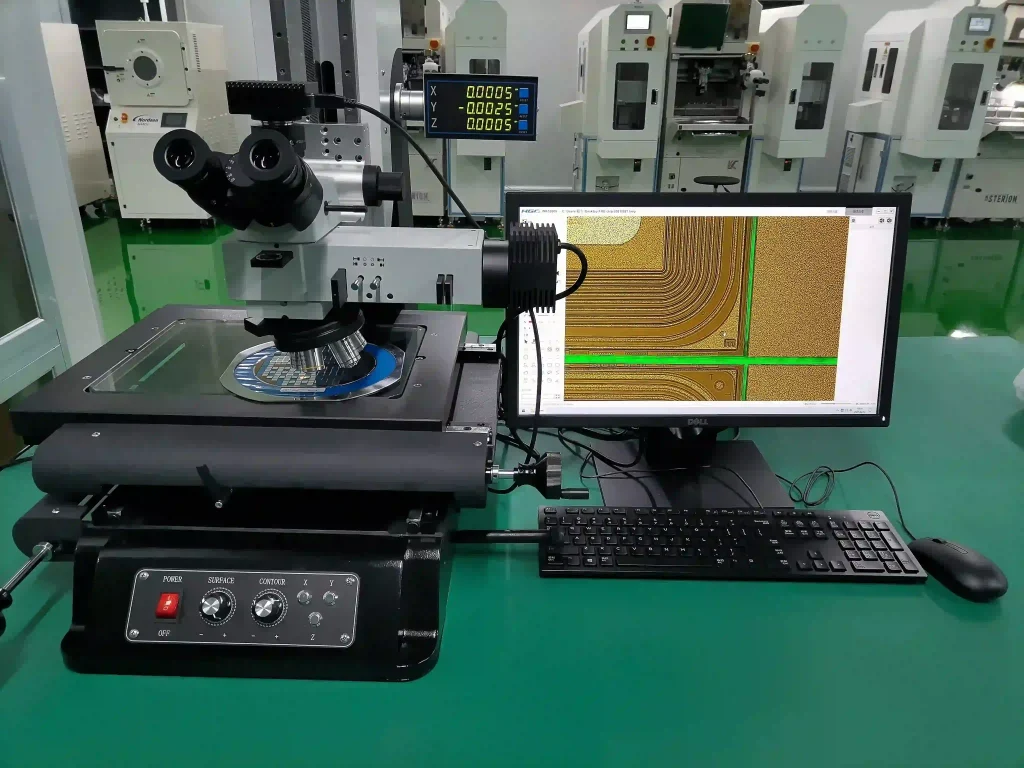

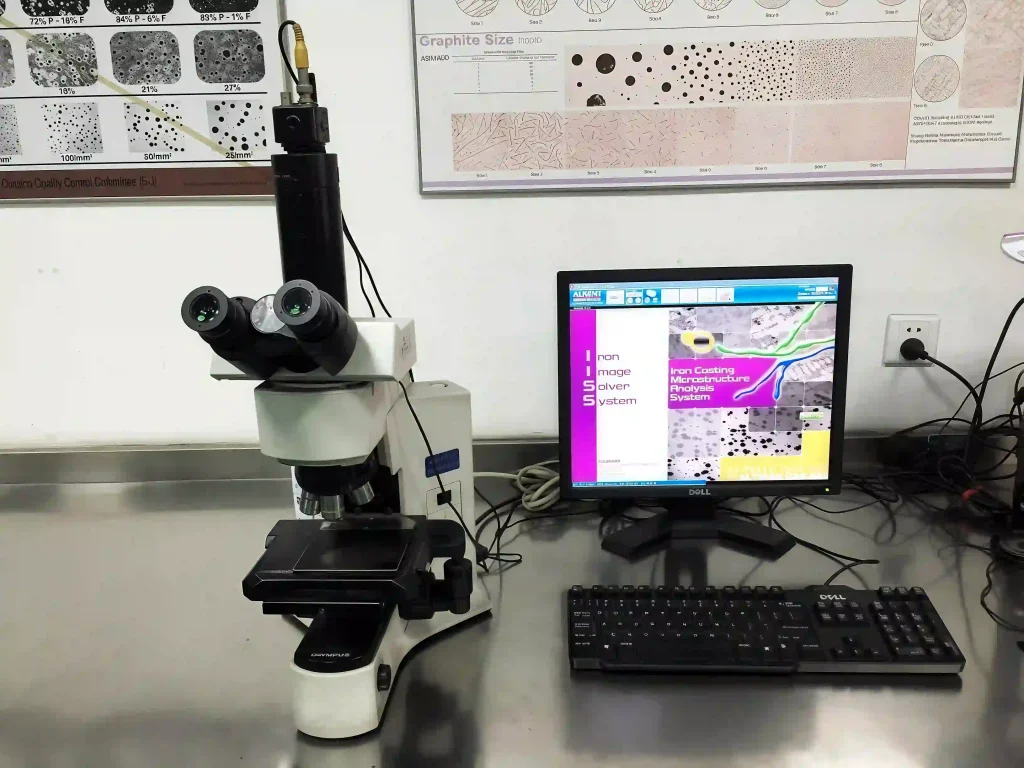

The process of metallographic testing is like a precise “surgical operation”. First, a small piece of sample is cut from the cast iron part, and the surface of the sample is polished to be as smooth as a mirror through cutting, inlaying, grinding, polishing and other steps. Subsequently, a specific etchant is used to chemically erode the surface of the sample, so that different tissue phases show a sharp contrast under the microscope. Finally, the characteristics of the microstructure are observed and recorded through a metallographic microscope, and compared and analyzed with the standard atlas.

What can metallographic testing tell us?

Through metallographic testing, we can intuitively see the microscopic world inside the cast iron part. For example, in ductile iron, graphite is evenly distributed in a spherical form, which can effectively improve the strength and toughness of cast iron; while the flake graphite in gray cast iron will reduce the strength of the material. In addition, metallographic testing can also detect defects such as inclusions and pores in cast iron parts, evaluate the effect of heat treatment processes, and even trace the root causes of problems in the production process.

Metallographic testing – the “guardian” of cast iron quality

In the production process of cast iron parts, metallographic testing runs through the entire process. From raw material inspection, smelting process monitoring, to finished product quality sampling, metallographic testing provides reliable quality assurance for each process. It not only helps manufacturers optimize process parameters and reduce scrap rates, but also provides a scientific basis for product performance improvement and innovation.

As an important means of quality control of cast iron parts, metallographic testing protects the quality and safety of cast iron parts with its unique “microscopic perspective”. With the continuous advancement of science and technology, metallographic testing technology is also continuously upgraded to safeguard the high-quality development of industrial manufacturing.
