Metallographic testing of cast iron parts: revealing the microscopic world inside the metal

As an indispensable material in the industrial field, cast iron parts are widely used in machinery manufacturing, rail transportation industry, construction engineering and other aspects. The performance of cast iron parts depends largely on their internal microstructure. At this time, metallographic testing has become an important means to evaluate the quality of cast iron parts. So, what is metallographic testing? How does it reveal the secrets inside cast iron parts?

What is metallographic testing?

Metallographic testing, in simple terms, is the process of analyzing the microstructure of metal materials through a series of sample preparation and observation techniques. For cast iron parts, metallographic testing can intuitively display the internal grain size, morphology, distribution, composition and proportion of various phases (such as ferrite, pearlite, cementite, etc.). This information is crucial for evaluating the mechanical properties, corrosion resistance, wear resistance, etc., of cast iron parts.

The process of metallographic testing

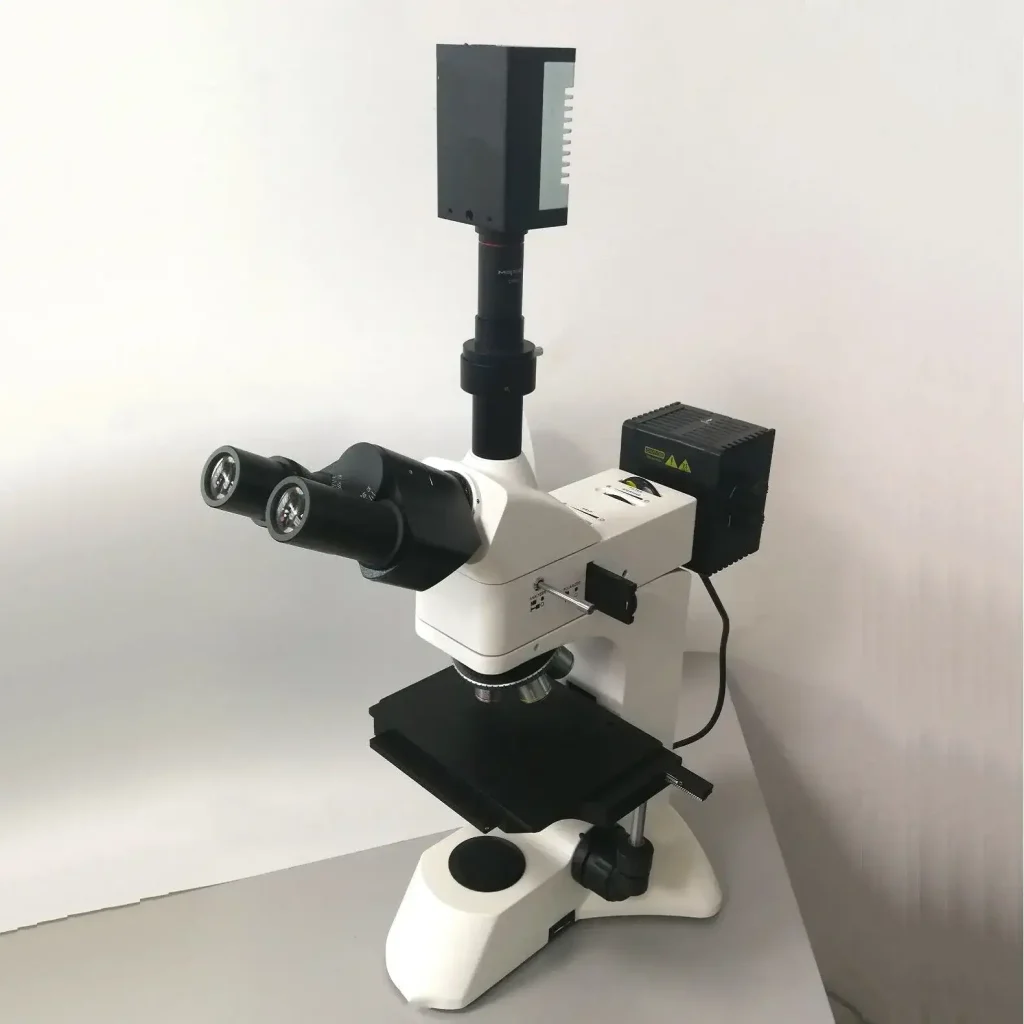

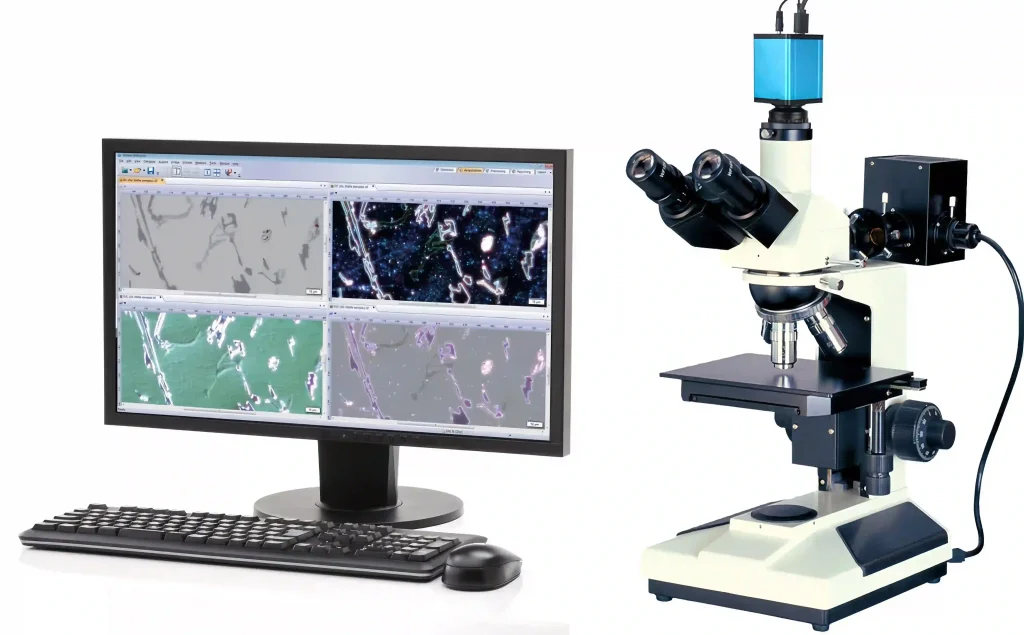

To conduct metallographic testing, the cast iron parts must first be cut into samples of appropriate size, and then a series of fine sample preparation steps, such as grinding and polishing, are performed to make the sample surface mirror-like for subsequent observation. Next, the sample is corroded using specific chemical reagents to make different organizational structures show obvious contrast under the microscope. Finally, the treated sample is placed under a metallographic microscope for observation, and photos or video records are taken for subsequent analysis and evaluation.

The significance of metallographic testing

Through metallographic testing, we can intuitively see the organizational structure inside the cast iron parts so as to determine whether there are casting defects, such as pores, slag inclusions, shrinkage cavities, etc. These defects will seriously affect the mechanical properties and service life of the cast iron parts. In addition, metallographic testing can also help us analyze whether the material of the cast iron parts meets the standard requirements, such as whether its chemical composition, such as carbon content and silicon content, is within a reasonable range and whether the heat treatment process is appropriate.

Application of metallographic testing

In the production process of cast iron parts, metallographic testing runs through all links. From the inspection of raw materials to the optimization of casting processes to the final acceptance of finished products, metallographic testing plays an irreplaceable role. It not only ensures the stable and reliable quality of cast iron parts but also provides a strong basis for troubleshooting and improvement in the production process.

In short, metallographic testing of cast iron parts is a scientific and practical technology. It allows us to see through the surface of the metal and penetrate the microscopic world inside it so as to more accurately evaluate the performance and quality of cast iron parts. With the continuous advancement of science and technology, metallographic testing technology will continue to improve and develop, providing a more solid guarantee for the production and application of cast iron parts.
