How Gantry Robots Improve Railway Wheels Production

Introduction

Producing railway wheels is a tough job. Each wheel is very heavy—usually 200–900 kg—and made of solid steel. After forging, the wheels are red hot, sometimes over 1000°C, and must be machined precisely so trains run smoothly at high speeds.

Handling these heavy, hot, and expensive wheels manually is slow and risky. That’s why factories use gantry robots, also called 桁架机械手, to automate the process.

Gantry robots make production safer, faster, and more precise. They allow factories to produce more railway wheels while keeping workers out of harm’s way.

What Exactly Are Railway Wheels?

Unlike car wheels, railway wheels are massive. They support the full weight of a train and must withstand high speeds and heavy loads.

• Weight: 200–900 kg per wheel
• Material: solid steel
• Process: casting or forging → cooling → CNC machining

Because of their size and heat, moving these wheels requires special equipment. Simple forklifts or standard robot arms are usually not strong enough.

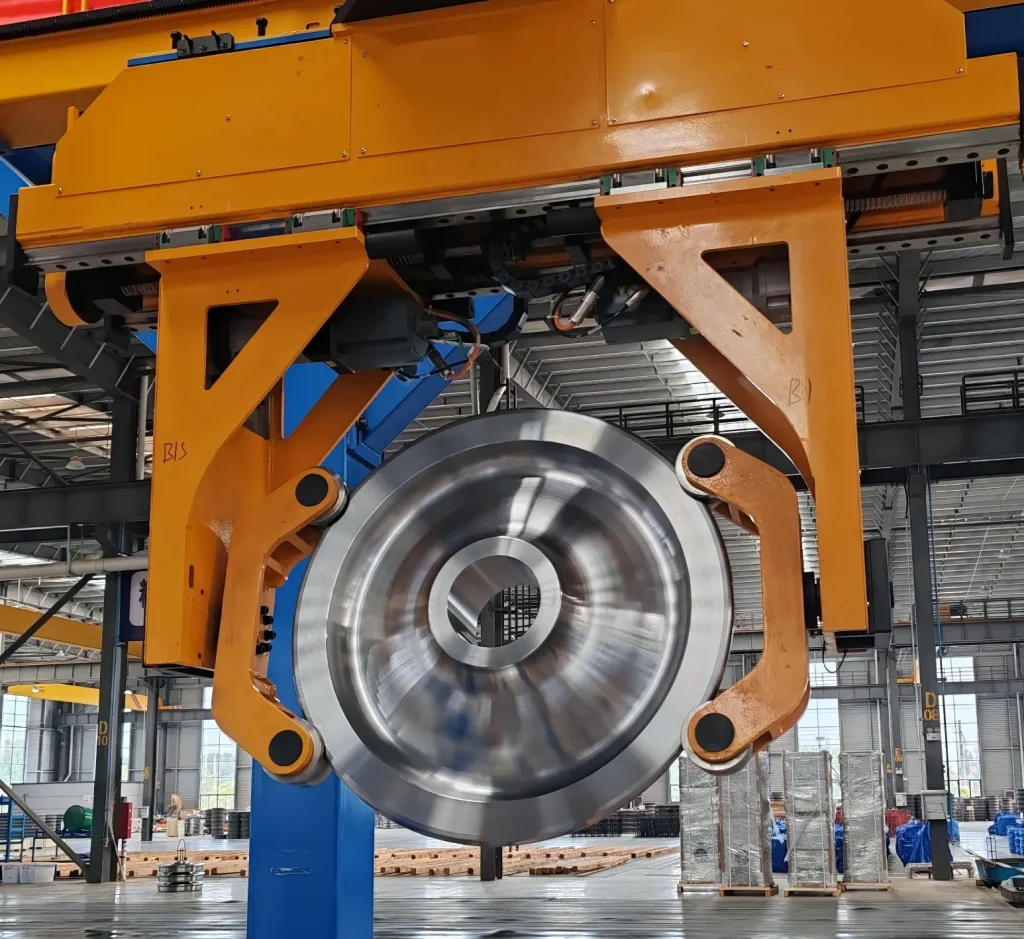

What is a Gantry Robot?

A gantry robot is an industrial robot shaped like a bridge. Imagine a strong metal frame spanning over a factory floor. It has:

• Beams and columns for support
• A moving trolley that slides along the beams
• A gripper at the end of the arm, designed to hold a railway wheel safely

It moves in three directions:

1. X-axis – left and right along the bridge
2. Y-axis – forward and backward
3. Z-axis – up and down to grab a wheel

Gantry robots are built to handle heavy loads safely while keeping the factory floor clear. They are precise, able to place each wheel with millimeter-level accuracy.

Why Use Gantry Robots for Railway Wheels?

You might wonder why not just use forklifts or standard robot arms. The answer is simple:

1. They Can Handle Heavy Wheels – Standard robots may tip or fail under 300 kg wheels. Gantry robots rely on their bridge structure to support heavy weights.
2. They Save Floor Space – The robot works above the floor, leaving room for workers and other machines.
3. They Are Precise – Each wheel is positioned exactly where it needs to go, which is critical for CNC machining.

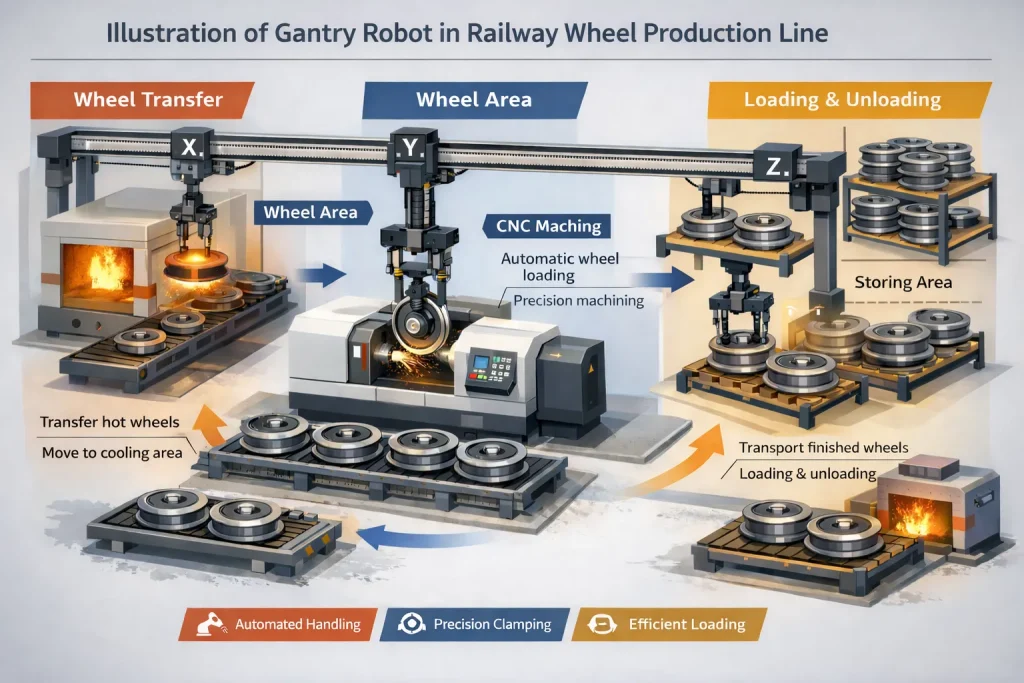

How Gantry Robots Handle Railway Wheels

Here’s how gantry robots operate in a typical railway wheel factory:

1. Moving Hot Railway Wheels Safely

After casting, wheels are extremely hot. The robot lifts each wheel and moves it to a cooling rack, keeping workers safe.

• Robots can move wheels faster than humans, keeping the production line continuous.
• This automated wheel transfer prevents accidents and improves throughput.

2. Feeding CNC Machines

Once cooled, wheels need precision machining on CNC lathes or grinders.

• The gantry robot positions the wheel perfectly in the machine chuck.
• Even a small misalignment can ruin a wheel.
• With automation, every railway wheel is machined consistently.

3. Stacking and Storing Finished Wheels

After machining, finished wheels are moved to storage or shipping.

• The robot stacks wheels neatly, often several layers high, saving floor space.
• Automated storage ensures wheels are organized and protected.

Real Benefits of Gantry Robots

Walking into a modern factory, you’ll notice:

1. Safer Operations – Workers don’t lift heavy wheels or stand near hot furnaces.
2. Consistent Quality – Robots place each wheel the same way, so machining is uniform.
3. Higher Efficiency – The robot can run 24/7. Even at night, wheels are transferred and processed.
4. Cost Savings – Less manual labor, fewer accidents, and less scrap.

Example:
Before a factory installed a gantry robot, two workers used a crane to move each wheel. It took 10 minutes per wheel setup. Now, the robot does it in under 2 minutes. Daily output increased significantly, and workers only monitor from a control room.

The Future of Railway Wheels Production

New gantry robots include cameras and sensors. They can:

• Measure wheel dimensions automatically
• Detect defective wheels and separate them
• Send data to the factory computer for tracking

Automation not only improves efficiency but also creates a smart, traceable production line for all railway wheels.

Final Thought

Gantry robots are the perfect solution for railway wheels production. They are:

• Strong enough to lift heavy wheels
• Precise enough to position wheels for CNC machining
• Safe, keeping workers away from dangerous tasks

By automating wheel transfer, machining, and storage, factories produce more wheels faster, safer, and with higher quality.

Manufacturer

In modern railway wheels production, gantry robots have clearly transformed the way factories operate—making handling safer, faster, and more precise. As a professional manufacturer, Luoyang Fonyo Heavy Industries Co., Ltd., design and supply automated solutions that integrate seamlessly into production lines, helping factories achieve these benefits efficiently. Please visit our website www.railwaypart.com to get more information about us. If you have any product requirements related to railway wheels or automated handling systems, feel free to contact us for further technical discussion.

FAQ

Q: Can gantry robots handle heavy railway wheels?
A: Yes, they are designed for high loads and precise positioning.

Q: How do gantry robots improve production efficiency?
A: They automate wheel transfer, loading CNC machines, and storage, saving time and labor.

Q: Are gantry robots safe for workers?
A: Yes, they prevent direct contact with hot or heavy wheels, reducing accidents.

Q: Can gantry robots work with CNC machines?
A: Absolutely. They load and unload railway wheels for precise machining automatically.
