“Flexible dancer” on the track: the role of the bogie is revealed

On the grand stage of railway transportation, trains are like agile dancers, running fast and flexibly on the rails. Behind this, there is a key “role” that silently supports the operation of the train, which is the bogie. Although the bogie is not often known to the public, it is an indispensable core component of the train and plays a vital role.

Supporting the car body, as stable as a rock

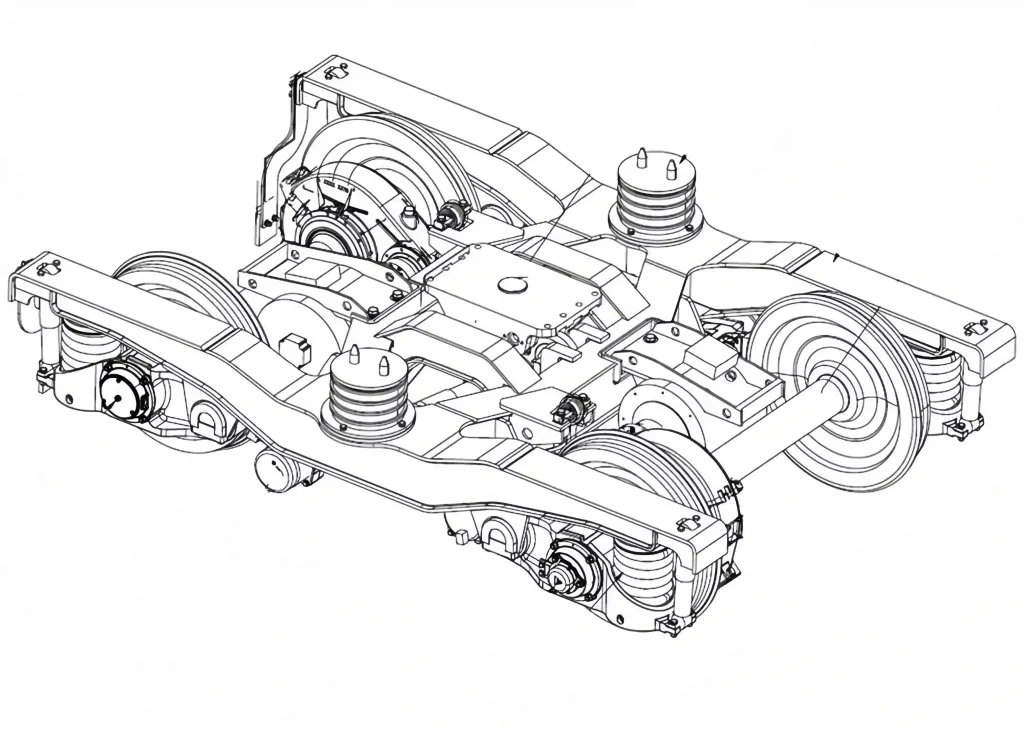

The most basic and key role of the bogie is to support the entire train body. Imagine a train full of passengers and goods, weighing dozens or even hundreds of tons, and all this huge weight is on the bogie. The bogie is like the “feet” of the train, evenly bearing the weight of the car body and transferring it to the rails.

It ensures that the car body remains stable in various operating conditions through a series of precisely designed structures, such as frames, spring devices, etc. Whether the train is stationary or running at high speed, the bogie can firmly “hold” the car body to prevent it from tilting or sinking, providing a safe and stable transportation environment for passengers and goods. Just like a person needs a pair of strong feet to stand and walk steadily, the bogie is the “foundation” for the stable operation of the train on the track.

Guide forward, precise steering

When a train runs on the rails, it does not always move along a straight line, but needs to constantly adjust the direction according to the line conditions and run in a curve. At this time, the bogie plays an important role in guiding the car body to turn.

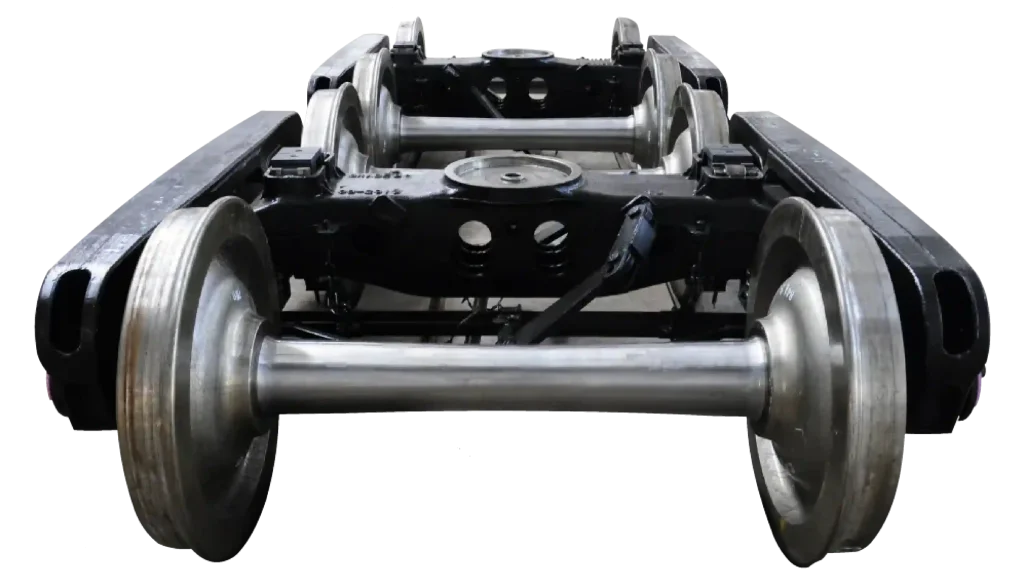

The wheels on the bogie are in direct contact with the rails, and the design of the wheels allows the train to pass through the curve smoothly. When the train enters the curve, the bogie will use a series of complex mechanical movements to make the wheels roll along the rails at a suitable angle and guide the car body to turn smoothly. This process is like the steering wheel of a car, but the steering mechanism of the bogie is more complex and precise, and it is necessary to take into account factors such as the huge inertia of the train and the stability at high speed.

At the same time, the steering performance of the bogie also directly affects the operating efficiency and safety of the train. If the steering of the bogie is not flexible, the train will generate greater resistance when passing through the curve and may even cause excessive wear of the wheel flange and the rail, increasing the risk of derailment. Therefore, the steering design of the bogie is a key link in train technology.

Buffering and shock absorption a comfortable choice

During the operation of the train, it will inevitably encounter various uneven track conditions, such as track joints, turnouts, roadbed settlement, etc., which will cause vibration and impact to the train. If these vibrations are directly transmitted to the car body, it will not only affect the riding comfort of passengers, but also may cause damage to the car body structure and equipment in the car.

The spring device and shock absorber on the bogie are like the “shock absorption system” of the train, which can effectively buffer and absorb the vibration and impact force transmitted from the track. When the train passes through an uneven track, the spring will undergo elastic deformation and convert the vibration energy into elastic potential energy, while the shock absorber will gradually consume the elastic potential energy through damping, thereby reducing the vibration transmitted to the car body. In this way, the train can remain relatively stable during the journey, providing passengers with a comfortable riding experience.

Transmit power and drive forward

For trains such as electric locomotives and EMUs, the bogie also bears the heavy responsibility of transmitting power. In an electric-driven train, the power generated by the traction motor needs to be transmitted to the wheelset through a series of transmission devices to move the train forward. The gearbox, coupling and other components in the bogie are like “power transmission messengers”, which efficiently and stably transmit the power of the motor to the wheelset to ensure that the train can travel at the predetermined speed.

Ensure safety and protect the journey

Safety is the top priority of railway transportation, and the bogie plays an important guardian role in it. In addition to the aforementioned improvement of operating stability through shock absorption, the bogie also has a variety of safety protection functions.

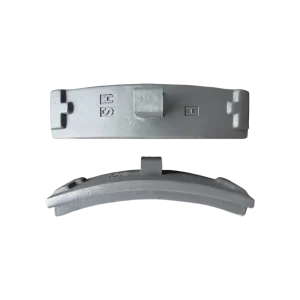

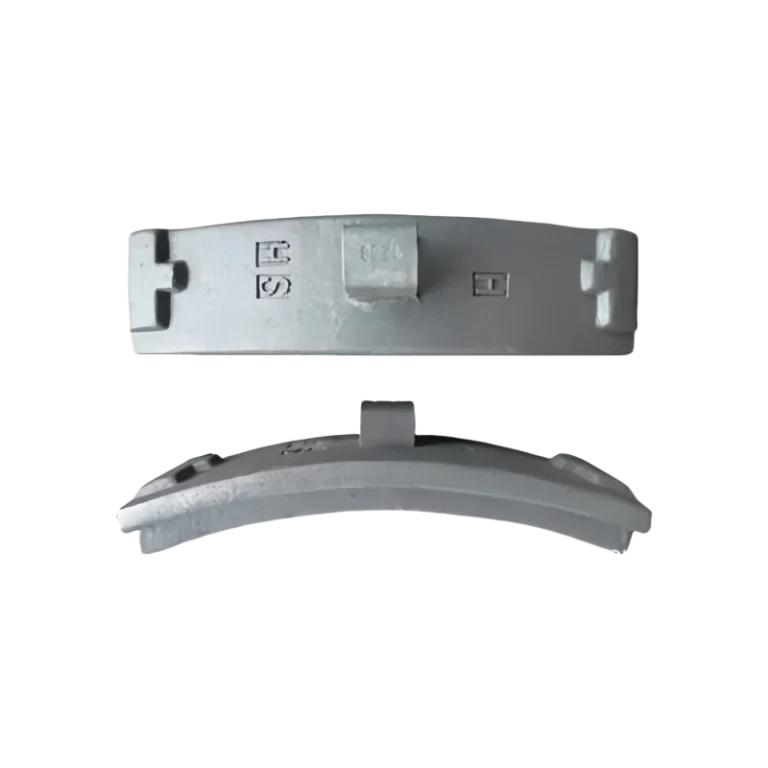

It is equipped with a braking system that can quickly slow down or stop the train when necessary. When the train needs to brake, the braking device on the bogie will convert the kinetic energy of the train into heat energy through the friction between the brake shoe (or brake disc) and the wheel tread (or brake disc), thereby slowing down and stopping the train.

In addition, the design of the bogie also takes into account the safety of train operation, such as preventing derailment. Its unique structure and parameter settings can ensure that the train remains stable when running at high speed or passing through curves, reducing the risk of derailment.

Although the bogie is small, it is related to every aspect of train operation. It is not only the support and guide of the train but also the guardian of passenger safety and comfort. With the continuous development of railway technology, bogies are also constantly upgraded and optimized to adapt to higher operating speeds and more stringent performance requirements. In the future, bogies will continue to play an important role in the field of railway transportation, promoting the development of train technology towards a safer, more efficient and more comfortable direction, making every trip a smooth and beautiful journey.
