Cast Iron: The Century-Old Guardian of Railway Motor Housings

1. Cast Iron Foundation Stones of the Steam Age

1.1 The Original Function of the Cast Iron Casing

At the beginning of the 19th century, the power core of steam locomotives relied on boilers and cylinders. At that time, the motor housing was actually a cast-iron bracket, whose main function was to fix the motor and resist mechanical damage. Cast iron (with a density of 7.2g/cm³) has become the preferred choice due to its easy formability and wear resistance. The rough surface design of the heat dissipation fins (with a height of 15mm and a spacing of 30mm) effectively addresses the temperature rise of motors in the steam age by increasing the heat dissipation area.

1.2 A Model of Cast Iron Application in China’s Railways

The Shaoshan Type 1 electric locomotive, which rolled off the production line in 1969, features a motor housing made of gray cast iron (HT200), with each housing weighing 120 kilograms and its surface densely covered with V-shaped heat dissipation fins. Although this design seems cumbersome, it has successfully solved the problems of dust prevention and basic heat dissipation in a coal dust environment, ensuring the stable operation of the locomotive on the Beijing-Guangzhou Line. According to statistics, the cast iron casing has reduced the motor failure rate by 40%, and no shutdown accidents caused by casing damage occurred during its service period.

2. Cast Iron Optimization in the Electric Age

2.1 Structural Evolution of Heat Dissipation Fins

With the motor power density increasing to 3kW/kg (in the 1950s), the cast iron casing achieved a performance breakthrough by optimizing the layout of the heat dissipation fins:

• The rib height is increased to 20mm: the heat dissipation area is enhanced by 30%, and the temperature rise is reduced from 45℃ in the initial stage of cast iron to 38℃.
• The spacing is reduced to 25mm: The airflow is guided more evenly, and the heat dissipation efficiency is increased by 15%.

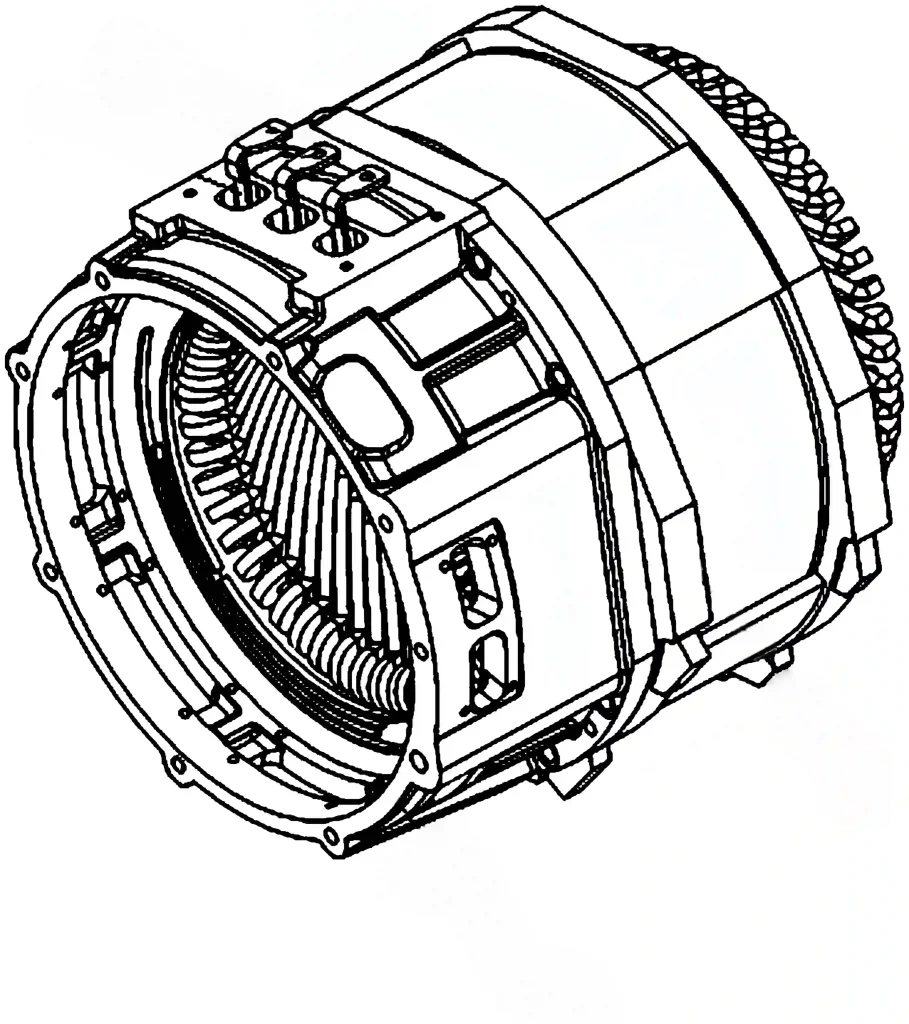

2.2 Partition Design of End Covers and Shells

The cast iron shell adopts a composite structure of end cover (HT250) – shell (HT200) :

• End cover: Made of high-strength gray cast iron (HT250), the bearing housing is precisely cast (dimensional tolerance ±0.1mm), capable of withstanding the axial load of the motor (peak up to 50kN).
• Shell: Made of common gray cast iron (HT200), the rib layout is optimized through finite element analysis to reduce weight while ensuring strength (the weight of a single shell is reduced from 120kg to 110kg).

3. Modern Improvements in Cast Iron Materials

3.1 A Leap in the Performance of Ductile Iron

By adding magnesium (0.03-0.05wt%), the tensile strength of ductile iron (QT400-18) is increased to 400MPa, and the elongation reaches 18%, combining the strength of cast steel with the casting performance of cast iron. The motor housing of the harmonious type electric locomotive is made of ductile iron. The weight of a single housing has been reduced from 110kg of gray cast iron to 85kg, and the temperature resistance has been improved to 220℃.

3.2 Breakthroughs in Surface Treatment Technology

• Phosphating treatment: A phosphate coating (5-15μm thick) is formed on the surface of cast iron, and the corrosion resistance is increased by three times (no rust after 72 hours of salt spray test).
• Dacromet coating: Through zinc-chromium coating (8-12μm thick), the temperature resistance reaches 300℃, meeting the aerodynamic heating requirements of high-speed trains (350 kilometers per hour).

4. Empirical Data of Cast Iron Enclosures

4.1 Heat Dissipation Performance Comparison

Under the same working conditions (power 500kW, rotational speed 1500rpm), the temperature rise of the optimized cast iron casing reached 38℃, which was 15.6% lower than the initial 45℃, and the heat dissipation efficiency was significantly improved.

4.2 Durability Test Results

After 10^6 cycles of load tests (load range 0-2000N), the cast iron casing only undergoes 0.3mm plastic deformation, and its fatigue resistance meets the strict requirements of heavy-duty freight transportation (axle load of 25 tons).

5. The Future Potential of Cast Iron

5.1 The Balance Between Lightweighting and Environmental Protection

By combining ductile iron with composite materials, such as embedding a carbon fiber reinforcing layer (2mm thick) in the cast iron matrix, the weight can be reduced by 20% while ensuring strength (the weight of a single shell drops from 85kg to 68kg), and the carbon emissions throughout the entire life cycle are reduced by 15% compared to traditional cast iron.

5.2 Integration of Intelligent Monitoring Technologies

The cast iron housing surface is integrated with a fiber Bragg grating sensor (diameter 0.2mm), which can monitor temperature (accuracy ±0.1℃) and vibration (frequency range 0-2000Hz) in real time. The data is wirelessly transmitted to the operation and maintenance platform to achieve predictive maintenance.

From the cast iron brackets of the steam age to the precision shells of the electric age, cast iron has always been the core material for railway motor housings through material optimization and process innovation. This inheritance not only reflects the in-depth development of classic materials by industrial civilization, but also highlights that in the eternal pursuit of efficiency and reliability, traditional materials still radiate new vitality.
