A Comprehensive Analysis of the Adaptability of High-Speed Railway Fastening Systems

High-speed railway fastening systems are far from being simple track connection components; they are precise “joints” that ensure the safe, smooth, and high-speed operation of trains. Their adaptability directly determines the durability of the line, passenger comfort, and economic efficiency throughout the entire life cycle. The following is an in-depth analysis of their adaptability from key dimensions:

1. Basic Adaptability in Harsh Environments

Temperature Fluctuation Response: The system must withstand extreme temperature changes, from severe cold (e.g., -40°C in Northeast China) to intense heat (e.g., over 60°C on the surface in Northwest China). Metal components need to have low cold brittleness sensitivity (such as optimizing alloy composition), and polymer pads (such as chloroprene rubber) must maintain stable elastic modulus and creep performance across a wide temperature range to prevent the loss of clamping force or track geometry deformation due to thermal expansion and contraction. The successful operation of lines like the Harbin-Dalian High-Speed Railway has proven the system’s reliable service under extreme temperature differences (up to over 70°C).

Humidity and Corrosion Resistance: Coastal high salt fog, tunnel condensation water, acid rain, and other environments require fastening systems to have excellent anti-corrosion performance. This involves surface treatment processes (such as Dacromet and zinc diffusion), the application of stainless steel components, and the design of sealed structures to delay metal corrosion and the aging of insulating parts significantly. For example, coastal lines widely use multi-layer anti-corrosion fastening systems to ensure the long life of key components.

Resilience to Geological Settlement and Vibration: Soft soil, mined-out areas, and other poor geological sections can cause uneven foundation settlement. The fastening system needs to have a certain vertical adjustment capability (such as using adjustable height pads) and be combined with high-elasticity cushion layers to absorb high-frequency vibration energy, protecting the underlying foundation and the surrounding environment. The Wuhan-Guangzhou High-Speed Railway has effectively mitigated the additional dynamic loads caused by complex geological conditions through optimized fastening parameters in some sections.

2. Core Performance Assurance under High-Speed Dynamic Loads

Suppression of Continuous High-Intensity Vibration: At a train speed of 350 kilometers per hour, the wheel-rail interaction force is huge and frequent. The fastening system must provide precise and stable longitudinal resistance (to prevent rail creep) and rely on high-performance, elastic cushion layers (such as polyurethane microcellular pads and composite rubber pads) to efficiently attenuate high-frequency vibrations, preventing excessive energy transmission to the ballast and bridge structures, protecting infrastructure and reducing noise. The dynamic and static stiffness ratio and fatigue life of the rubber pads are key evaluation indicators.

Fatigue Resistance and Long-Term Service Reliability: Under billions of cycles of loading, metal components (such as elastic bars) need to resist fatigue fractures (by optimizing structural design and heat treatment processes to enhance their fatigue limit), and non-metallic components need to resist permanent deformation and aging brittleness. Rigorous accelerated fatigue tests and long-term monitoring data from actual lines are the key basis for verifying their durability.

3. Fine-Tuned Adaptability for Special Scenarios

Differentiated Matching for Tunnels and Bridges: In tunnels, where space is limited, humidity is high, and noise reflection is strong, fastening systems with lower structural heights, higher anti-corrosion, and noise reduction requirements are often used (such as elastic iron pad systems with noise reduction wings). For bridges, the impact of beam deformation (expansion, deflection) on the fastening system’s force state needs to be considered, and the setting of longitudinal resistance is particularly crucial, requiring a balance between constraining rail creep and allowing the coordinated deformation of the beam and rail.

Enhanced Coordination in Switch Areas: Switch areas have complex structures and concentrated forces. Fastening systems need to provide stronger lateral stability and more uniform support stiffness to ensure the precise positioning and smooth conversion of switch rails and center rails. Enhanced elastic base plates or special locking structures are often used.

4. Adaptability Evolution Oriented towards Maintenance and Operation

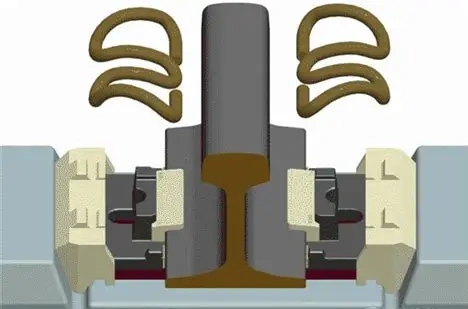

Convenience of Inspection, Adjustment, and Replacement: Modern fastening systems attach great importance to maintenance convenience. Modular design, bolt-free or few-bolt structures (such as e-type elastic bars) can significantly improve the efficiency of inspecting and replacing track underlayers or adjusting track gauge and height, reducing the intensity and cost of maintenance during the window period. For example, some new fastening systems can achieve rapid and step-less adjustment of the track gauge. Intelligent integration of condition monitoring: By integrating sensors (such as force-measuring washers and displacement sensors) into the fastener system, real-time monitoring of clamping force, gauge variation, and pad condition can be achieved. Combined with big data analysis, this enables a precise shift from “planned maintenance” to “condition-based maintenance”, enhancing the overall adaptability and economy of the system. This represents the cutting-edge direction of fastener technology development.

The adaptability of high-speed railway fastener systems is a systematic engineering project that integrates materials science, structural mechanics, environmental engineering, and intelligent operation and maintenance. It requires finding the optimal solution under multiple constraints, such as static and dynamic conditions, short-term and long-term perspectives, functionality, and cost. With continuous breakthroughs in new materials (such as high-performance composite materials), new structures (such as designs with higher locking reliability), and intelligent technologies, the environmental tolerance, dynamic matching, and operation and maintenance friendliness of fastener systems will continue to improve, laying a more solid foundation for the safe, efficient, green, and intelligent operation of high-speed railways as a national strategic infrastructure. The successful operation of China’s high-speed railway network is a concentrated manifestation of the outstanding adaptability of countless such key components under complex environments and extreme working conditions.

Supplier

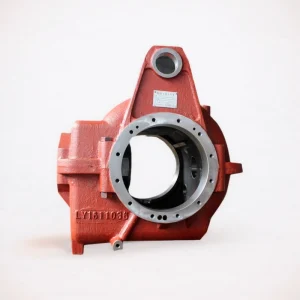

Luoyang Fonyo Heavy Industries Co., Ltd,founded in 1998,is a manufacturer in railway casting parts. Our factory covers an area of 72,600㎡, with more than 300 employees, 32 technicians, including 5 senior engineers, 11 assistant engineers, and 16 technicians. Our production capacity is 30,000 tons per year. Currently, we mainly produce casting, machining, and assembly for locomotive, railcar, high-speed trains, mining equipment, wind power, etc.
