800kW Wind Turbine Gearbox: The Reliable and Efficient Core of Wind Energy Conversion

In the rapid development of the wind energy industry, 800kW wind turbine generators have played a pivotal role in bridging the past and the future. They are still stably operating in many wind farms around the world, continuously delivering clean electricity. As the crucial “power heart” and “speed converter” of such units, the design and performance of 800kW wind turbine gearboxes directly determine the reliability, power generation efficiency, and service life of the entire machine. Their distinctive features embody the core wisdom of wind power transmission technology, mainly reflected in the following aspects:

Robust and reliable structural design: The foundation for withstanding harsh conditions

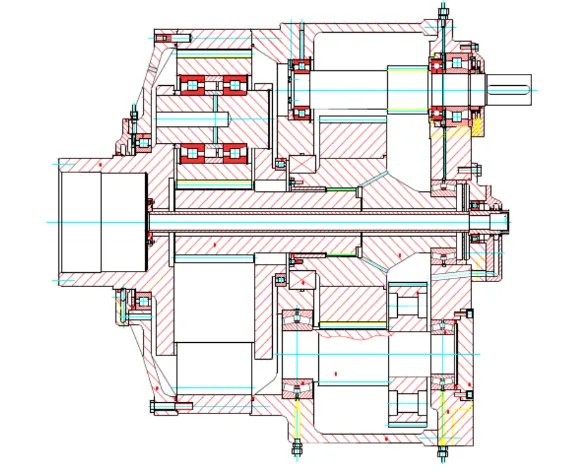

• Power matching and structural optimization: For the specific power level of 800kW, gearboxes typically adopt a mature and well-verified three-stage transmission structure (one planetary stage + two parallel shaft stages or two planetary stages + one parallel shaft stage). This design strikes a delicate balance between meeting the high torque transmission requirements (input torque can reach tens of kilonewton-meters) and achieving a significant speed increase (usually raising the low wind turbine speed of 10-20 rpm to the generator’s required 1500 rpm). Engineers ensure that key components such as the housing, gear shafts, and bearing housings have sufficient strength and rigidity through precise finite element analysis and fatigue life calculations under extreme wind loads, frequent starts and stops, and vibrations. The design life is usually required to be over 20 years.
• Compactness and lightweight: Considering the limitations of nacelle space and tower top loads, 800kW gearboxes must pursue compactness and lightweight while ensuring strength. This is achieved through the extreme optimization of internal gear layout, the application of high-strength lightweight alloy materials (such as high-quality alloy steel forgings), and precise casting or welding housing processes, effectively reducing the overall weight of the machine and the load on the tower.
• Modular concept: Many mature models adopt a modular design philosophy. This means that core subsystems such as planetary stages, parallel shaft stages, and even bearing units can be relatively independently disassembled and replaced during maintenance or upgrades, greatly facilitating on-site maintenance, reducing downtime, and lowering the total life cycle operating costs.

Outstanding gear and bearing technology: The precise art of power transmission

• High-performance gear manufacturing: Gears are the soul of the gearbox. The gears in 800kW gearboxes are generally made of high-purity, high-strength alloy carburized steel (such as 18CrNiMo7-6, 20CrMnMo, etc.) and undergo key processes such as carburizing, quenching, and precision gear grinding. This gives the tooth surface extremely high hardness (HRC 58-62) and good core toughness, ensuring excellent resistance to bending fatigue and pitting. Tooth profiles are carefully modified (such as tooth flank crown modification and tooth tip chamfering), effectively reducing meshing impact, vibration, and noise and improving transmission smoothness and efficiency.
• Careful selection and configuration of key bearings: Bearings bear huge radial and axial loads, and their reliability is crucial. High-capacity, long-life rolling bearings from internationally renowned brands (such as cylindrical roller bearings, tapered roller bearings, and spherical roller bearings) are usually selected. Based on the different positions and loading characteristics of the planet carrier support, low-speed shaft, and high-speed shaft, engineers precisely calculate the bearing selection and configuration schemes (such as back-to-back or face-to-face arrangement) and fully consider the adjustment of preload, lubrication, and heat dissipation requirements. The precision grade (such as P6 or higher) and cleanliness control of the bearings are the basis for ensuring long life.

Precise lubrication and thermal management system: The “lifeline” for sustained operation

• Forced circulation lubrication system: This is the standard configuration for 800kW gearboxes. A complete system, including an oil pump, filter, cooler (air-cooled or water-cooled), pipelines and monitoring sensors, functions like a precise circulatory network, continuously delivering filtered and cooled lubricating oil to all critical friction pairs such as gear meshing points and bearings. This effectively removes the heat generated by friction, lowers the operating temperature, and forms a protective oil film on the gear surfaces, preventing wear and galling.
• High-performance synthetic gear oil: It is crucial to select fully synthetic or semi-synthetic gear oil specifically developed for wind turbine gearboxes. Such oils possess excellent extreme pressure and anti-wear properties, oxidation stability, anti-foaming, anti-emulsification characteristics, and good compatibility with sealing materials. They maintain good fluidity and lubrication performance even in extreme temperatures, such as below -30°C in the northern winter or above +40°C in the southern summer.
• Temperature and oil condition monitoring: Integrated temperature sensors continuously monitor the temperatures of bearings and the oil sump. Oil level sensors and oil condition monitoring (such as online particle counters or regular oil analysis) act as the eyes of preventive maintenance, promptly identifying potential issues like overheating, abnormal oil levels, oil degradation, and increased wear particles.

Advanced sealing and protection design: A barrier against external threats

• Multiple sealing guarantees: Gearboxes are exposed to windblown sand, rain, salt spray (offshore or coastal), and even ice and snow. Therefore, multiple sealing combinations (such as labyrinth seals + lip seals or radial shaft seals) are typically used at the input shaft (connected to the wind turbine main shaft) and output shaft (connected to the generator) to form a reliable sealing barrier. The mating surfaces of the box are also sealed with high-performance sealants to ensure internal cleanliness and prevent oil leakage.
• Breathing and balancing system: Temperature changes during operation cause internal pressure fluctuations. High-quality breathers (with desiccants) balance the internal and external pressures while preventing external moisture and dust from entering, thus preventing oil emulsification or contamination.

Intelligent condition monitoring and diagnostic interfaces: The eyes and ears of operation and maintenance

• Sensor integration: Modern 800kW gearboxes typically have reserved or integrated vibration acceleration sensors (for monitoring gear meshing conditions and bearing damage) and speed sensor interfaces. These sensors act as precise stethoscopes, continuously collecting operational data.
• Compatibility with condition monitoring systems (CMS): The collected data can be transmitted to the central control system of the wind turbine or an independent condition monitoring system. Through professional signal analysis (such as spectral analysis and envelope demodulation), operation and maintenance personnel can identify early signs of gear pitting, broken teeth, and bearing damage, enabling predictive maintenance and avoiding catastrophic failures and unplanned downtime.

Stringent quality control and certification: A guarantee of reliability

• Quality control throughout the process: From raw material inspection upon entry, heat treatment process monitoring, gear processing accuracy inspection (using gear profile and runout inspection instruments, coordinate measuring machines), to full-load and no-load tests of the entire gearbox, cleanliness checks, and sealing tests, each process has strict quality control standards and records.
• Compliance with international and domestic standards: The design and manufacturing process must strictly adhere to relevant international standards (such as ISO, IEC, AGMA, and DNV GL specifications) and domestic standards (such as GB) and usually need to be certified by authoritative certification bodies such as GL, DNV, and TUV to ensure that the product meets the safety and performance requirements of the global market.

Summary:
Although the 800kW wind turbine gearbox is not the largest power rating in the current market, its design concept and technical essence represent a mature and reliable generation in the field of wind power transmission. It is characterized by a robust and reliable structure, precisely manufactured gears and bearings, efficient and intelligent lubrication and thermal management, meticulous and comprehensive sealing and protection, as well as forward-looking condition monitoring interfaces. It silently fulfills the mission of efficiently and stably converting wind energy in harsh natural environments. Its technological accumulation and reliability verification have laid a solid foundation for the development of larger power gearboxes and remains an important reference for evaluating the core value of wind power transmission systems to this day. Understanding these features is of profound practical significance for wind farm owners in equipment selection, operation and maintenance strategy formulation, and assessment of the full life cycle value of assets. It is not merely a combination of metals and gears but also a solid imprint of engineering wisdom in the wave of wind energy.
