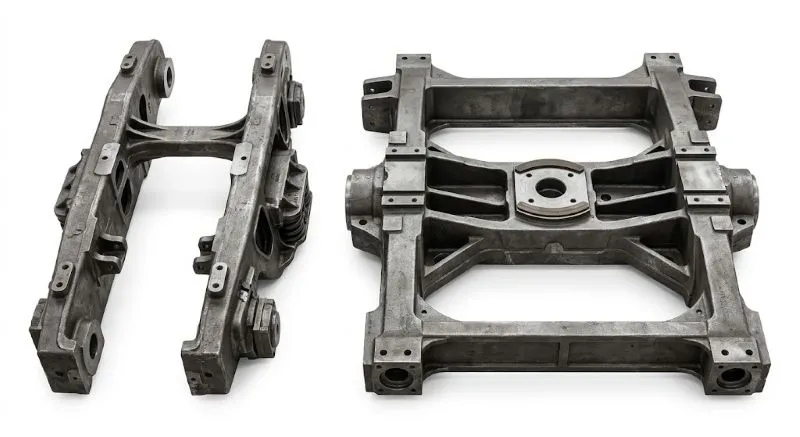

कास्ट स्टील रेलवे बोगी साइड फ्रेम और बोल्स्टर

Railway bogie side frames and bolsters are critical load-bearing components in freight wagon bogies. They support vehicle loads, distribute forces between wheelsets and car bodies, and play a vital role in railway safety, स्थिरता, and service life.

As a manufacturer of railway cast steel components, we produce railway bogie side frames and bolsters for freight wagons, भारी ढुलाई वाली रेलवे, mining railways, and various railway transportation systems. Manufactured according to customer drawings and project requirements, our products are designed to withstand high axle loads, repeated dynamic stresses, and demanding operating environments while maintaining long-term structural integrity.

What Is a Railway Bogie Side Frame?

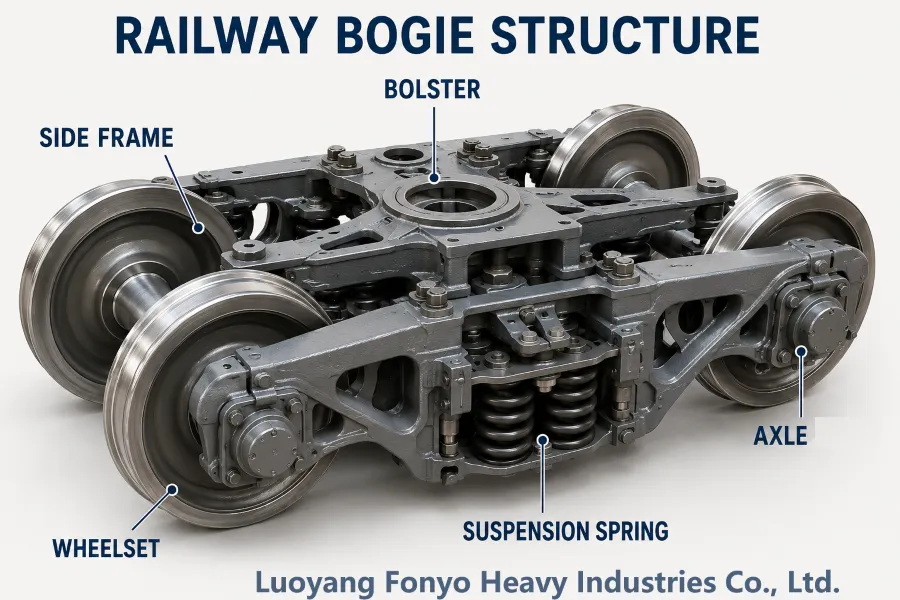

The side frame is the primary structural component located on both sides of a three-piece freight bogie. It supports the wheelsets through pedestal openings and houses the spring system that connects the side frame to the bolster.

ऑपरेशन के दौरान, the side frame transfers vehicle loads from the car body to the wheelsets while resisting vertical, lateral, and longitudinal forces generated by railway movement. Because it is continuously subjected to cyclic loading, the side frame must possess excellent strength, बेरहमी, and fatigue resistance.

Key functions of the side frame include:

• Supporting wheelsets and axle box assemblies
• Carrying vertical loads from the vehicle body
• Transmitting braking and traction forces
• Maintaining bogie structural stability
• Reducing stress concentration under dynamic loading conditions

What Is a Railway Bolster?

The bolster is the central transverse member of a freight bogie. Positioned between the two side frames, it supports the vehicle body through the center plate assembly and spring system.

The bolster distributes vehicle loads evenly across the bogie structure and helps maintain operational stability when the train is negotiating curves, accelerating, or braking.

Key functions of the bolster include:

• Supporting and centering the vehicle body
• Distributing loads to both side frames
• Absorbing operational impacts through the suspension system
• Improving vehicle stability and ride performance
• Transferring longitudinal and lateral forces within the bogie assembly

एक साथ, the side frame and bolster form the structural foundation of the freight wagon bogie.

Key Features of Our Railway Side Frames and Bolsters

High Structural Strength

Our cast steel side frames and bolsters are engineered to withstand heavy axle loads and complex operational forces encountered in freight transportation, mining railways, and heavy-haul applications.

Excellent Fatigue Resistance

Railway bogie components experience millions of load cycles throughout their service life. Through optimized casting design, material selection, और ताप उपचार प्रक्रियाएं, our products achieve reliable long-term fatigue performance.

Heavy-Duty Load Capacity

Designed for demanding railway environments, our bogie castings can be manufactured for various axle load requirements, including heavy-haul freight applications.

Precision Casting Quality

Advanced casting technology ensures consistent dimensional accuracy, structural integrity, and stable mechanical properties throughout production.

Long Service Life

Strict process control and comprehensive quality inspection help maximize operational reliability and reduce maintenance requirements throughout the component lifecycle.

Manufacturing Process of Side Frames and Bolsters

The quality of railway bogie side frames and bolsters begins with a controlled manufacturing process.

Pattern Design and Engineering Review

Production starts with detailed drawing analysis and manufacturing feasibility evaluation. Critical dimensions and load-bearing areas are carefully reviewed to ensure compliance with project requirements.

Vacuum Molding Casting Process

We utilize advanced vacuum molding technology to produce high-quality cast steel railway components. This process provides excellent dimensional consistency, smooth surface quality, and reduced casting defects.

Steel Melting and Pouring

Chemical composition is strictly controlled during steelmaking to ensure the required mechanical properties and material performance.

उष्मा उपचार

Controlled heat treatment processes improve strength, बेरहमी, and fatigue resistance while minimizing residual stress within the casting structure.

मशीनिंग

Critical interfaces and assembly surfaces are machined according to drawing specifications to ensure dimensional accuracy and proper fit during bogie assembly.

Final Inspection

Every component undergoes comprehensive inspection before shipment to verify compliance with customer requirements and applicable standards.

गुणवत्ता नियंत्रण और निरीक्षण

Quality control is a critical part of railway component manufacturing. Our inspection procedures are designed to ensure that every side frame and bolster meets specified performance requirements.

Chemical Composition Analysis

Material composition is verified to ensure compliance with specified steel grades and customer requirements.

Mechanical Property Testing

Mechanical testing includes tensile strength, नम्य होने की क्षमता, elongation, reduction of area, and impact testing where required.

Ultrasonic Testing (केन्द्र शासित प्रदेशों)

Ultrasonic inspection is performed to detect internal discontinuities and ensure casting integrity.

Magnetic Particle Testing (मीट्रिक टन)

Magnetic particle inspection is used to identify surface and near-surface defects in critical areas.

Dimensional Inspection

Critical dimensions are inspected using calibrated measuring equipment to ensure compliance with engineering drawings.

Documentation and Traceability

Production records, material certificates, inspection reports, and testing documentation can be provided according to project requirements.

Technical Specifications of Side Frames and Bolsters

Available Material Grades

Grade B

Grade C

Applications of Side Frames and Bolsters

Freight Wagons

Widely used in bulk cargo transportation, including coal wagons, ore wagons, grain wagons, and container wagons.

Heavy-Haul Railways

Designed to withstand high axle loads and demanding operational conditions in heavy-haul railway systems.

Mining Railways

Suitable for mining and industrial railway applications where durability and reliability are essential.

1520 mm Gauge Railway Systems

Manufactured for railway networks operating on 1520 mm gauge infrastructure.

Industrial Rail Transportation

Applicable to industrial rail systems requiring robust and reliable bogie structural components.

Why Choose Us

लुओयांग फ़ोन्यो हेवी इंडस्ट्रीज कंपनी, लिमिटेड. as a railway component manufacturer, we provide:

• Custom manufacturing based on customer drawings
• Advanced vacuum molding casting technology
• Strict material and process control
• Comprehensive NDT inspection capabilities
• Reliable production quality and traceability
• Flexible manufacturing for international railway projects

Our engineering and production teams work closely with customers to deliver railway castings that meet demanding operational and quality requirements.

Frequently Asked Questions for Side Frames and Bolsters

Can you manufacture according to customer drawings?

हाँ. We regularly manufacture railway side frames and bolsters according to customer-provided drawings and technical specifications.

What inspection methods are available?

We provide chemical analysis, यांत्रिक परीक्षण, अल्ट्रासोनिक परीक्षण (केन्द्र शासित प्रदेशों), magnetic particle testing (मीट्रिक टन), आयामी निरीक्षण, and other customer-required inspections.

What railway applications are these components suitable for?

Our products are commonly used in freight wagons, भारी ढुलाई वाली रेलवे, mining railways, and industrial rail transportation systems.

Can you provide inspection reports?

हाँ. Material certificates, mechanical test reports, NDT reports, and dimensional inspection records can be supplied according to project requirements.

Do you manufacture other railway castings?

हाँ. In addition to side frames and bolsters, we manufacture a variety of custom railway castings and forged components for rolling stock and railway infrastructure applications.
